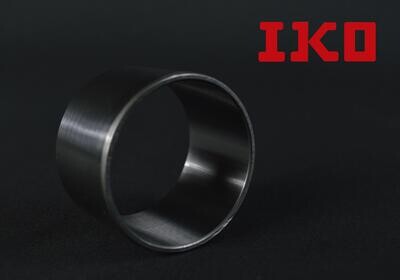

TLA1812Z IKO

[tab name='Specification']
Part Number: TLA 1812 Z

Brand: IKO

Bearing Type: Open End Shell Type Needle Roller Bearing

Dimension(s):
Inside Diameter (Fw) = 18mm
Outside Diameter (D) = 24mm
Length (C) = 12mm

Load Rating(s):
Basic Dynamic Load Rating (kN) = 8.23
Basic Static Load Rating (kN) = 11.5

Allowable Rotational Speed (r/min): 20000

Compatible Inner Ring: IRT 1512

Alternative Part Number(s):
HK 1812, HK1812, FJV-1812, TLA1812 Z
[tab name='More Information']
IKO shell type needle roller bearings are precision-engineered mechanical components designed to facilitate smooth and controlled rotational movement between two surfaces. These bearings feature a thin-walled outer ring and a needle roller and cage assembly, which provides high radial load-carrying capacity in a compact design.

Key features and characteristics of IKO shell type needle roller bearings include:

High Radial Load Capacity: The needle roller and cage assembly within the bearing design allows for a large number of rolling elements, enabling it to handle high radial loads despite its compact size.

Space-Saving Design: IKO shell type needle roller bearings have a thin-walled outer ring, making them particularly suitable for applications with limited space and weight constraints.

Precision Engineering: These bearings are manufactured to strict precision standards, ensuring consistent and reliable performance.

Low Friction: The rolling elements (needle rollers) have a small contact surface with the outer ring, resulting in low friction and smooth rotation.

Lubrication: IKO shell type needle roller bearings are typically pre-lubricated with a special grease to reduce friction and wear, offering a maintenance-free option for certain applications.

Versatility: These bearings find utility in a wide range of applications, including automotive transmissions, power tools, household appliances, industrial machinery, and more.

Easy Installation: The bearings are designed for easy installation, making them suitable for both original equipment manufacturers (OEMs) and aftermarket replacement applications.

Cost-Effective: Due to their simple design and ease of installation, these bearings offer a cost-effective solution for many applications without compromising on performance.

Various Designs: IKO offers a variety of shell type needle roller bearings, including open-end, closed-end, and drawn-cup variations, to meet different application requirements.

IKO shell type needle roller bearings are renowned for their reliability, compactness, and exceptional load-carrying capabilities. Their ability to handle high radial loads in a space-saving design makes them a preferred choice for engineers and manufacturers seeking efficient and durable bearings for a wide range of applications. Whether in automotive systems, power transmission, or industrial machinery, these bearings excel in providing smooth and reliable operation even in demanding environments.
