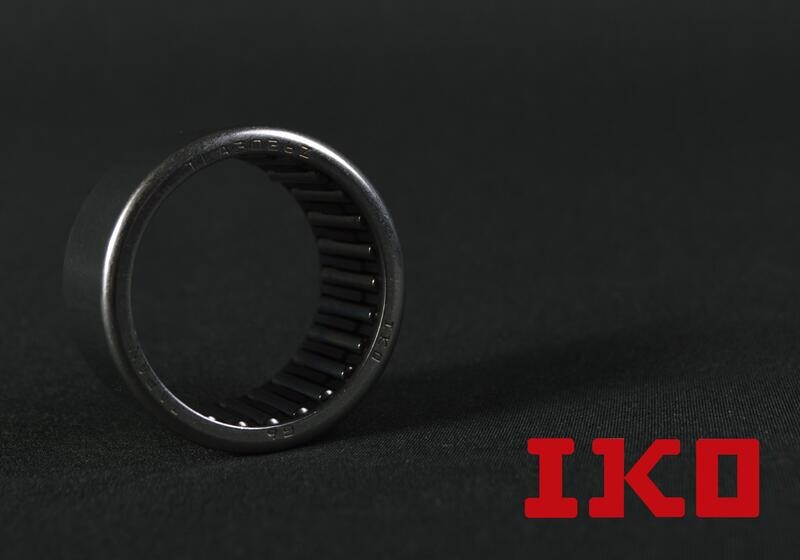

IKO Needle Roller Bearings

What are Needle Roller Bearings?

Needle roller bearings are a type of bearing that uses small cylindrical rollers instead of balls to support the load. Due to this, they have a high load carrying capacity as opposed to ball bearings of equivalent size, making needle bearings ideal for highly dynamic applications. The rollers in these bearings are ground flat and typically cylindrical or slightly tapered, ranging in size from 2mm to 10mm in diameter.

Needle rollers are classified according to their construction, with three main types: drawn cup needle, caged, and full complement. Drawn cup roller clutches have a thin-walled outer ring drawn outward to form a cup. Caged needle roller bearings have a cage that holds the rollers in place, while full complement bearings do not have a cage and are filled with rollers. An advantage of drawn cup needle rollers is that their compact size and low weight makes them ideal for applications where space and weight are critical considerations.

What is a Needle Roller Bearing used for?

Applications for needle bearings include automotive transmissions, power steering systems, pumps, and compressors. These bearings are also used in aerospace applications such as aircraft engines and gearboxes.

Needle roller bearings are available in various designs to meet each application's specific needs. The most common designs are radial, thrust, and combination. Radial needle roller bearings can support loads in both directions, while thrust bearings can only support loads in one direction. Combination needle roller bearings can support both radial and thrust loads.

Aligning Needle Roller Bearings:

Aligning needle roller bearings is essential to maintaining the health of your needle rollers and keeping your machinery running smoothly. There are a few different ways to align needle roller bearings. The most common method is to use shims. Shims are thin pieces of metal that can be placed between the bearing and the surface it is mounted on. By adding or removing shims, you can adjust the alignment of the bearing.

Additionally, you can use laser alignment. This method uses a laser beam to accurately measure the position of the bearing. Once the measurement is taken, the laser beam is used to adjust the alignment of the bearing.

Finally, dial indicator alignment is also an effective way to align roller bearings. This method uses a dial indicator to measure the position of the bearing. Once the measurement is taken, the dial indicator is used to adjust the alignment of the bearing.

FAQs:

What is the difference between Roller Bearings and Needle Bearings?

Needle bearings are designed to support very high radial loads in applications where space constraints eradicate the use of conventional ball or tapered roller bearings. They are typically used in gearboxes, pumps, compressors, and other rotating machinery applications.

Roller bearings, on the other hand, are designed to support very high radial and axial loads in applications such as conveyor belts and crushers. They are typically used in heavy-duty industrial applications such as mining and construction.

The main difference between roller bearings and needle bearings is the type of load they can support. Needle bearings can only support radial loads, while roller bearings can support both radial and axial loads.

Are Needle Roller Bearings better than Ball Bearings?

There are a few key differences between needle and ball bearings that make needle roller bearings better in some situations. First, needle bearings have a higher load-carrying capacity than ball bearings. This is because the rolling elements (needles) in a needle bearing are longer and thinner than the balls in a ball bearing, so they can handle more weight. Second, a needle roller is more compact than a ball bearing, so they can be used in smaller spaces. Finally, a needle roller can operate at higher speeds as opposed to ball bearings that cannot because the needles reduce friction better than the balls.

A needle roller is better than a ball bearing in situations where high loads and high speeds are required.

Do Needle Bearings have Inner Rings and Outer Rings?

Needle bearings typically have two types of rings: inner rings and outer rings. The inner rings are the smaller of the two and is typically made of hardened steel. It fits snugly around the shaft on which the bearing is mounted. The outer ring is larger and is also made of hardened steel; this fits around the housing in which the bearing is installed.

The needles that make up the bearing are positioned between the inner and outer rings. They are held in place by a cage, which is a metal or plastic retainer that keeps the needles spaced evenly apart. The cage also helps to keep the needles from coming into contact with each other, which could damage the bearing.

What are Small Diameter Cylindrical Rollers?

Cylindrical rollers are a type of rolling element bearing that consists of a cylindrical outer ring and a set of inner rings (called "rollers"), which are held together by four rows of balls. The inner and outer rings have smooth, rounded surfaces that allow the rollers to rotate freely.

Small diameter cylindrical rollers are a specialized type of cylindrical roller designed for use in applications where space is limited. These rollers are typically smaller in diameter than standard cylindrical rollers, and they often have a shorter length as well. This makes them ideal for use in compact applications such as automotive transmissions and small electric motors. Despite their smaller size, small diameter cylindrical rollers are still capable of providing high levels of performance and durability.

What are Cam Followers?

Cam follower bearings are a specialized roller, or needle bearing, designed to follow cams or tracks in a wide range of motion systems.
