S71916 ACDGA/P4A
+2

S71916 ACDGA/P4A

Home/Store/Bearings: Efficiency & Performance/Angular Contact Ball Bearings
SKU Z-S71916ACDGA/P4A
£528.90
In stock
1
Product Details
Weight: 0.38 kg

Part Number: S71916 ACDGA/P4A


Brand: SKF

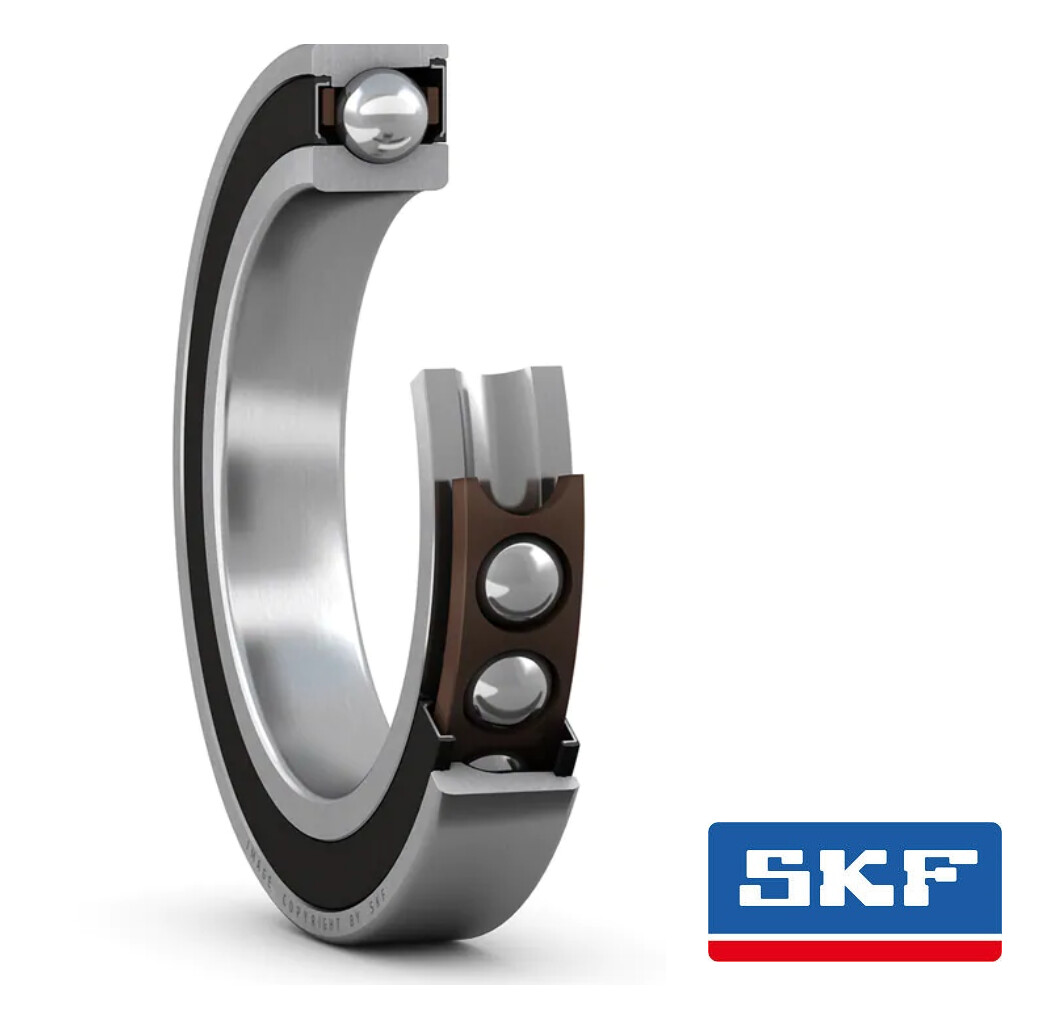

Bearing Type: Super-precision, high-capacity, universally matchable single row angular contact ball bearing with seals.


Dimension(s):

Inside Diameter (d) = 80mm

Outside Diameter (D) = 110mm

Width (B) = 16mm

Shoulder Diameter of Inner Ring - Large Side Face (d₁) = 89.2mm

Shoulder Diameter of Inner Ring - Small Side Face (d₂) = 89.2mm

Shoulder Diameter of Outer Ring - Large Side Face (D₁) = 100.8mm

Shoulder Diameter of Outer Ring - Small Side Face (D₂) = 103.74

Chamfer (r₁,₂ min) = 1mm

Chamfer (r₃,₄ min) = 0.3mm

Distance from Side Face to Pressure Point (a) = 30.2mm


Load Rating(s):

Basic Dynamic Load Rating (kN) = 34.5

Basic Static Load Rating (kN) = 36.5

Fatigue Load Limit - Pᵤ (kN) = 1.56


Angle of Contact (a) = 25°

»»»»»»» Show More Details »»»»»»»
