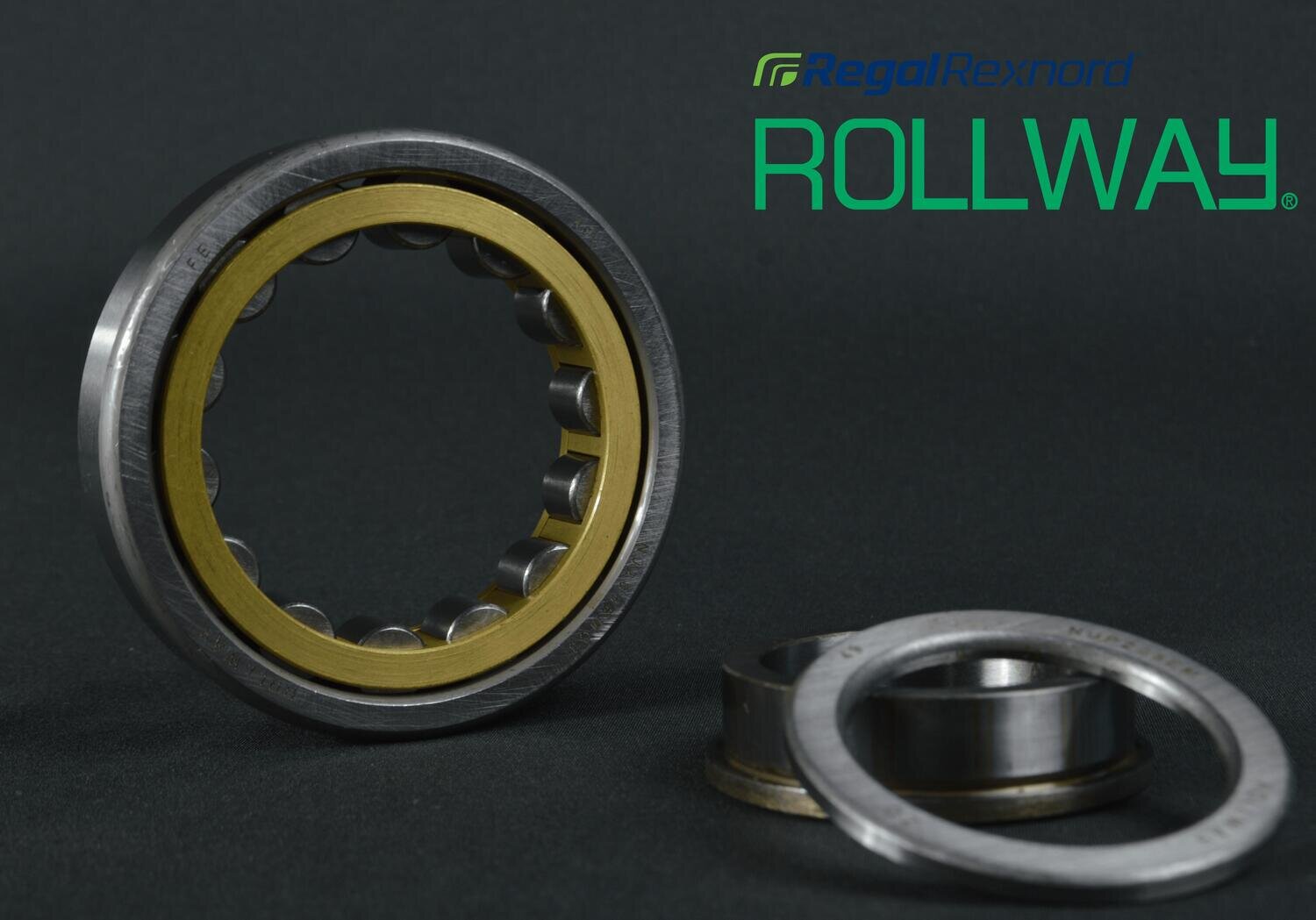

NUP228EM Rollway
SKU CYLINDRICAL-00403
£457.31
In stock
1
Product Details
Weight: 8.55 kg
[tab name='Specification']
Part Number: NUP228EM
Brand: Rollway
Bearing Type: Single Row Cylindrical Roller Bearing - (2 integral flanges on the outer ring / 1 integral flange and 1 non-integral flange, i.e. a loose flange ring on the inner ring)
Dimension(s):
Inside Diameter (d) = 140mm
Outside Diameter (D) = 250mm
Width (B) = 42mm
Outer Ring Internal Diameter (E) = Not Applicable
Inner Ring External Diameter (F) = 169mm
Load Rating(s):
Basic Dynamic Load Rating (kN) = 372
Basic Static Load Rating (kN) = 479
Speed Limitation(s):
Allowable Rotational Speed - Grease Lubrication (r/min) = 2200
Allowable Rotational Speed - Oil Lubrication (r/min) = 2800
Lip Arrangement: Fixed Outer Ring and Loose Inner Ring - Inner Ring Flanged on One Side + Separable Flange (removable in a single direction)
Clearance: CN (Normal)
Cage Material: Brass
Maximum Operating Temperature: 120°C
[tab name='More Information']
The NUP type cylindrical roller bearing is a specific type of roller bearing commonly used in applications where axial displacement of the shaft relative to the housing is required. It belongs to the family of cylindrical roller bearings known for their ability to provide high radial load capacity and moderate axial load capacity.
The NUP designation stands for "locating unit with a separable inner ring," indicating that this bearing design incorporates a separable inner ring that can be mounted independently from the outer ring. This feature allows for easier installation, disassembly, and maintenance of the bearing.
NUP type cylindrical roller bearings consist of an inner ring (flanged one side plus a separable flange on the other side), an outer ring, cylindrical rollers, and a cage assembly. The cylindrical rollers are arranged in parallel between the inner and outer rings and guided by the cage, which maintains their proper spacing and prevents excessive friction between the rollers.
NUP type cylindrical roller bearings are commonly used in applications such as gearboxes, machine tool spindles, pumps, and traction motors, where precise axial positioning of the shaft is required. The separable design facilitates easy mounting and dismounting, simplifying maintenance procedures, and reducing downtime.
These bearings offer high radial load carrying capacity and can accommodate moderate axial loads in one direction. They are designed to operate at high speeds with low friction and provide reliable and smooth operation.
In summary, the NUP type cylindrical roller bearing provides excellent radial load capacity, moderate axial load capacity, and axial guidance in one direction. Its separable design enhances ease of installation and maintenance, making it a versatile choice for applications that demand precise axial positioning.
[tab name='Shipping']
United Kingdom
Providing your required item is in-stock at one of our UK branches, your goods will be shipped on the same day if ordered before 16:00 (BST).
Most of our items are held in-stock at one of our UK based branches, however some items or larger quantities may be subject to a longer preparation or delivery time. If this extended delivery time applies to your product, we will notify you as soon as possible. You will then have the opportunity to request a full refund if your order is no longer required.
Orders exceeding £100 value will qualify for free shipping (UK Mainland Only).
International
Providing your required item is in-stock at one of our UK branches, your goods will be shipped on the same day if ordered before 13:00 (BST).
Most of our items are held in-stock at one of our UK based branches, however some items or larger quantities may be subject to a longer preparation or delivery time. If this extended delivery time applies to your product, we will notify you as soon as possible. You will then have the opportunity to request a full refund if your order is no longer required.
Shipping costs are calculated at checkout - just add your required items to the basket and fill in your delivery details to view the price for your shipment.
We currently export bearings, power transmission and linear motion products to over 100 countries worldwide, offering express shipments for deliveries in as little as 3 days.
[tab name='Returns']
Returns are accepted within a 14-day period, and goods will only be accepted if the following criteria is met:
• Goods are still in the original, undamaged packaging
• The item has not been used, fitted or modified
• You have notified us no later than 14 days since receipt of goods
Any products or quantities that have been sourced specifically to complete your order will be exempt from our standard returns policy, and will be subject to handling charges. The rate of the handling charge is dependent on our suppliers’ current rates.
Products that are ordered in error can also be returned, however the incurred costs for shipping will not be refunded.
Once inspection of goods has been carried out, refunds will be made to the credit / debit card or PayPal account that was used to make the initial purchase.
If any more information is required, please feel free to call or email our customer support team, and we’d be happy to assist.
