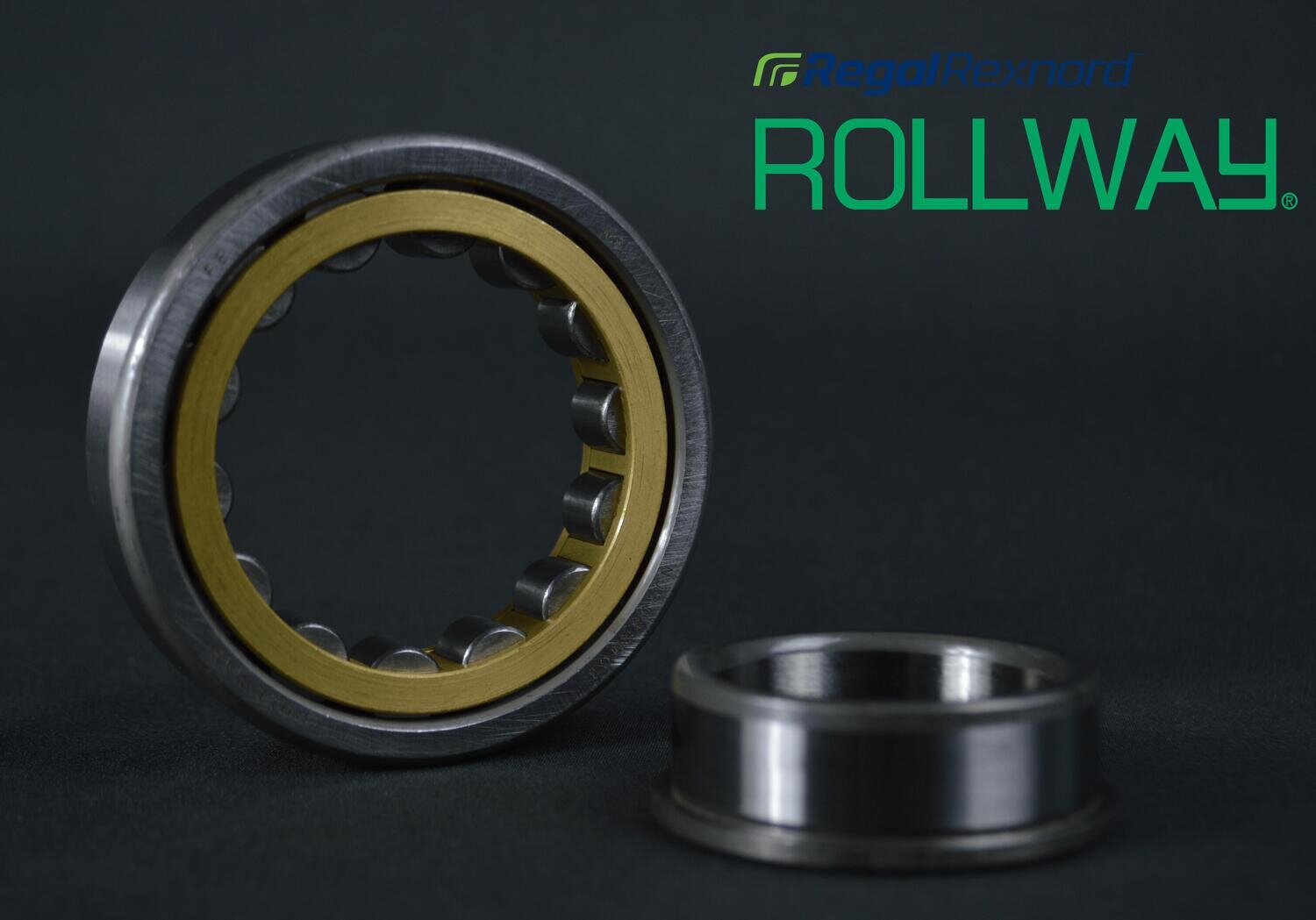

NJ317EMC4 Rollway
SKU CYLINDRICAL-00149
£146.05
In stock
1
Product Details
Weight: 4.64 kg
[tab name='Specification']
Part Number: NJ317EMC4
Brand: Rollway
Bearing Type: Single Row Cylindrical Roller Bearing - (2 integral flanges on the outer ring / 1 on the inner ring)
Dimension(s):
Inside Diameter (d) = 85mm
Outside Diameter (D) = 180mm
Width (B) = 41mm
Outer Ring Internal Diameter (E) = Not Applicable
Inner Ring External Diameter (F) = 108mm
Load Rating(s):
Basic Dynamic Load Rating (kN) = 288
Basic Static Load Rating (kN) = 325
Speed Limitation(s):
Allowable Rotational Speed - Grease Lubrication (r/min) = 3400
Allowable Rotational Speed - Oil Lubrication (r/min) = 4000
Lip Arrangement: Fixed Outer Ring and Loose Inner Ring - Inner Ring Flanged on One Side (removable in a single direction)
Clearance: C4 (Greater than C3)
Cage Material: Brass
Maximum Operating Temperature: 120°C
[tab name='More Information']
The NJ type cylindrical roller bearing is a specific type of roller bearing commonly used in applications where high radial load capacity and moderate axial load capacity are required. It belongs to the family of cylindrical roller bearings, known for their ability to support heavy radial loads and moderate axial loads.
The NJ designation stands for "locating unit with a separable inner ring," indicating that this bearing design incorporates a separable inner ring that can be mounted independently from the outer ring. This feature allows for easier installation, disassembly, and maintenance of the bearing.
NJ type cylindrical roller bearings consist of an inner ring (single flange on one side), an outer ring, cylindrical rollers, and a cage assembly. The cylindrical rollers are arranged in parallel between the inner and outer rings and guided by the cage, which maintains their proper spacing and prevents excessive friction between the rollers.
NJ type cylindrical roller bearings are commonly used in applications such as electric motors, pumps, gearboxes, and machine tools, where high radial loads and moderate axial loads are present. The separable design facilitates easy mounting and dismounting, simplifying maintenance procedures, and reducing downtime.
These bearings offer high radial load carrying capacity and can accommodate moderate axial loads in both directions. They are designed to operate at high speeds with low friction and provide reliable and smooth operation.
In summary, the NJ type cylindrical roller bearing provides excellent radial load capacity, moderate axial load capacity, and axial guidance in both directions. Its separable design enhances ease of installation and maintenance, making it a versatile choice for applications that require precise axial positioning and support heavy radial loads.
[tab name='Shipping']
United Kingdom
Providing your required item is in-stock at one of our UK branches, your goods will be shipped on the same day if ordered before 16:00 (BST).
Most of our items are held in-stock at one of our UK based branches, however some items or larger quantities may be subject to a longer preparation or delivery time. If this extended delivery time applies to your product, we will notify you as soon as possible. You will then have the opportunity to request a full refund if your order is no longer required.
Orders exceeding £100 value will qualify for free shipping (UK Mainland Only).
International
Providing your required item is in-stock at one of our UK branches, your goods will be shipped on the same day if ordered before 13:00 (BST).
Most of our items are held in-stock at one of our UK based branches, however some items or larger quantities may be subject to a longer preparation or delivery time. If this extended delivery time applies to your product, we will notify you as soon as possible. You will then have the opportunity to request a full refund if your order is no longer required.
Shipping costs are calculated at checkout - just add your required items to the basket and fill in your delivery details to view the price for your shipment.
We currently export bearings, power transmission and linear motion products to over 100 countries worldwide, offering express shipments for deliveries in as little as 3 days.
[tab name='Returns']
Returns are accepted within a 14-day period, and goods will only be accepted if the following criteria is met:
• Goods are still in the original, undamaged packaging
• The item has not been used, fitted or modified
• You have notified us no later than 14 days since receipt of goods
Any products or quantities that have been sourced specifically to complete your order will be exempt from our standard returns policy, and will be subject to handling charges. The rate of the handling charge is dependent on our suppliers’ current rates.
Products that are ordered in error can also be returned, however the incurred costs for shipping will not be refunded.
Once inspection of goods has been carried out, refunds will be made to the credit / debit card or PayPal account that was used to make the initial purchase.
If any more information is required, please feel free to call or email our customer support team, and we’d be happy to assist.
