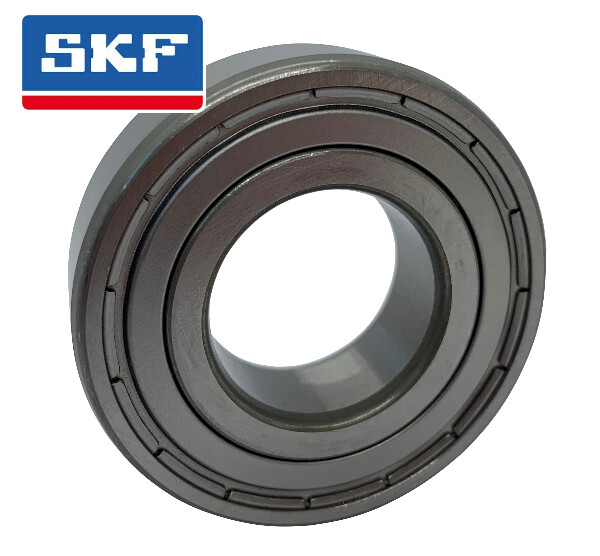

EEB3-2Z SKF

Part Number: EEB3-2Z

Brand: SKF

Bearing Type: Deep groove ball bearing with metal shields.

Dimension(s):
Inside Diameter (d) = 0.375" - (3/8")
Outside Diameter (D) = 0.875" - (7/8")
Width (B) = 0.28125" - (7/32")
Radius (r₁,r₂ min) = 0.4 mm

Load Rating(s):
Basic Dynamic Load Rating - kN = 3.32
Basic Static Load Rating - kN = 1.4
Fatigue Load Limit - kN (Pᵤ) = 0.06

Abutment and Fillet Dimension(s):
dₐ min = 11.8 mm
dₐ max = 12.6 mm
Dₐ max = 19.7 mm
rₐ max = 0.4 mm

Clearance: CN (Normal)

Speed Limitation(s):
Reference Speed (r/min) = 67000
Limiting Speed (r/min) = 34000

More Information:
Deep groove ball bearings are probably the most popular and widely used type if bearing in the world. This 2Z type bearing is manufactured with metal shields, pre-packed with grease lubricant. The shielded type deep groove ball bearings are generally used in applications where they can be introduced to dust or dirt such as pallet truck wheels, conveyors and skateboards. Unlike the 2RS sealed bearings, the metal shield doesn’t make contact with the inner ring, therefore the starting and running toque value isn’t affected. This deep groove ball bearing EE3B-2Z SKF has an inside diameter of 0.375", an outside diameter of 0.875", and a width of 0.28125".
