CRBS808C1 IKO

[tab name='Specification']
Part Number: CRBS808 C1

Brand: IKO

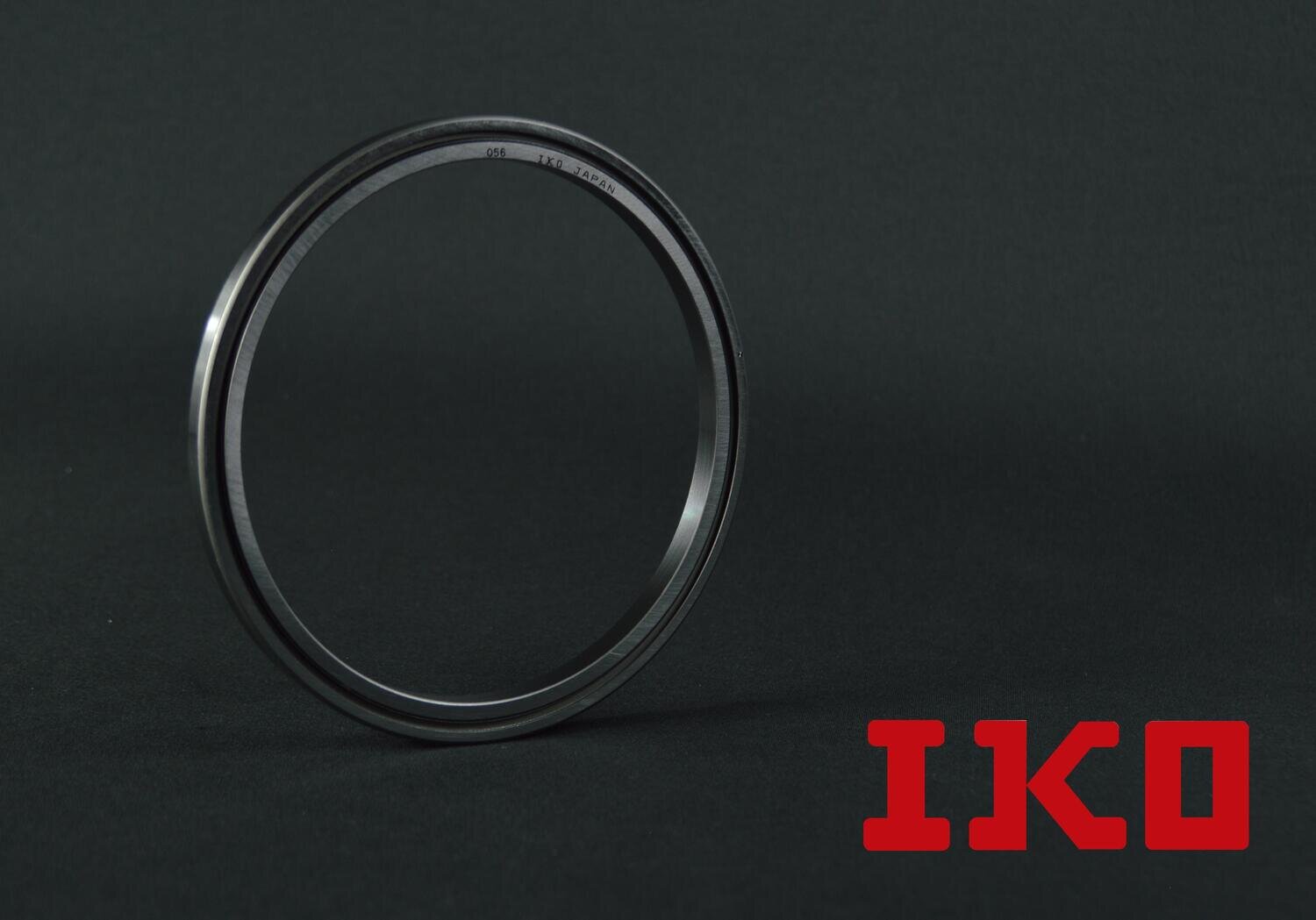

Bearing Type: Slim Type Crossed Roller Bearing

Dimension(s):
Inside Diameter (d) = 80mm
Outside Diameter (D) = 96mm
Width (B) = 8mm
Radius (r) = 0.4mm
Mounting Dimension (dₐ) = 84mm
Mounting Dimension (Dₐ) = 91mm

Load Rating(s):
Basic Dynamic Load Rating (N) = 6130
Basic Static Load Rating (N) = 9590

Clearance:
Clearance Type = C1
Clearance value min (µ m) = 0
Clearance Value max (µ m) = +15

Operating Temperature: -20°c to +120°c
[tab name='More Information']
CRBS Slim Type Crossed Roller Bearings are highly compact and lightweight mechanical components designed to provide exceptional rotational accuracy and load-bearing capabilities in a space-constrained environment. These bearings are part of the Crossed Roller Bearings family, known for their unique structure that allows for simultaneous support of radial, axial, and moment loads.

The CRBS Slim Type Crossed Roller Bearings feature a thin and streamlined design, making them ideal for applications where space optimisation is crucial. They consist of an inner and outer ring with a cage holding a precise arrangement of cylindrical rollers that are crossed at a 90-degree angle. This design allows for efficient load distribution, resulting in enhanced load-carrying capacity and reduced frictional losses.

Due to their slim profile, CRBS Slim Type Crossed Roller Bearings are particularly suitable for applications where installation space is limited or weight reduction is desired. Their compact design not only saves space but also reduces the overall weight of the system, making them suitable for applications where low inertia and high precision are essential.

These bearings are manufactured to stringent quality standards, ensuring consistent performance and long service life. They are constructed from high-quality materials, such as chrome steel or stainless steel, which offer excellent durability and corrosion resistance. The precise machining and assembly processes involved in their production guarantee excellent rotational accuracy and smooth operation.

CRBS Slim Type Crossed Roller Bearings find applications in a wide range of industries, including robotics, industrial automation, semiconductor manufacturing, medical devices, and precision machinery. They are commonly used in applications such as robot joints, rotating tables, indexing mechanisms, and optical devices, where space efficiency and high precision are critical.

In summary, CRBS Slim Type Crossed Roller Bearings offer exceptional rotational accuracy and load-bearing capabilities in a slim and compact form factor. Their lightweight design, combined with high rigidity and durability, make them an ideal choice for applications with limited space or weight constraints. These bearings provide reliable and precise motion control, contributing to the overall performance and efficiency of various mechanical systems.
