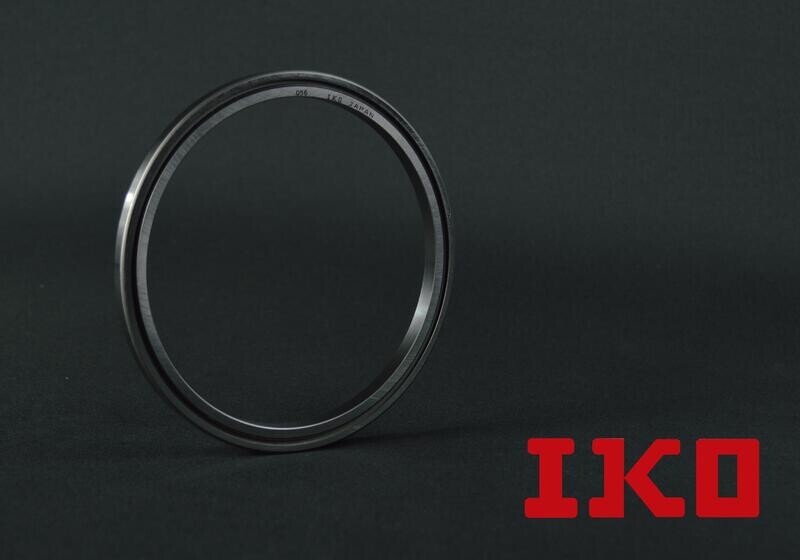

What Are Slim Type Crossed Roller Bearings?

Slim Type Crossed Roller Bearings are a type of rotary bearing that utilizes cylindrical rollers arranged in a crossed pattern between two raceways. This unique design allows the bearing to carry high radial loads, axial loads, and moments simultaneously, providing excellent performance in compact spaces. Slim Type Crossed Roller Bearings are particularly valued for their thin and lightweight design, making them an ideal solution for applications where space constraints are a significant consideration. At Tapered Roller Bearings, we offer a wide selection of these bearings that are engineered for precision, durability, and reliability in a variety of industries.

What Are Slim Type Crossed Roller Bearings?

Slim Type Crossed Roller Bearings are characterized by their thin and compact design, with rollers arranged perpendicularly in a crisscross pattern between two raceways. Unlike traditional cylindrical bearings, these bearings can support high loads in a small radial space. The roller configuration allows them to handle radial, axial, and moment loads simultaneously, making them suitable for applications that require a high degree of precision and stability. Additionally, these bearings are designed to reduce friction, ensuring smoother operation and enhanced longevity.

The slim profile of these bearings makes them perfect for applications that require compactness without sacrificing load-bearing performance. They are often used in high-precision equipment where space and weight restrictions are a concern but high load capacity and accuracy are still crucial.

Benefits of Slim Type Crossed Roller Bearings

1. Compact Design for Space-Constrained Applications The primary benefit of these bearings is their slim, space-saving design. These bearings are engineered to provide high performance in tight spaces, making them ideal for compact machinery and systems. Their ability to maintain high load capacity in smaller dimensions makes them a go-to solution for applications where space is limited.
2. High Load Capacity Despite their slim profile, these bearings can handle significant radial, axial, and moment loads. This makes them a reliable choice for demanding applications that require the ability to withstand heavy loads without compromising on performance. Their unique design distributes the load efficiently, ensuring optimal performance even under high stress.
3. Precision and Rigidity Slim Type Crossed Roller Bearings are known for their high rigidity and precision. They are designed to provide smooth and accurate motion in applications that require precise control and stability. The reduced friction resulting from the crossed roller arrangement minimizes wear and tear, contributing to longer service life and greater operational efficiency.
4. Reduced Friction and Heat Generation The innovative design of Slim Type Crossed Roller Bearings helps minimize friction between the rollers and raceways. This reduction in friction leads to lower heat generation and more efficient operation, which is essential for maintaining the longevity and reliability of the bearing system. The result is smoother performance and reduced maintenance requirements over time.
5. Durability and Long-Lasting Performance Slim Type Crossed Roller Bearings are built to last, with robust construction that can withstand the rigors of demanding applications. The bearings are made with high-quality materials that ensure durability even in harsh environments. With proper maintenance, these bearings offer long-lasting performance, reducing the need for frequent replacements and keeping maintenance costs down.
6. Minimal Maintenance Due to their efficient design and low friction, these bearings require minimal maintenance. The sealed bearings keep contaminants out, reducing wear and tear over time. This makes them an excellent choice for industries that need reliable components with reduced downtime.

Common Applications and Industries for Slim Type Crossed Roller Bearings

1. Robotics The bearings are widely used in robotics, particularly in robotic arms, joints, and precision movements. The high precision and compact size of these bearings make them ideal for robotic systems that require smooth and controlled motion in tight spaces.
2. Medical Equipment In the medical field, Slim Type Crossed Roller Bearings are used in high-precision instruments, such as MRI machines, surgical robots, and diagnostic devices. These bearings' ability to operate with minimal friction and their precision make them critical components in medical technologies that require extreme accuracy and reliability.
3. Optical Instruments Slim Type Crossed Roller Bearings are frequently used in optical instruments such as telescopes, cameras, and microscopes. In these applications, precision is crucial, and the compact design of these bearings ensures smooth rotational motion without compromising the quality of the optical system.
4. Machine Tools Crossed roller bearings play a significant role in machine tools, including CNC machines, lathes, and milling machines. Slim Type Crossed Roller Bearings are used to support precise, heavy-duty operations in a compact form, contributing to improved efficiency and performance in industrial manufacturing.
5. Semiconductor Manufacturing The semiconductor industry requires high-precision machinery that operates with minimal vibration and high load capacity. These bearings are used in wafer-handling equipment, robotic arms, and other semiconductor manufacturing systems where space is limited but performance cannot be compromised.
6. Aerospace In aerospace applications, where reliability and precision are paramount, Slim Type Crossed Roller Bearings are used in components like control surfaces, satellite systems, and navigation equipment. The bearings' ability to handle both radial and axial loads while maintaining precision and performance makes them indispensable in the aerospace industry.
7. Precision Measuring Instruments These bearings are also commonly found in precision measuring instruments, such as coordinate measuring machines (CMM) and laser equipment. The bearings' compact size and precise movement capabilities make them ideal for highly accurate measurement applications.
8. Defense and Military Military and defense equipment often requires bearings that can function reliably in harsh environments while maintaining high performance. These bearings are used in various defense applications, including targeting systems, radar equipment, and weaponry, where precise movements are critical for mission success.

Slim Type Crossed Roller Bearings at Tapered Roller Bearings

At Tapered Roller Bearings, we specialize in providing high-quality Slim Type Crossed Roller Bearings that are designed for high-performance applications in various industries. Our bearings are made from durable materials that ensure long-lasting, reliable service, even under challenging conditions. Whether you need bearings for robotics, medical devices, or aerospace applications, we offer a wide range of options to meet your needs.

Our team of experts is always available to help you find the ideal Slim Type Crossed Roller Bearings for your specific application. With a commitment to quality and customer satisfaction, Tapered Roller Bearings ensures that you get the best products backed by reliable service and technical support.

Conclusion

These bearings provide a unique combination of high load capacity, precision, and compact design, making them a versatile and reliable choice for a wide range of industries. Whether used in robotics, medical equipment, or aerospace applications, these bearings deliver exceptional performance, reduced friction, and long-lasting durability. Explore our selection of IKO Slim Type Crossed Roller Bearings at Tapered Roller Bearings to find the perfect solution for your specific requirements.
