Angular Contact Ball Bearings
What is an Angular Contact Ball Bearing?
An angular contact ball bearing is a type of rolling element bearing that is designed to support both axial (thrust) and radial loads simultaneously. It consists of an inner and outer ring with a set of balls held in place by a cage. The balls are positioned at an angle with respect to the bearing axis, allowing them to accommodate axial and radial forces.
The contact angle between the balls and the raceways in an angular contact ball bearing determines its load-carrying capacity and the distribution of the forces. These bearings are designed to have a specific contact angle, typically ranging from 15 degrees to 40 degrees, depending on the application requirements.
Angular contact ball bearings are precision-engineered to provide high-speed operation, low friction, and high rigidity. By optimizing the contact angle and the bearing design, they can handle both thrust and radial loads efficiently while maintaining proper alignment. This makes them suitable for applications that involve combined axial and radial loads, such as machine tools, gearboxes, pumps, automotive applications, and industrial machinery.
There are different configurations of angular contact ball bearings, including single-row, double-row, and four-point contact designs. Single-row bearings can accommodate axial loads in one direction, while double-row bearings can handle axial loads in both directions. Four-point contact bearings have a unique design that allows them to withstand radial, axial, and moment loads simultaneously.
Angular contact ball bearings are widely used in various industries due to their versatility and performance characteristics. They offer high precision, excellent rotational accuracy, and the ability to operate at high speeds. These bearings are crucial in ensuring smooth and reliable operation of machinery and equipment that experience both axial and radial loads.
What are the benefits to using an Angular Contact Ball Bearing?
There are several benefits to using angular contact ball bearings in various mechanical applications:
- Combined Axial and Radial Load Capacity: Angular contact ball bearings are specifically designed to handle both axial (thrust) and radial loads simultaneously. This capability allows them to support loads in multiple directions, making them ideal for applications where there is a combination of thrust and radial forces.
- High-Speed Operation: Angular contact ball bearings are designed for high-speed applications. Their optimized contact angle and precision manufacturing minimize friction and reduce heat generation, enabling them to operate at high rotational speeds without compromising performance.
- Rigidity and Accuracy: These bearings offer high rigidity, which helps maintain proper alignment and reduces deflection under load. They provide accurate positioning and precise motion control, making them suitable for applications that require precise rotational accuracy and positioning, such as machine tools and robotics.
- Versatility: Angular contact ball bearings come in various configurations, including single-row, double-row, and four-point contact designs, offering versatility to suit different application requirements. The availability of different contact angles and cage designs further enhances their versatility.
- Durability and Longevity: Angular contact ball bearings are manufactured with high-quality materials and undergo rigorous quality control processes. This ensures their durability, longevity, and resistance to wear and tear, even in demanding operating conditions.
- Compact Design: Angular contact ball bearings have a compact design, which allows for space-saving installation in machinery and equipment. Their small footprint makes them suitable for applications where size constraints are a consideration.
- Energy Efficiency: The optimized design and low-friction characteristics of angular contact ball bearings contribute to energy efficiency. By minimizing frictional losses, these bearings help reduce power consumption and improve overall energy efficiency in machines and systems.
- Wide Range of Applications: Angular contact ball bearings find applications in various industries, including machine tools, automotive systems, aerospace equipment, industrial machinery, and more. Their versatility and performance characteristics make them suitable for a wide range of applications that require reliable and precise load support.
Overall, the benefits of using angular contact ball bearings include their ability to handle combined axial and radial loads, high-speed operation, rigidity, accuracy, versatility, durability, compact design, energy efficiency, and suitability for diverse applications.
What are Angular Contact Ball Bearings Used For?
Angular contact ball bearings are used in a wide range of mechanical applications that require the ability to support both axial (thrust) and radial loads simultaneously. Some common uses of angular contact ball bearings include:
- Machine Tools: Angular contact ball bearings are widely employed in machine tool applications, such as milling machines, lathes, and grinding machines. They support the high loads and precise positioning required in these applications, ensuring accurate and efficient machining operations.
- Automotive Systems: Angular contact ball bearings are used in automotive applications, including wheel bearings, transmission systems, and drivetrain components. They provide reliable support for radial and axial loads, contributing to smooth and efficient vehicle operation.
- Robotics: Angular contact ball bearings play a critical role in robotic systems, where precise movement control, high-speed operation, and load-bearing capacity are essential. They are used in robot joints, arms, and other mechanisms to ensure accurate motion and stability.
- Aerospace Equipment: Angular contact ball bearings are utilized in aerospace applications, including aircraft landing gear, engine components, and control systems. They withstand the high loads and dynamic forces encountered in aerospace environments while maintaining precise positioning and reliability.
- Industrial Machinery: Angular contact ball bearings are found in various industrial machinery, such as pumps, compressors, turbines, and gearboxes. They enable smooth rotation, efficient power transmission, and reliable operation under heavy loads.
- Agricultural Machinery: Angular contact ball bearings are used in agricultural equipment, such as tractors, harvesters, and sprayers. They provide support for the rotating shafts, ensuring reliable performance in demanding agricultural conditions.
- Electric Motors: Angular contact ball bearings are employed in electric motors, both for industrial and household applications. They enable smooth rotation, reduce friction, and provide support for both axial and radial loads, contributing to the efficiency and longevity of the motor.
- Power Tools: Angular contact ball bearings are used in power tools, such as drills, grinders, and saws. They ensure smooth operation, precise control, and the ability to handle varying loads during tool operation.
These are just a few examples of the many applications where angular contact ball bearings are utilized. Their ability to handle combined axial and radial loads, high-speed operation, and precise motion control make them valuable components in numerous industries and mechanical systems.

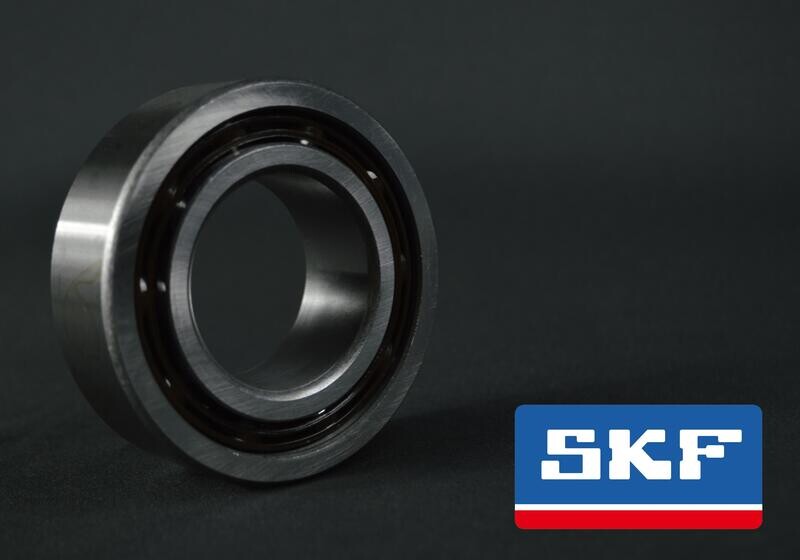

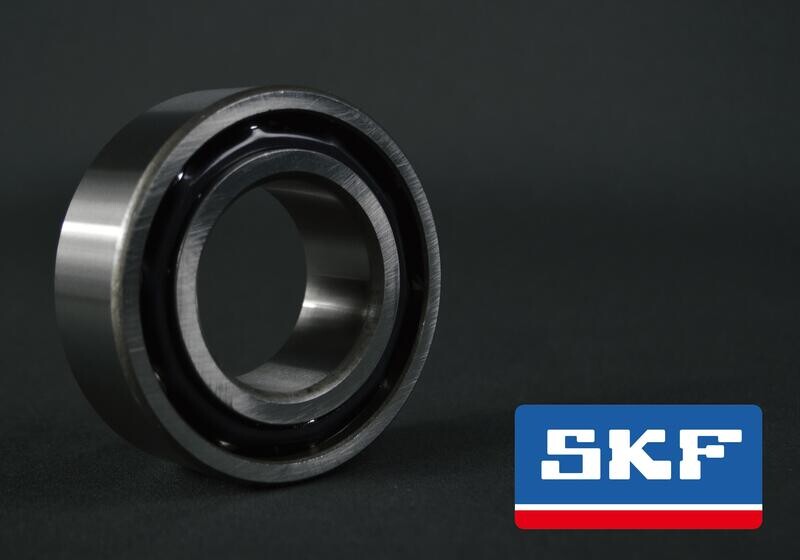

Discover high-quality angular contact ball bearings from SKF & KOYO ideal for handling both radial and axial loads. Available in single or double row designs, our bearings are engineered for precision, durability, and efficiency in a wide range of applications.
