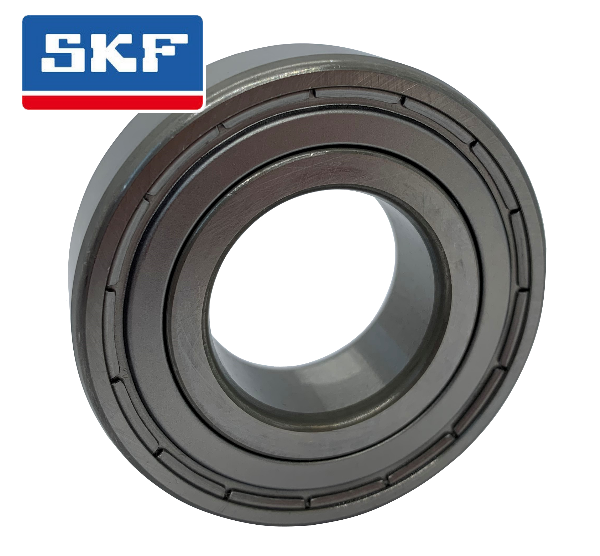

6313-2Z SKF
SKU PLUSSKFBBCN-012
£75.08
If this product is showing "Price On Application" please call 0333 321 4908 or email sales@taperedrollerbearings.co.uk with your enquiry! Most of our items are held in stock at one of our UK based depots, however some items may be subject to longer deliveries. If the longer delivery applies to your item, we will notify you as soon as possible.
In stock
1
Product Details
Part Number: 6313-2Z
Brand: SKF
Bearing Type: Deep groove ball bearing with metal shields.
Dimension(s):
Inside Diameter (d) = 65 mm
Outside Diameter (D) = 140 mm
Width (B) = 33 mm
Radius (r₁,r₂ min) = 2.1 mm
Load Rating(s):
Basic Dynamic Load Rating - kN = 97.5
Basic Static Load Rating - kN = 60
Fatigue Load Limit - kN (Pᵤ) = 2.5
Abutment and Fillet Dimension(s):
dₐ min = 77 mm
dₐ max = 88 mm
Dₐ max = 128 mm
rₐ max = 2 mm
Clearance: CN (Normal)
Speed Limitation(s):
Reference Speed (r/min) = 10000
Limiting Speed (r/min) = 5300
Calculation Factors:
Mean Radial Load - kN (Kr) = 0.03
Payload Factor (f₀) = 13
Alternative Part Number(s):
6313 2Z, 6313 ZZ, 6313-ZZ
More Information:
Deep groove ball bearings are probably the most popular and widely used type if bearing in the world. This large diameter 2Z type bearing is manufactured with metal shields, pre-packed with grease lubricant. The shielded type deep groove ball bearings are generally used in applications where they can be introduced to dust or dirt such as large motors, extruders and pumps. Unlike the 2RS sealed bearings, the metal shield doesn’t make contact with the inner ring, therefore the starting and running toque value isn’t affected. This deep groove ball bearing 6313-2Z SKF has an inside diameter of 65 mm, an outside diameter of 140 mm, and a width of 33 mm.
Brand: SKF
Bearing Type: Deep groove ball bearing with metal shields.
Dimension(s):
Inside Diameter (d) = 65 mm
Outside Diameter (D) = 140 mm
Width (B) = 33 mm
Radius (r₁,r₂ min) = 2.1 mm
Load Rating(s):
Basic Dynamic Load Rating - kN = 97.5
Basic Static Load Rating - kN = 60
Fatigue Load Limit - kN (Pᵤ) = 2.5
Abutment and Fillet Dimension(s):
dₐ min = 77 mm
dₐ max = 88 mm
Dₐ max = 128 mm
rₐ max = 2 mm
Clearance: CN (Normal)
Speed Limitation(s):
Reference Speed (r/min) = 10000
Limiting Speed (r/min) = 5300
Calculation Factors:
Mean Radial Load - kN (Kr) = 0.03
Payload Factor (f₀) = 13
Alternative Part Number(s):
6313 2Z, 6313 ZZ, 6313-ZZ
More Information:
Deep groove ball bearings are probably the most popular and widely used type if bearing in the world. This large diameter 2Z type bearing is manufactured with metal shields, pre-packed with grease lubricant. The shielded type deep groove ball bearings are generally used in applications where they can be introduced to dust or dirt such as large motors, extruders and pumps. Unlike the 2RS sealed bearings, the metal shield doesn’t make contact with the inner ring, therefore the starting and running toque value isn’t affected. This deep groove ball bearing 6313-2Z SKF has an inside diameter of 65 mm, an outside diameter of 140 mm, and a width of 33 mm.
