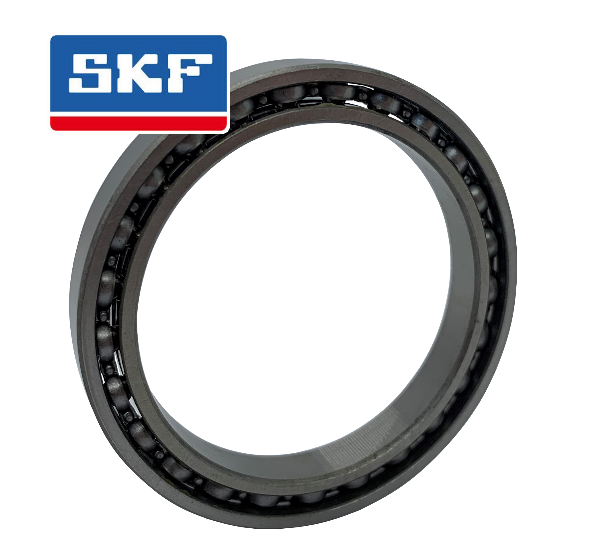

61901 SKF

[tab name='Specification']
Part Number: 61901

Brand: SKF

Bearing Type: Open type thin section ball bearing.

Dimension(s):
Inside Diameter (d) = 12 mm
Outside Diameter (D) = 24 mm
Width (B) = 6 mm
Radius (r₁,r₂ min) = 0.3 mm

Load Rating(s):
Basic Dynamic Load Rating - kN = 2.91
Basic Static Load Rating - kN = 1.46
Fatigue Load Limit - kN (Pᵤ) = 0.062

Abutment and Fillet Dimension(s):
dₐ min = 14 mm
dₐ max = Not Applicable
Dₐ max = 22 mm
rₐ max = 0.3 mm

Clearance: CN (Normal)

Speed Limitation(s):
Reference Speed (r/min) = 67000
Limiting Speed (r/min) = 40000

Calculation Factors:
Mean Radial Load - kN (Kr) = 0.02
Payload Factor (f₀) = 15

Alternative Part Number(s):
Not Applicable
[tab name='More Information']
SKF thin section ball bearings are precision-engineered mechanical components designed for applications where space is limited and weight reduction is essential. As part of SKF's comprehensive range of bearings, these thin section ball bearings offer a unique combination of compactness and performance, making them ideal for a wide range of industries and specialised applications.

Key characteristics and features of SKF thin section ball bearings include:

Slim Profile: These bearings are characterised by their slender cross-section, allowing them to fit into tight spaces where conventional bearings may not be feasible. Their thin design contributes to overall weight reduction in the machinery and equipment they are used in.

High Precision: SKF places a strong emphasis on precision engineering, ensuring that these thin section ball bearings deliver excellent accuracy in their operation. This precision is essential for maintaining smooth rotation and reducing friction.

Radial Load Support: Despite their slim profile, SKF thin section ball bearings can effectively support radial loads, making them suitable for applications where space limitations are a concern but radial load-bearing capability is still required.

Limited Axial Load Capacity: Due to their thin design, these bearings have a lower axial load capacity compared to standard deep groove ball bearings. As such, they are best suited for applications primarily subjected to radial loads.

Wide Range of Sizes: SKF offers a variety of sizes and configurations of thin section ball bearings, catering to different application requirements and load capacities.

Application Versatility: These bearings find applications in a diverse range of industries, including aerospace, robotics, medical devices, and other precision equipment where space and weight savings are critical.

Corrosion Resistance: SKF thin section ball bearings are available in various materials, including stainless steel, which enhances their resistance to corrosion and extends their operating life in challenging environments.

Low Friction and Quiet Operation: Just like other SKF bearings, thin section ball bearings are designed to minimise friction, resulting in smooth and quiet operation, especially when rotating at high speeds.

In summary, SKF thin section ball bearings offer a compact and lightweight solution for applications where space is limited and weight reduction is a priority. With their high precision, radial load support, and customisation options, these bearings are well-suited for industries seeking reliable and efficient solutions in confined spaces. SKF's commitment to quality and innovation ensures that their thin section ball bearings provide exceptional performance and contribute to the overall success of various industries and applications.
