33020 SKF

[tab name='Specification']

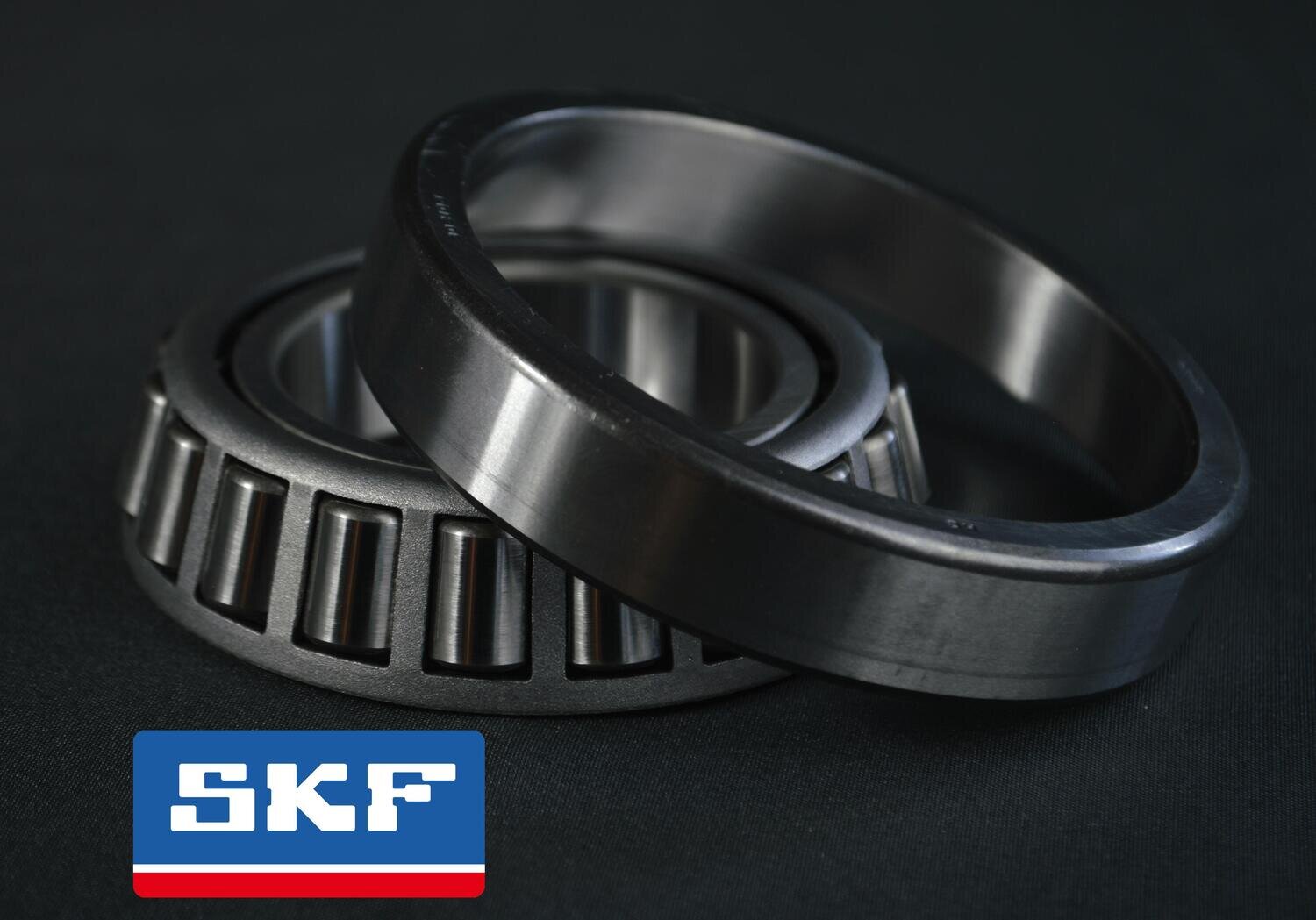

Part Number: 33020

Brand: SKF

Bearing Type: Single Row Tapered Roller Bearing

Dimension(s):
Inside Diameter (d) = 100mm
Outside Diameter (D) = 150mm
Combined Width (T) = 39mm
Width (B) = 39mm
Cup Width (C) = 32.5mm

Load Rating(s):
Basic Dynamic Load Rating (kN) = 224
Basic Static Load Rating (kN) = 390

Speed Limitation(s):
Limiting Speed - Grease Lubrication (min-1) = 2200
Limiting Speed - Oil Lubrication (min-1) = 3000

Alternative Part Number(s): 33020U
[tab name='More Information']
Metric tapered roller bearings are a type of precision-engineered rolling element bearing designed to handle both radial and axial loads. These bearings are widely used in various industrial applications, automotive systems, and heavy machinery due to their exceptional durability, high load-carrying capacity, and smooth operation.

The design of metric tapered roller bearings features inner and outer raceways with tapered surfaces, which allows for the rollers to accommodate radial and axial forces simultaneously. The tapered shape ensures that the load is distributed evenly along the rollers, reducing stress concentrations and promoting extended service life.

One of the key advantages of metric tapered roller bearings is their ability to handle axial loads in a single direction, making them suitable for applications where axial displacement is expected. They are often used in pairs, with the inner and outer rings having slightly different angles, to balance the axial load distribution more effectively.

These bearings are manufactured with precision and tight tolerances to ensure smooth rotation, reduced friction, and improved efficiency. The superior materials used in their construction, such as high-quality steel, contribute to their robustness and resistance to wear and tear.

Metric tapered roller bearings are available in various designs and sizes to accommodate different application requirements. They are identified by standardised dimensions, making it easier for engineers and manufacturers to select the appropriate bearing for their specific needs.

In summary, metric tapered roller bearings are reliable, high-performance components widely used in a broad range of industries to support axial and radial loads, making them an essential part of many mechanical systems and equipment. Their ability to withstand heavy loads and maintain smooth operation under demanding conditions makes them a preferred choice for various critical applications.
