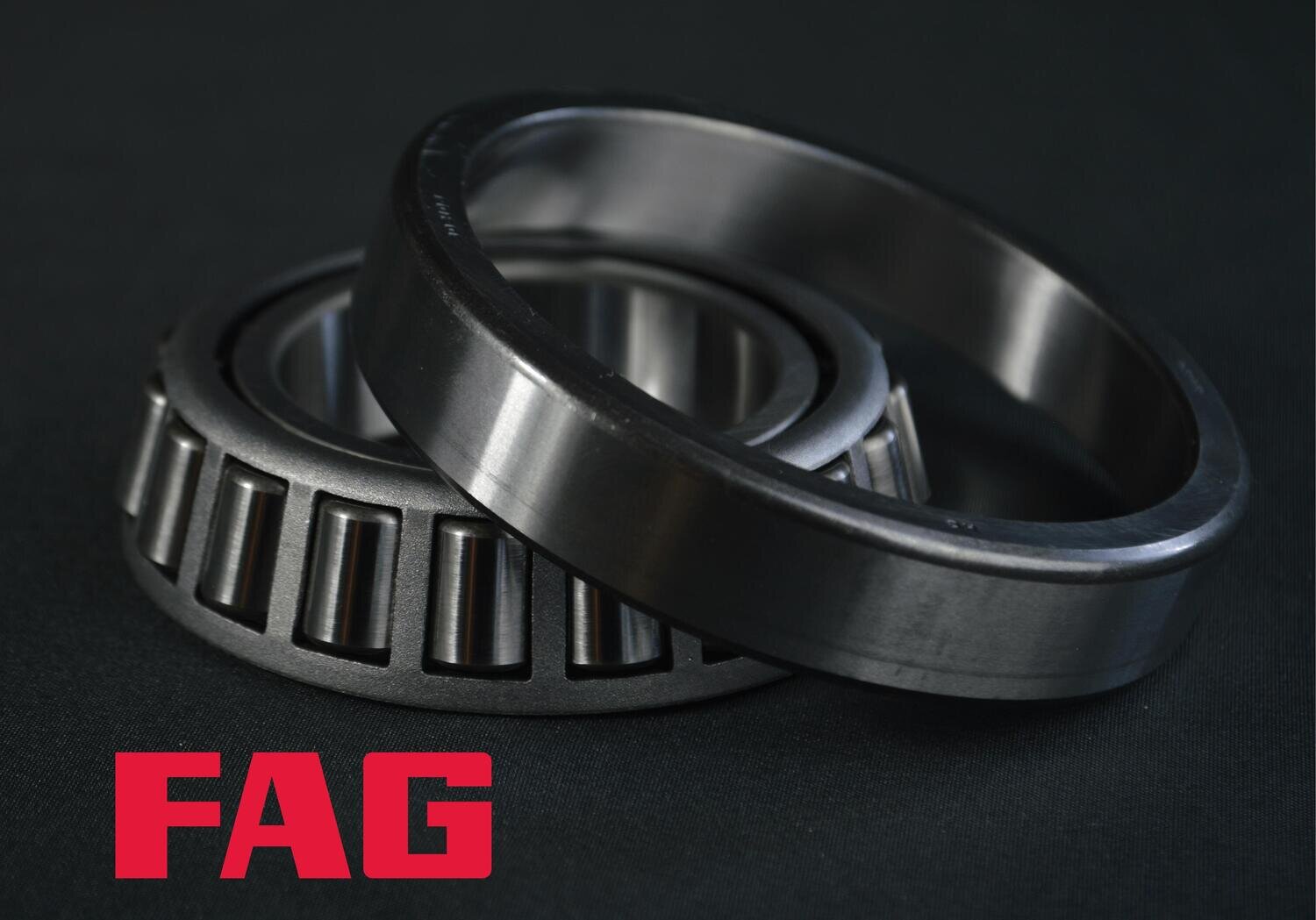

32008-XA-P5 FAG

Part Number: 32008 XA P5

Brand: FAG

Bearing Type: Single Row Tapered Roller Bearing - P5 Precision

Dimension(s):
Inside Diameter (d) = 40mm
Outside Diameter (D) = 68mm
Combined Width (T) = 19mm
Width (B) = 19mm
Cup Width (C) = 14.5mm

Load Rating(s):
Basic Dynamic Load Rating (kN) = 53
Basic Static Load Rating (kN) = 71

Speed Limitation(s):
Limiting Speed - Grease Lubrication (min-1) = 5300
Limiting Speed - Oil Lubrication (min-1) = 12800


More Information:
Tapered roller bearings are one of the most popular types of bearing in the industrial and automotive industries. This type of bearing is designed to accommodate both axial and radial loads in a single direction. This tapered roller bearing - 32008 has an inside diameter of 40 mm, an outside diameter of 68 mm, and a combined width of 19 mm.
