30220 SKF
SKU 01116
£164.38
If this product is showing "Price On Application" please call 0333 321 4908 or email sales@taperedrollerbearings.co.uk with your enquiry!
Most of our items are held in stock at one of our UK based depots, however some items may be subject to longer deliveries. If the longer delivery applies to your item, we will notify you as soon as possible.
In stock
1
Product Details

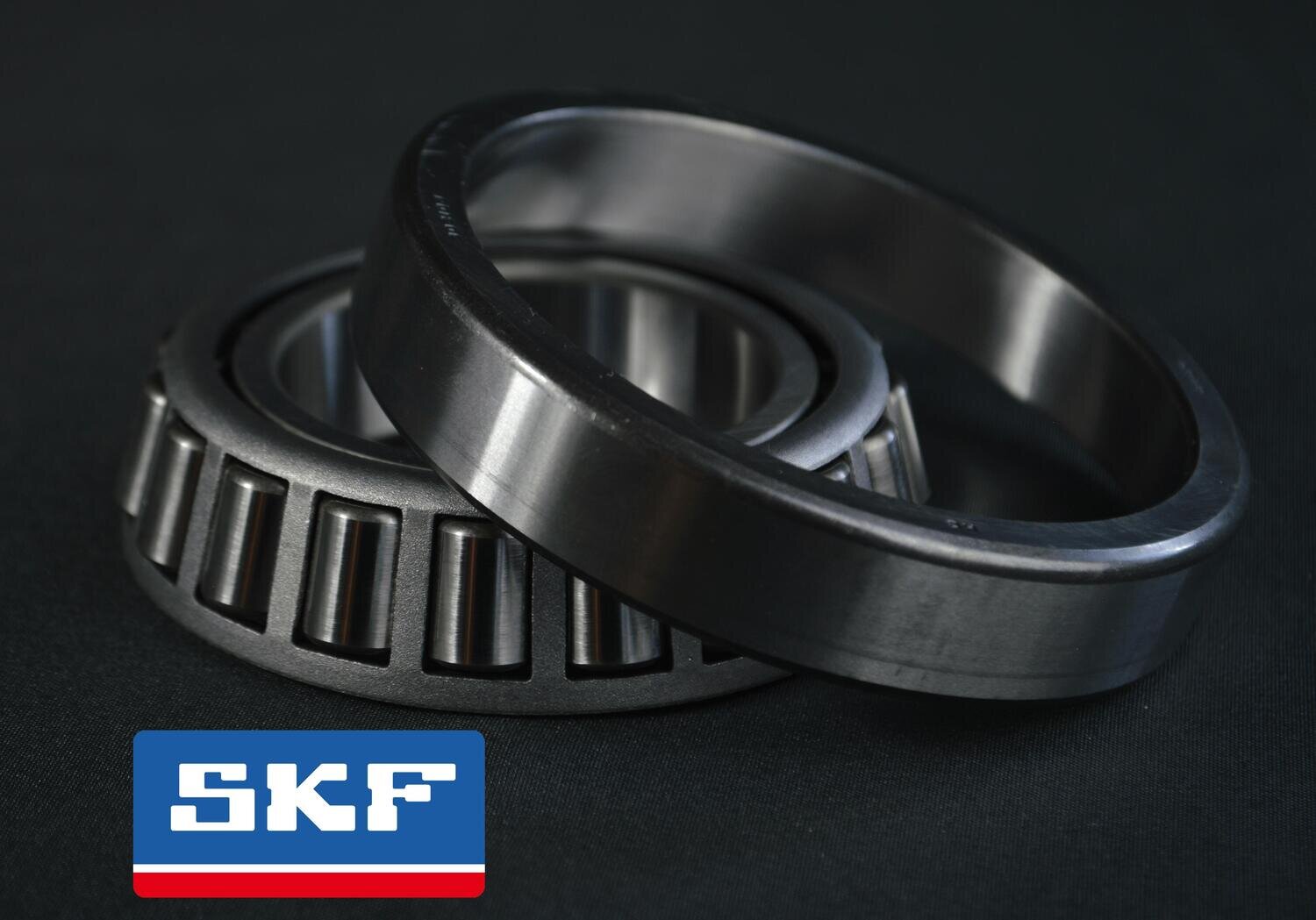

Part Number: 30220
Brand: SKF
Bearing Type: Single Row Tapered Roller Bearing
Dimension(s):
Inside Diameter (d) = 100mm
Outside Diameter (D) = 180mm
Combined Width (T) = 37mm
Width (B) = 34mm
Cup Width (C) = 29mm
Load Rating(s):
Basic Dynamic Load Rating (kN) = 254
Basic Static Load Rating (kN) = 350
Speed Limitation(s):
Limiting Speed - Grease Lubrication (min-1) = 2000
Limiting Speed - Oil Lubrication (min-1) = 2700
Alternative Part Number(s):
30220U
More Information:
Tapered roller bearings are one of the most popular types of bearing in the industrial and automotive industries. This type of bearing is designed to accommodate both axial and radial loads in a single direction. This tapered roller bearing - 30220 has an inside diameter of 100 mm, an outside diameter of 180 mm, and a combined width of 37 mm.
