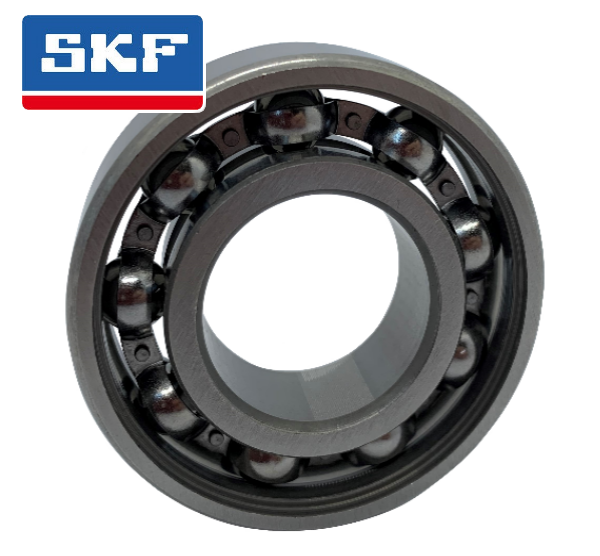

16101 SKF

[tab name='Specification']
Part Number: 16101

Brand: SKF

Bearing Type: Open type deep groove ball bearing.

Dimension(s):
Inside Diameter (d) = 12 mm
Outside Diameter (D) = 30 mm
Width (B) = 8 mm
Radius (r₁,r₂ min) = 0.3 mm

Load Rating(s):
Basic Dynamic Load Rating - kN = 5.07
Basic Static Load Rating - kN = 2.36
Fatigue Load Limit - kN (Pᵤ) = 0.1

Abutment and Fillet Dimension(s):
dₐ min = 14.4 mm
dₐ max = Not Applicable
Dₐ max = 27.6 mm
rₐ max = 0.3 mm

Clearance: CN (Normal)

Speed Limitation(s):
Reference Speed (r/min) = 60000
Limiting Speed (r/min) = 38000

Calculation Factors:
Mean Radial Load - kN (Kr) = 0.025
Payload Factor (f₀) = 13

Alternative Part Number(s):
Not Applicable
[tab name='More Information']
SKF deep groove ball bearings are precision-engineered mechanical components designed to facilitate smooth and efficient rotation between two surfaces. They are part of SKF's comprehensive range of bearings, which have been trusted and relied upon by industries worldwide for decades.

The deep groove ball bearings are characterised by their versatile and simple design, featuring an inner ring, an outer ring, a set of steel balls, and a cage to keep the balls separated and evenly spaced. This configuration enables the bearings to withstand both radial and axial loads, making them suitable for a wide array of applications.

Key features of SKF deep groove ball bearings include:

High Performance: SKF deep groove ball bearings are manufactured using premium materials and advanced production techniques, ensuring exceptional performance and longevity even under demanding conditions.

Low Friction: These bearings are engineered to minimise friction during rotation, resulting in reduced energy consumption and less heat generation, thus contributing to overall efficiency.

Versatility: SKF deep groove ball bearings are available in various sizes, designs, and configurations, allowing them to accommodate different loads, speeds, and operating conditions across diverse industries.

Quiet Operation: The precision engineering of these bearings ensures smooth and quiet operation, making them suitable for applications where noise reduction is essential.

Sealing Options: SKF offers deep groove ball bearings with various sealing options, such as shields and seals, to protect against contaminants and retain lubricants, thereby enhancing bearing life and performance.

Easy Installation and Maintenance: Thanks to their straightforward design, SKF deep groove ball bearings are easy to install and maintain, reducing downtime and operational disruptions.

Wide Application Range: These bearings find applications in numerous industries, including automotive, industrial machinery, electrical motors, agricultural equipment, and more.

Reliability: SKF is renowned for its dedication to quality and precision, ensuring that their deep groove ball bearings deliver reliable performance and contribute to the overall efficiency and productivity of the machinery they are used in.

In summary, SKF deep groove ball bearings combine precision engineering, durability, and versatility to provide a reliable solution for a wide range of rotating applications. Whether it's for high-speed machinery or heavy-duty equipment, SKF deep groove ball bearings are engineered to meet the demands of modern industries and deliver exceptional performance over their operational lifespan.
