Dimension(s):
Top Width (D) = 10 mm
Depth (d) = 8 mm
Inside Length (mm) = 725 mm
Pitch Length (mm) = 762 mm
Outside Length (mm) = 775 mm
Angle = 36°
Operating Temperature: -18°C to +80°C
Alternative Part Number(s):
SPZ762 MC
SPZX762
More Information:

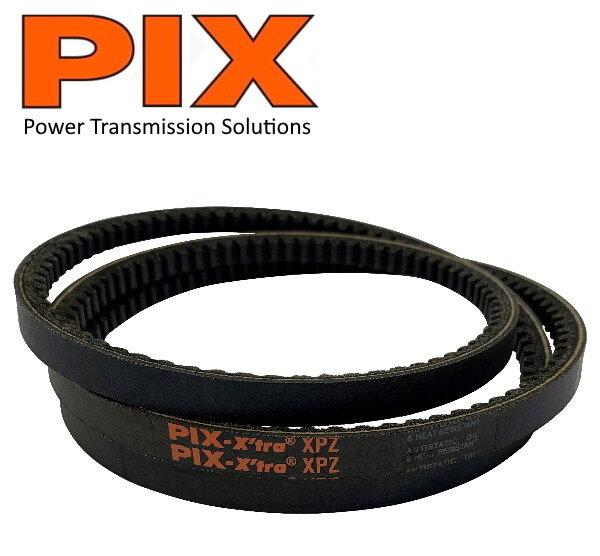

PIX Raw Edge Cogged belts are generally used where high power transmission is required. The teeth on these belts run perpendicular to the length of the belt which reduces bending stress, allows the belt to run cooler, last longer and offers higher range of flexibility.
