Dimension(s):
Top Width (D) = 10 mm
Depth (d) = 8 mm
Inside Length (mm) = 713 mm
Pitch Length (mm) = 750 mm
Outside Length (mm) = 763 mm
Angle = 36°
Operating Temperature: -18°C to +80°C
Alternative Part Number(s):
SPZ750 MC
SPZX750
More Information:

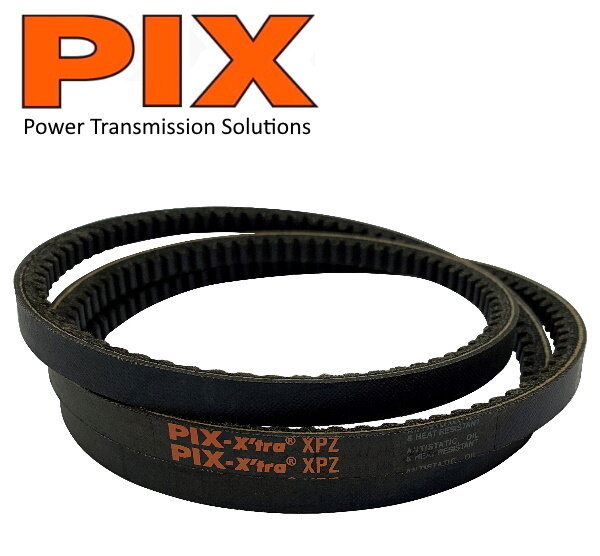

PIX Raw Edge Cogged belts are generally used where high power transmission is required. The teeth on these belts run perpendicular to the length of the belt which reduces bending stress, allows the belt to run cooler, last longer and offers higher range of flexibility.
