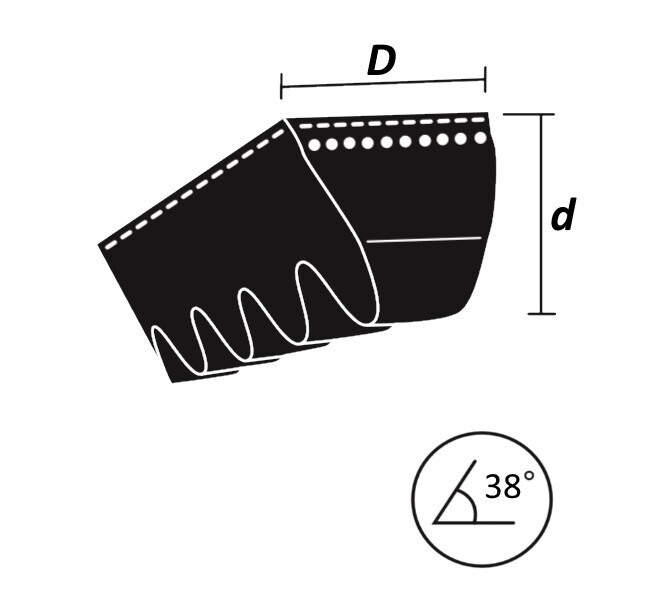

Dimension(s):
Top Width (D) = 22 mm
Depth (d) = 18 mm
Inside Length (mm) = 4667 mm
Pitch Length (mm) = 4750 mm
Outside Length (mm) = 4780 mm
Angle = 38°
Operating Temperature: -18°C to +80°C
Alternative Part Number(s):
SPC4750 MC
SPCX4750
More Information:
PIX Raw Edge Cogged belts are generally used where high power transmission is required. The teeth on these belts run perpendicular to the length of the belt which reduces bending stress, allows the belt to run cooler, last longer and offers higher range of flexibility.
