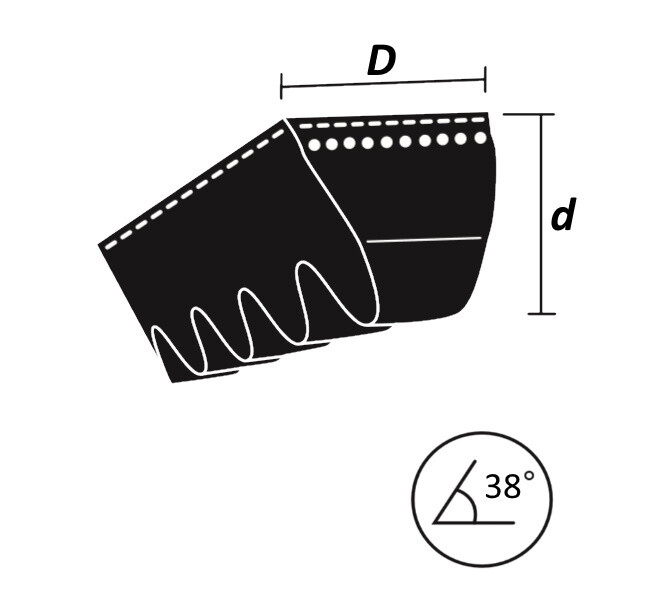

Dimension(s):
Top Width (D) = 22 mm
Depth (d) = 18 mm
Inside Length (mm) = 3667 mm
Pitch Length (mm) = 3750 mm
Outside Length (mm) = 3780 mm
Angle = 38°
Operating Temperature: -18°C to +80°C
Alternative Part Number(s):
SPC3750 MC
SPCX3750
More Information:
PIX Raw Edge Cogged belts are generally used where high power transmission is required. The teeth on these belts run perpendicular to the length of the belt which reduces bending stress, allows the belt to run cooler, last longer and offers higher range of flexibility.
