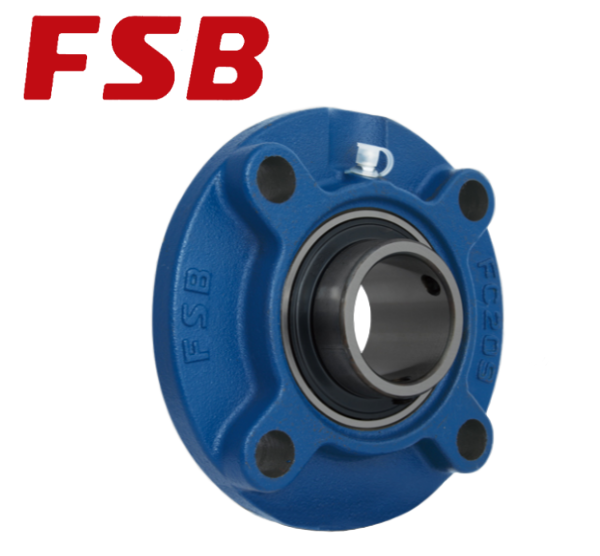

UCFC206-18 FSB

[tab name='Specification']
Part Number: UCFC206-18

Brand: FSB

Bearing Type: Flanged Cartridge Unit

Dimension(s):
Shaft Size (d) = 1.125"
Housing Diameter (a) = 125mm
Pitch Diameter (p) = 100mm
Bolt Hole Centre Dimension (e) = 70.7mm
Housing Depth (l) = 31mm
Bolt Hole Diameter (S) = 12mm
Spigot Diameter (f) = 80mm
Spigot Depth (j) = 8mm
Flange Depth (k) = 8mm
Width Through Bore (Bi) = 38.1mm

Load Rating(s):
Basic Dynamic Load Rating (kN) = 19.5
Basic Static Load Rating (kN) = 11.4

Speed Limitation(s):
Permissible Speed of Rotation - Grease Lubrication - (r/min) = 2800

Temperature Limitations: -10°C to +100°C
[tab name='More Information']
UCFC flanged housed bearings are robust and versatile components designed to provide reliable support and precise alignment for rotating shafts in various industrial applications. These bearing units combine the functionality of a bearing with a flanged housing, offering convenient installation and secure mounting options.

UCFC flanged housed bearings are commonly used in industries such as manufacturing, mining, agriculture, and material handling, where machinery and equipment rely on rotating shafts and require efficient power transmission. They are suitable for applications such as conveyor systems, pumps, fans, mixers, and other equipment that demand stable and smooth rotational movement.

The UCFC flanged housed bearings feature a compact and durable design. The bearing unit consists of a high-quality bearing insert, usually a ball or roller bearing, housed within a sturdy flanged housing. The housing is typically made of materials like cast iron or stainless steel, providing excellent strength, corrosion resistance, and protection against environmental elements.

The flanged housing incorporates a mounting flange with pre-drilled bolt holes, enabling easy and secure attachment to machine frames or mounting surfaces. The flange ensures proper alignment and eliminates the need for additional components or complex mounting arrangements. This simplifies installation, reduces assembly time, and enhances overall system stability.

UCFC flanged housed bearings are designed to accommodate radial loads, axial loads, or a combination of both, depending on the specific application requirements. They are engineered to provide smooth operation, low friction, and high load-carrying capacity, ensuring reliable performance under demanding conditions.

These bearing units often come equipped with features like seals or shields to protect the bearing from contaminants and retain lubrication, minimizing the risk of premature wear or failure. Additionally, some UCFC flanged housed bearings may have options for different sealing arrangements, such as contact seals or labyrinth seals, allowing users to choose the level of protection required for their specific operating environment.

The versatility of UCFC flanged housed bearings is further enhanced by their interchangeability and compatibility with industry-standard dimensions. This enables easy replacement and interchangeability with existing bearing units, promoting flexibility and reducing downtime during maintenance or repairs.

In summary, UCFC flanged housed bearings provide a reliable and efficient solution for supporting rotating shafts. Their combination of a high-quality bearing insert and a sturdy flanged housing ensures precise alignment, easy installation, and robust performance. These bearing units are widely used in industrial settings, contributing to the smooth and reliable operation of various machinery and equipment.
