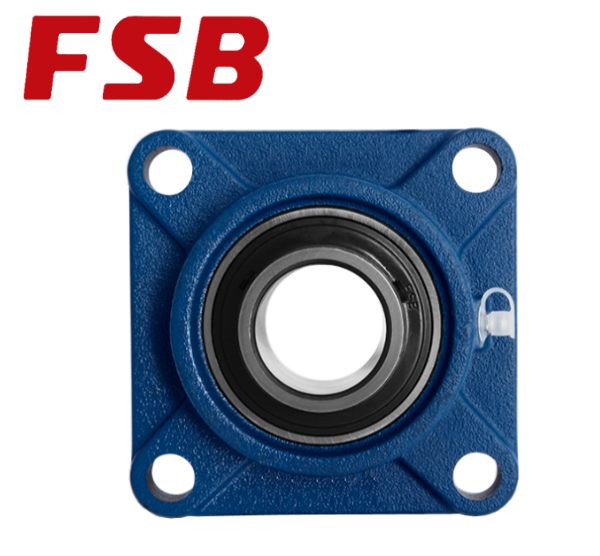

UCF216 FSB

[tab name='Specification']
Part Number: UCF216

Brand: FSB

Bearing Type: Four Bolt Flanged Bearing

Dimension(s):
Shaft Size (d) = 80mm
Overall Square (a) = 208mm
Bolt Hole Centre Dimension (e) = 165mm
Width Through Bore (Bᵢ) = 82.6mm
Overall Width (Z) = 83.3mm
Housing Width (l) = 58mm
Depth of Housing Base (g) = 22mm
Bolt Hole Diameter (S) = 23mm
Bolt Used = M20

Load Rating(s):
Basic Dynamic Load Rating (kN) = 71.7
Basic Static Load Rating (kN) = 54.4

Speed Limitation(s):
Permissible Speed of Rotation - Grease Lubrication - (r/min) = 1100

Temperature Limitations: -10°C to +100°C

Alternative Part Number(s):
UCF 216, SF80
[tab name='More Information']
Fujian Fushan Bearing Co., Ltd. is a reputable manufacturer known for its expertise in motion control solutions, and one of its prominent offerings is the square flanged bearings. These bearings are designed to provide sturdy support and efficient motion control for rotating shafts in a wide range of industrial applications.

Square flanged bearings feature a unique flanged housing design, which consists of a square-shaped mounting surface with four holes for easy and secure attachment to machinery or equipment. The flanged housing eliminates the need for additional mounting brackets, simplifying the installation process and reducing assembly time.

The housing of these bearings is typically constructed from durable materials, such as cast iron or stainless steel, ensuring excellent strength and resistance to wear and corrosion. The housing contains an insert bearing that comes pre-lubricated and sealed, reducing the need for frequent maintenance and protecting the bearing from contaminants, thereby prolonging its operational life.

Fujian Fushan's square flanged bearings are available in various sizes, load-carrying capacities, and configurations, making them adaptable to different shaft sizes and supporting diverse operating conditions. This versatility allows customers to choose the ideal bearing for their specific application needs.

The square flanged design of these bearings facilitates straightforward installation and precise alignment of the shaft, which is crucial for optimal performance and reduced wear.

These bearings find extensive use in industries such as agriculture, construction, material handling, conveyor systems, and more. Their reliable performance and efficient motion control make them a preferred choice for critical applications that demand smooth operation and long-lasting durability.

Fujian Fushan Bearing Co., Ltd. prioritises the highest quality standards in its manufacturing processes. The company conducts thorough testing and strict quality control procedures to ensure that each square flanged bearing meets rigorous performance and reliability criteria, providing customers with dependable and high-performing motion control solutions.

In summary, Fujian Fushan Bearing Co., Ltd.'s square flanged bearings are well-engineered motion control components that offer robust support and efficient motion control for rotating shafts. With their square-shaped flanged housing, adaptability, and commitment to product quality, these bearings are a trusted choice for various industrial systems, enhancing operational efficiency and ensuring reliable and long-lasting performance.
