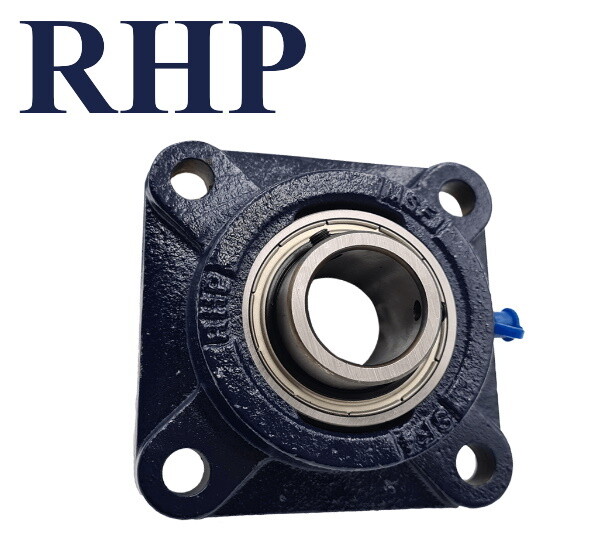

TMSF55 RHP

Part Number: TMSF55

Brand: RHP

Bearing Type: Four Bolt Flange Bearing with Labyrinth Seal

Dimension(s):

Shaft Size = 55mm

Bolt Hole Centres (J) = 143mm

Overall Square (L) = 174.5mm

Overall Depth (A₁) = 73.69mm

Overall Casting Depth (A) = 47.6mm

Casting Base Depth (A₄) = 17.5mm

Bolt Diameter (G) = 16mm

Casting Group = 7

Load Rating(s):

Basic Dynamic Load Rating (N) = 40300

Basic Static Load Rating (N) = 35900

Speed Limitation(s):

Limiting Speed - Grease Lubrication (rpm) = 2800

Operating Temperature: -20°c to + 90°c

More Information:

The range of housed bearing units offers a wide choice of cast iron, pressed steel, synthetic rubber, thermoplastic or stainless steel housings fitted with spherical outside diameter self-lube bearing insert. They will generally accommodate initial housing misalignment up to 0.030 radians, but are not recommended for running misalignment in excess of 0.001 radians. The general housing types are pillow blocks, flange units, take-up units, cartridge units and hanger units. Choice is very much determined by the requirements of the application, although the aesthetic appearance of the machine design is often an important consideration. Housed bearing units have been designed to meet the needs of both criteria.

› Cast iron unit castings are made from high-quality cast iron, and finished on pre-machined surfaces with an electrostatic air-drying paint.

› Pressed steel housings are made from mild steel strip, and are zinc plated.

› Thermoplastic housings are moulded in high-grade PBT, a high quality thermoplastic polyester resin.

› Stainless steel housings are made from austenitic stainless steel castings (SCS13).
