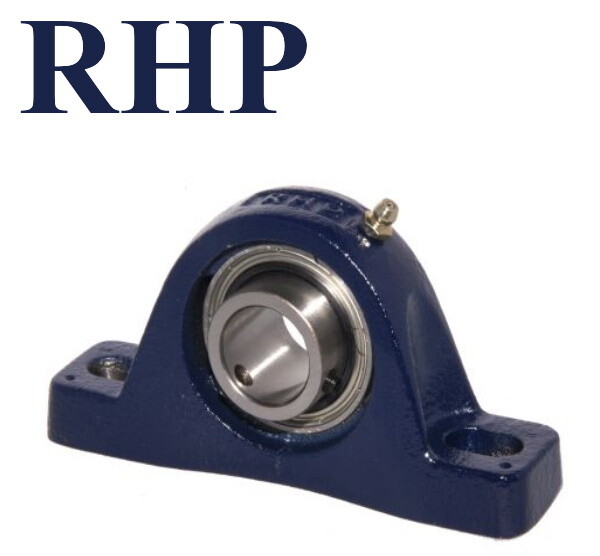

TMP55 RHP

Part Number: TMP55

Brand: RHP

Bearing Type: Pillow Block Bearing with Labyrinth Seal

Dimension(s):

Shaft Size = 55mm

Bolt Hole Centres - min (J) = 175mm

Bolt Hole Centres - max (J) = 200mm

Overall Length (L) = 260.4mm

Overall Height (H₂) = 142.9mm

Base to Centre Height (H) = 69.85mm

Casting Base Depth (H₁) = 27mm

Casting Base Width (A) = 79.4mm

Casting Top Width (A₁) = 46mm

Bolt Diameter (G) = 20mm

Casting Group = 7

Load Rating(s):

Basic Dynamic Load Rating (N) = 40300

Basic Static Load Rating (N) = 35900

Speed Limitation(s):

Limiting Speed - Grease Lubrication (rpm) = 2800

Operating Temperature: -20°c to +90°c

More Information:

The range of housed bearing units offers a widechoice of cast iron, pressed steel, synthetic rubber,thermoplastic or stainless steel housings fitted withspherical outside diameter self-lube bearing insert.They will generally accommodate initial housingmisalignment up to 0.030 radians, but are notrecommended for running misalignment in excess of0.001 radians. The general housing types are pillow blocks, flange units,take-up units, cartridge units and hanger units. Choice isvery much determined by the requirements of theapplication, although the aesthetic appearance of themachine design is often an important consideration. Housed bearing units have been designed to meet the needs ofboth criteria.

› Cast iron unit castings are made from high-quality castiron, and finished on pre-machined surfaces with anelectrostatic air-drying paint.

› Pressed steel housings are made from mild steel strip,and are zinc plated.

› Thermoplastic housings are moulded in high-grade PBT,a high quality thermoplastic polyester resin.

› Stainless steel housings are made from austeniticstainless steel castings (SCS13).
