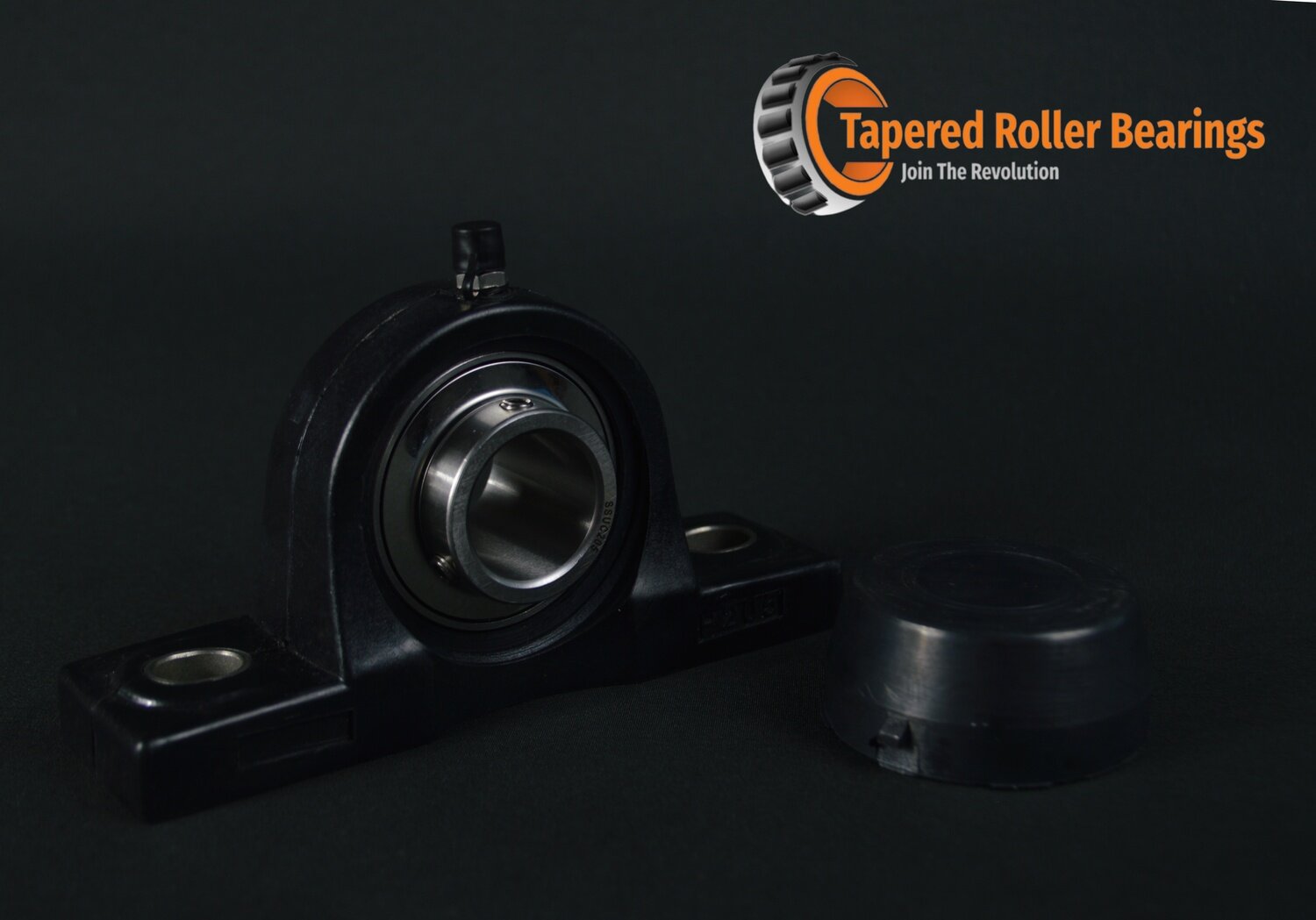

PPL209SSN TRB

[tab name='Specification']
Part Number: PPL209SSN

Brand: TRB

Bearing Type: Black Thermoplastic Pillow Block Unit

Dimension(s):
Shaft Size (d) = 45mm
Base to Centre Height (h) = 54mm
Overall Length (a) = 192mm
Bolt Hole Centre Dimension (e) = 146mm
Width of Base (b) = 54mm
Depth of Base (g) = 23mm
Width Through Bore (Bᵢ) = 49mm
Overall Height (W) = 106mm
Bolt Hole Width (S1) = 17mm
Bolt Hole Length (S2) = 20mm

Load Rating(s):
Basic Dynamic Load Rating (kN) = 25.6
Basic Static Load Rating (kN) = 18.1

Tightening Torque (N-m): 50

Alternative Part Number(s):
TP-PPL209, SUCPPL209, SUCP209, TP-SUCP209
[tab name='More Information']
Thermoplastic pillow block bearings represent a cutting-edge advancement in bearing technology, offering a versatile and reliable solution for supporting rotating shafts in various industrial applications. These bearings are engineered using high-performance thermoplastic materials, which impart exceptional properties that enhance their performance and extend their operational life.

1. Superior Construction and Materials:
Thermoplastic pillow block bearings are meticulously crafted using high-quality thermoplastic polymers, such as nylon, PBT, or PEEK (polyether ether ketone). These materials are selected for their remarkable mechanical strength, resistance to wear, and excellent dimensional stability, making them ideal for demanding industrial environments.

2. Innovative Design Features:
The design of thermoplastic pillow block bearings is carefully optimized to maximise functionality and ease of use. The bearings typically consist of a self-aligning housing and an inner bearing insert that holds the rotating shaft. The self-aligning feature allows for some misalignment compensation, reducing the risk of premature wear and damage.

3. Chemical and Corrosion Resistance:
Thermoplastic materials inherently possess outstanding resistance to various chemicals, solvents, and corrosive agents. This unique characteristic makes these bearings well-suited for applications in aggressive environments, including chemical processing, wastewater treatment, and marine industries.

4. Self-Lubricating Properties:
One of the key advantages of thermoplastic pillow block bearings is their self-lubricating properties. The material can incorporate solid lubricants or additives that help reduce friction and wear, minimising the need for additional lubrication and maintenance. This feature contributes to longer bearing life and increased operational efficiency.

5. Lightweight and Low Noise Operation:
Thermoplastic pillow block bearings are notably lightweight when compared to traditional metal bearings. This attribute reduces the overall weight of the rotating system, making them suitable for applications where weight is a critical consideration. Additionally, their low friction characteristics result in quieter operation and reduced vibration, enhancing the overall user experience.

6. Thermal Stability:
Thermoplastic materials offer excellent thermal stability, allowing the bearings to maintain their structural integrity and performance even under varying temperature conditions. This thermal resilience ensures consistent operation and prevents deformations caused by temperature fluctuations.

7. Environmental Friendliness:
In today's environmentally conscious world, thermoplastic pillow block bearings stand out as an eco-friendly option. Their production involves a lower carbon footprint compared to traditional metal bearings, and they can be recycled at the end of their service life, contributing to sustainable practices.

8. Wide Range of Applications:
Thermoplastic pillow block bearings find applications in diverse industries, including food and beverage, pharmaceuticals, aerospace, textile, automotive, and more. They are suitable for conveyor systems, material handling equipment, agricultural machinery, and various other rotational motion systems.

In conclusion, thermoplastic pillow block bearings embody the perfect synergy of advanced materials and innovative design. Their exceptional properties, including chemical resistance, self-lubrication, low noise operation, and thermal stability, make them an ideal choice for industries seeking reliable and environmentally friendly bearing solutions. Whether used in heavy-duty machinery or precision applications, thermoplastic pillow block bearings continue to set new standards in performance, durability, and sustainability.
