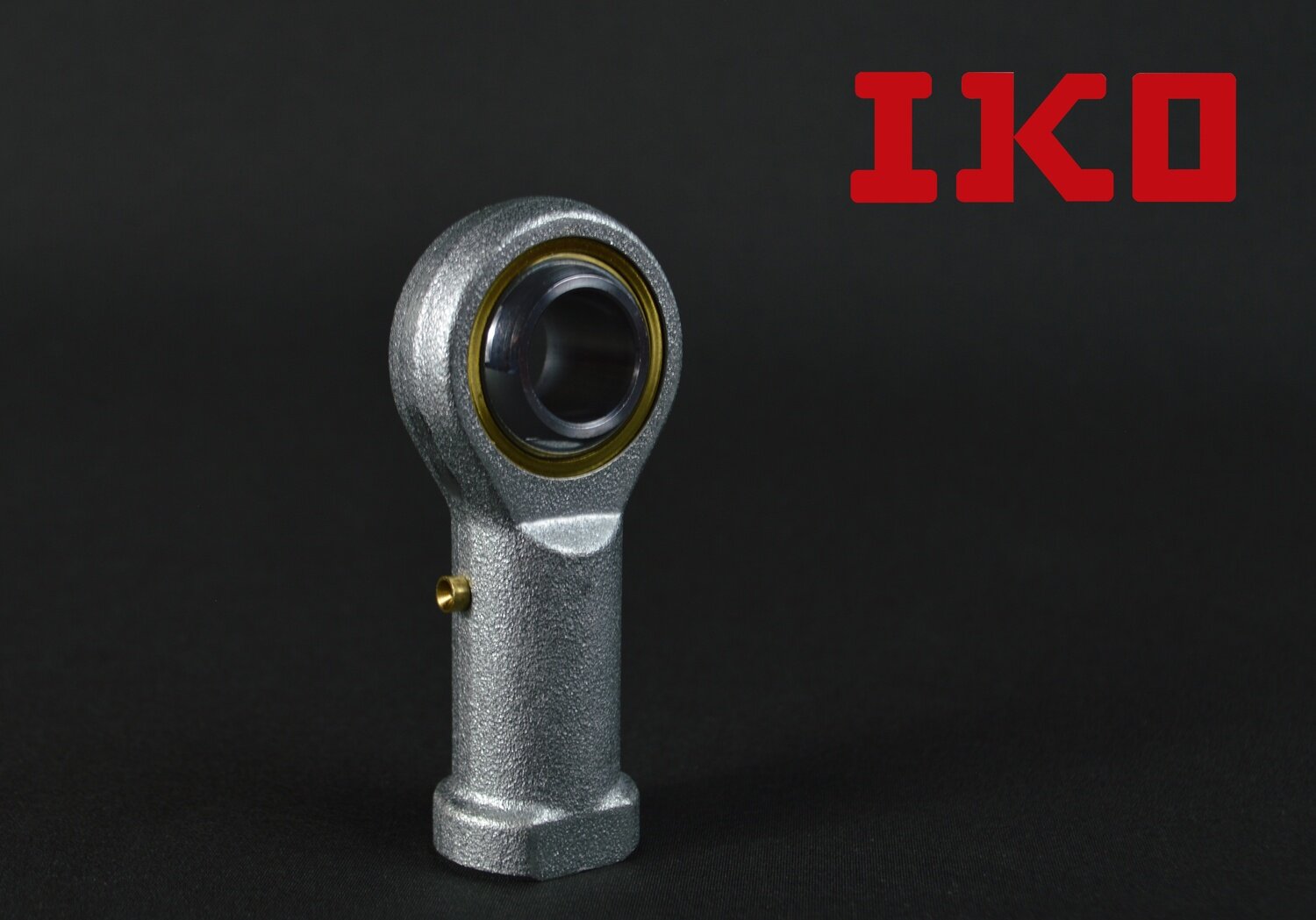

PHS8 IKO

[tab name='Specification']
Part number: PHS8

Brand: IKO

Bearing Type: Female Pillo-Ball Rod End Bearing - Right Hand Thread

Dimension(s):
Inside Diameter (d) = 8mm
Outside Diameter of Head (d₂) = 22mm
Overall Height (l₄) = 47mm
Base to Center Height (h₁) = 36mm
Width Through Bore (B) = 12mm
Thread Length (l₃) = 17mm
Thread Size (G) = M8 x 1.25mm
Radius (r₁) = 0.2 mm

Load Rating(s):
Basic Dynamic Load Rating (kN) = 7.01
Basic Static Load Rating (kN) = 10.2

Liner Type:
Copper Alloy

Alternative Part Number(s):
MF8, JAF8, SIK8M, GIKFR 8 PB, SIKAC 8 M, SF 8, PHS 8 , PHS8A, PHS8 A
[tab name='More Information']

IKO Female Rod End Bearings are precision-engineered components designed to provide reliable motion control and load-carrying capabilities in mechanical linkages and systems. These bearings are an integral part of IKO's rod end series and are specifically designed to be used in applications where a female thread is required for mounting and attachment.

Key Features:

Female Thread Design: The distinguishing feature of IKO Female Rod End Bearings is their female thread, which allows for easy and secure attachment to rods, shafts, or other mating components with male threads. This design simplifies installation and adjustment processes, making them ideal for a wide range of applications.

Spherical Plain Bearing: IKO Female Rod End Bearings utilise a spherical plain bearing design, consisting of an inner ring and an outer ring with a sliding surface between them. This construction permits both rotational and angular movement, enabling smooth pivoting and swiveling motion.

High Load-Carrying Capacity: Despite their compact size, IKO Female Rod End Bearings are engineered to handle both radial and axial loads. They are designed to provide reliable motion control and load distribution, ensuring stability and precision in various mechanical linkages.

High-Quality Materials: IKO uses top-quality materials in the manufacturing of their Female Rod End Bearings, ensuring durability, corrosion resistance, and consistent performance even under demanding operating conditions.

Maintenance-Free Options: Some IKO Female Rod End Bearings come with self-lubricating properties, incorporating materials like PTFE (polytetrafluoroethylene) liners or other low-friction coatings. This feature reduces the need for regular maintenance and ensures reliable performance over extended periods.

Versatile Applications: IKO Female Rod End Bearings find utility in a wide range of industries and applications, including automotive, aerospace, industrial machinery, robotics, and more. They are commonly used in control linkages, hydraulic cylinders, steering systems, and various motion control setups.

Customisable Options: IKO offers a variety of sizes, thread types, and configurations to cater to different application requirements. This flexibility allows engineers and designers to select the most suitable Female Rod End Bearing for their specific needs.

In conclusion, IKO Female Rod End Bearings are essential components for precise motion control and load distribution in mechanical linkages and systems. With their female thread design, high-quality materials, and versatile applications, these bearings offer easy installation, reliable performance, and durability. Engineers and manufacturers can depend on IKO Female Rod End Bearings to optimise the performance of their machinery and equipment in various industrial settings.
