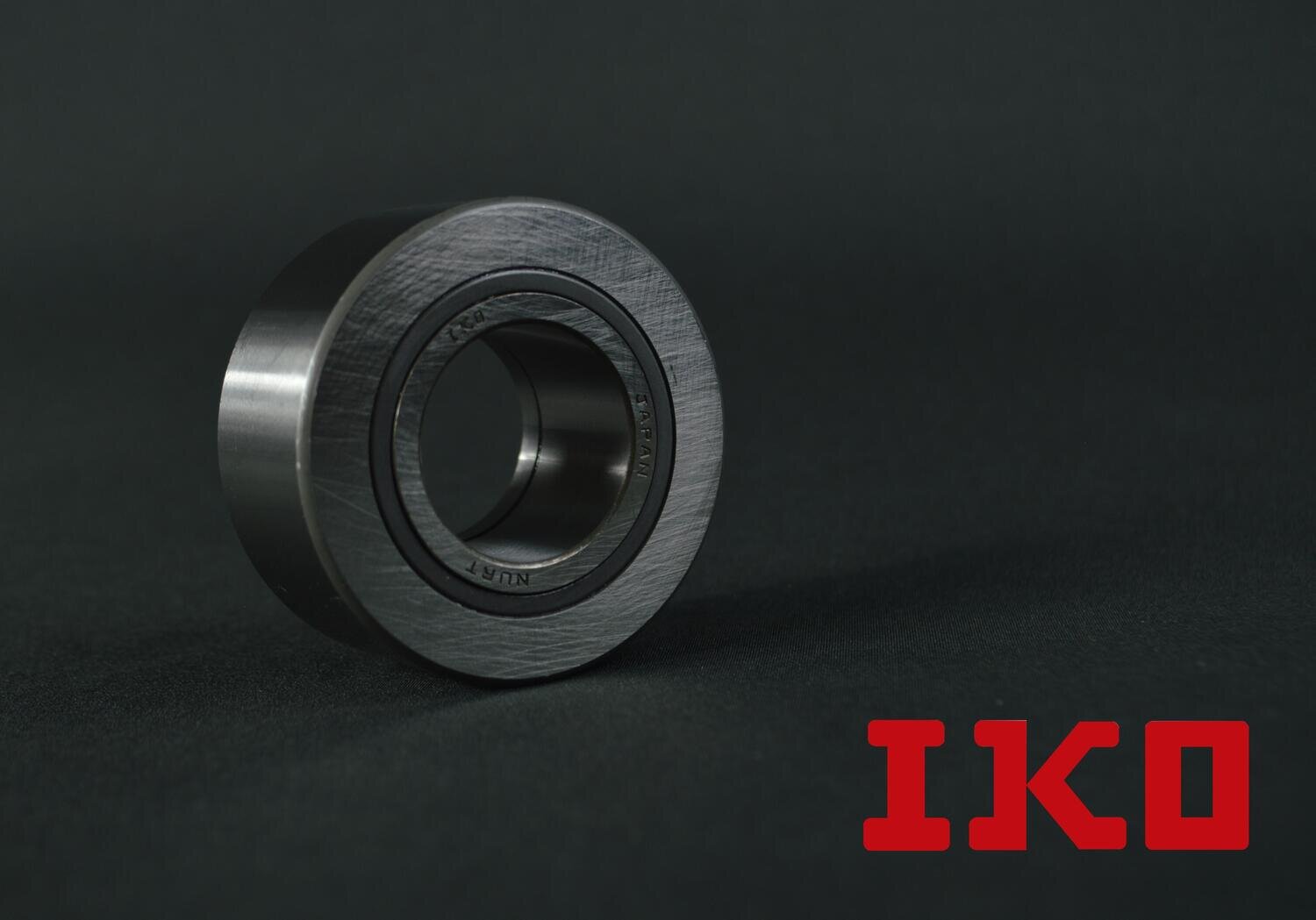

NURT17-1 IKO

[tab name='Specification']
Part Number: NURT17-1

Brand: IKO

Bearing Type: Full Complement Cylindrical Roller Type Roller Follower

Dimension(s):
Inside Diameter (d) = 17mm
Outside Diameter (D) = 47mm
Outer Ring Width (C) = 20mm
Width Through Bore (B) = 21mm
Radius (rₛ min) = 1mm
Radius (r₁ₛ min) = 0.3mm

Other Dimenson(s):
(a) = 22mm

Load Rating(s):
Basic Dynamic Load Rating (N) = 25200
Basic Static Load Rating (N) = 30900
Maximum Allowable Static Load (N) = 30900

Alternative Part Number(s):
NUTR1747X

Additional Notes:
1). The inner ring has an oil hole.
2). This bearing is supplied with pre-packed grease.
[tab name='More Information']
IKO Full Complement Roller Followers are specialized components designed to provide robust and reliable motion control in demanding industrial applications. These followers are part of IKO's track roller series and are known for their high load-carrying capacity, durability, and efficient performance.

Key Features:

Full Complement Design: The defining feature of IKO Full Complement Roller Followers is their unique design, which incorporates a full complement of rollers. Unlike standard roller followers that have a cage to separate the rollers, full complement followers maximise the roller quantity, enabling them to carry higher radial loads and better distribute the load across the entire roller set.

High Load-Carrying Capacity: With their full complement of rollers, these followers offer increased load-carrying capacity, making them suitable for applications that involve heavy loads and dynamic forces. They excel in handling demanding industrial conditions.

Robust Construction: IKO manufactures full complement roller followers using high-quality materials and precision engineering techniques. The robust construction ensures durability, even under harsh operating environments.

Smooth and Efficient Motion: The optimised design of the rollers and the follower's construction result in smooth and efficient motion. This allows for precise tracking and positioning, making them ideal for applications that require accurate linear movement.

Non-Separable Structure: IKO full complement roller followers come as non-separable units, integrating the outer ring, stud, and roller set into a single assembly. This design ensures easy installation and reduces the risk of misalignment during operation.

Versatile Applications: IKO full complement roller followers find utility in various industrial applications, such as conveyor systems, cam drives, and heavy-duty linear motion systems. They are commonly used in industries like manufacturing, automation, and material handling.

Sealing Solutions: Some IKO full complement roller followers feature built-in seals to protect the bearing from contaminants, ensuring reliable operation and longer service intervals, especially in challenging environments.

In summary, IKO Full Complement Roller Followers offer a high load-carrying capacity, robust construction, and smooth motion control. With their non-separable design and versatile applications, these followers are well-suited for industrial setups where heavy loads and precise motion are required. Engineers and manufacturers can depend on IKO full complement roller followers to meet the demands of their most challenging applications and ensure reliable and efficient performance.
