NUP2210EM Rollway
SKU CYLINDRICAL-00752
£41.04
In stock
1
Product Details
Weight: 0.60 kg
[tab name='Specification']
Part Number: NUP2210EM
Brand: Rollway
Bearing Type: Single Row Cylindrical Roller Bearing - (2 integral flanges on the outer ring / 1 integral flange and 1 non-integral flange, i.e. a loose flange ring on the inner ring)
Dimension(s):
Inside Diameter (d) = 50mm
Outside Diameter (D) = 90mm
Width (B) = 23mm
Outer Ring Internal Diameter (E) = Not Applicable
Inner Ring External Diameter (F) = 59.5mm
Load Rating(s):
Basic Dynamic Load Rating (kN) = 76.8
Basic Static Load Rating (kN) = 87.6
Speed Limitation(s):
Allowable Rotational Speed - Grease Lubrication (r/min) = 6900
Allowable Rotational Speed - Oil Lubrication (r/min) = 8300
Lip Arrangement: Fixed Outer Ring and Loose Inner Ring - Inner Ring Flanged on One Side + Separable Flange (removable in a single direction)
Clearance: CN (Normal)
Cage Material: Brass
Maximum Operating Temperature: 120°C
[tab name='More Information']
The NUP type cylindrical roller bearing is a specific type of roller bearing commonly used in applications where axial displacement of the shaft relative to the housing is required. It belongs to the family of cylindrical roller bearings known for their ability to provide high radial load capacity and moderate axial load capacity.
The NUP designation stands for "locating unit with a separable inner ring," indicating that this bearing design incorporates a separable inner ring that can be mounted independently from the outer ring. This feature allows for easier installation, disassembly, and maintenance of the bearing.

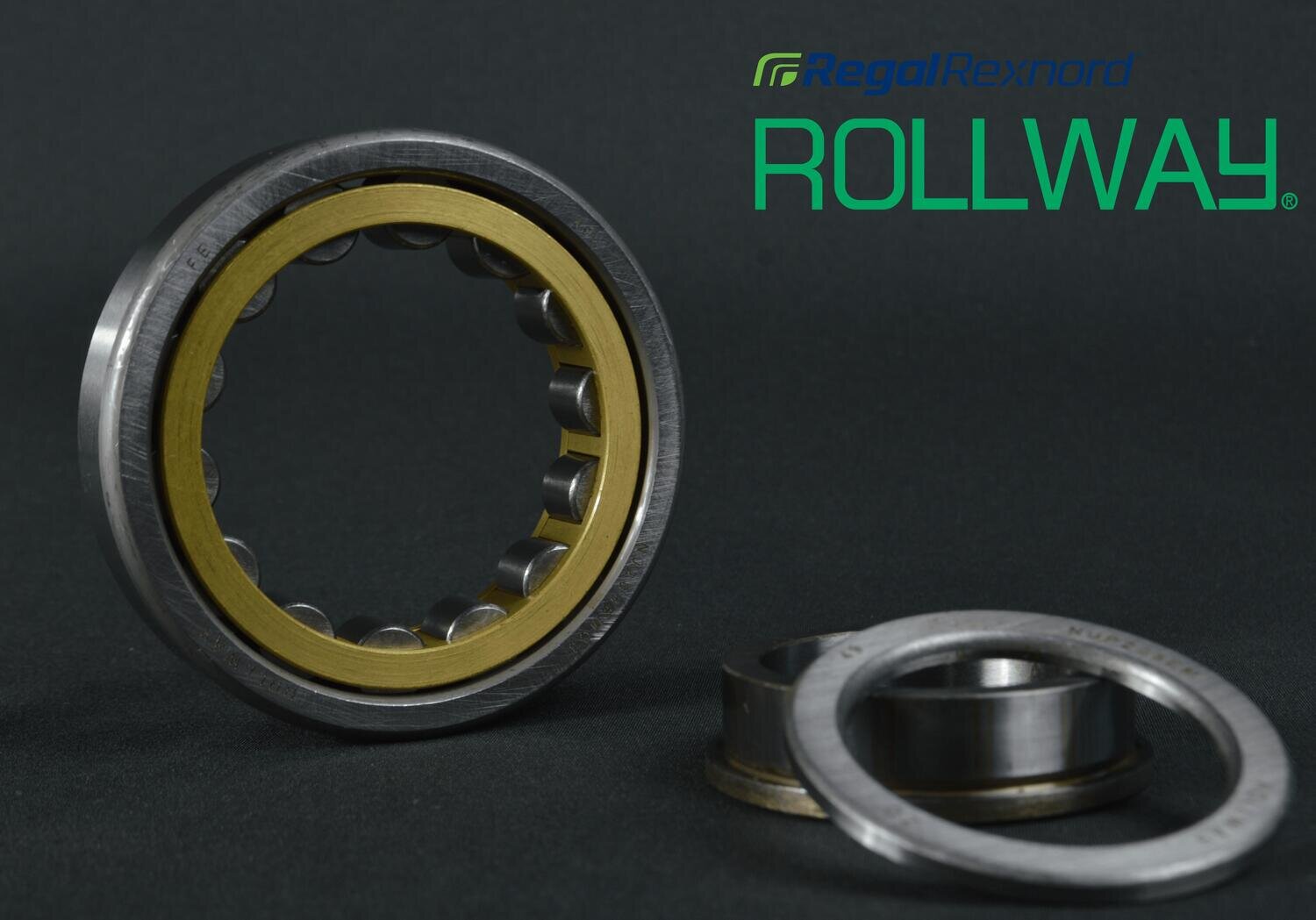

NUP type cylindrical roller bearings consist of an inner ring (flanged one side plus a separable flange on the other side), an outer ring, cylindrical rollers, and a cage assembly. The cylindrical rollers are arranged in parallel between the inner and outer rings and guided by the cage, which maintains their proper spacing and prevents excessive friction between the rollers.
NUP type cylindrical roller bearings are commonly used in applications such as gearboxes, machine tool spindles, pumps, and traction motors, where precise axial positioning of the shaft is required. The separable design facilitates easy mounting and dismounting, simplifying maintenance procedures, and reducing downtime.
These bearings offer high radial load carrying capacity and can accommodate moderate axial loads in one direction. They are designed to operate at high speeds with low friction and provide reliable and smooth operation.
In summary, the NUP type cylindrical roller bearing provides excellent radial load capacity, moderate axial load capacity, and axial guidance in one direction. Its separable design enhances ease of installation and maintenance, making it a versatile choice for applications that demand precise axial positioning.
