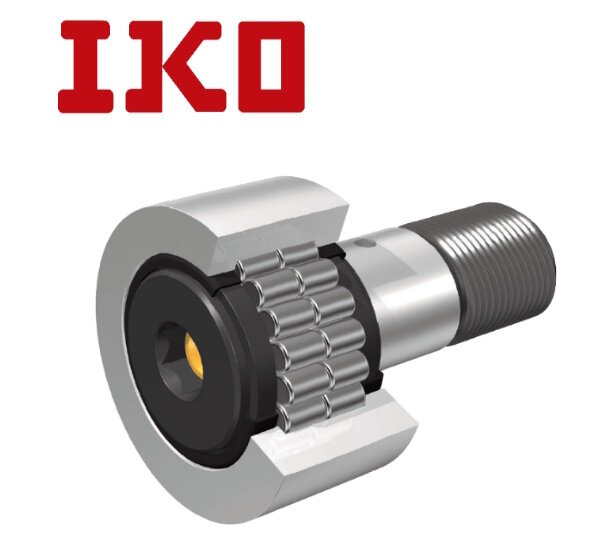

NUCF24-1BR IKO

[tab name='Specification']
Part Number: NUCF24-1BR

Brand: IKO

Bearing Type: Cylindrical Roller Cam Follower

Dimension(s):
Stud Diameter (d₁) = 24mm
Head Diameter (D) = 72mm
Head Length (B) = 30.6mm
Overall Length (B₁) = 80.1mm
Stud Length (B₂) = 49.5mm
Thread Size (G) = M24x1.5mm
Allen Key Size (H) = 12mm
Mounting Dimension (F) = 44mm

Other Dimension(s):
(C) = 29mm
(B₃) = 11mm
(C₁) = 0.8mm
(G₁) = 25mm
(g₁) = 6mm
(g₂) = 4mm

Load Rating(s):
Basic Dynamic Load Rating (N) = 63900
Basic Static Load Rating (N) = 88800
Maximum Allowable Static Load (N) = 57000

Alternative Part Number(s):
NUKR72, MCFD72
[tab name='More Information']
Cylindrical roller type cam followers are mechanical components designed to efficiently convert rotary motion into linear motion or vice versa. These followers are widely used in various industrial applications, including machinery, automation systems, and manufacturing processes, where precise and reliable motion control is required.

The cam follower's design consists of a cylindrical outer shell with a set of rollers held within it. The outer shell has a smooth and hardened surface to minimise friction and wear during operation. The rollers, positioned around the circumference of the outer shell, enable smooth contact with the cam profile, which is a specially contoured track that imparts motion to the cam follower.

The cylindrical roller configuration offers several advantages over other cam follower types, such as needle roller or ball-bearing cam followers. These benefits include increased load-carrying capacity, enhanced rigidity, and the ability to handle heavier radial and axial loads. This makes them suitable for applications with demanding operational requirements.

Moreover, the cylindrical roller type cam followers exhibit reduced wear due to the line contact with the cam profile, resulting in lower maintenance needs and longer service life. The efficient load distribution among the rollers also contributes to improved performance and longevity.

Cam followers, in general, play a vital role in various mechanisms where precise positioning, motion control, or tracking of a particular profile is crucial. Common applications for cylindrical roller type cam followers include conveyors, machine tools, printing presses, packaging machines, and robotic systems, among others.

Manufacturers produce cylindrical roller type cam followers in different sizes and configurations to suit specific application requirements. Users can choose from various materials, coatings, and sealing options to ensure compatibility with different environmental conditions and operational demands.

In summary, cylindrical roller type cam followers are essential components that provide smooth and reliable motion control in various industrial applications, offering high load-carrying capacity, improved durability, and efficient performance.
