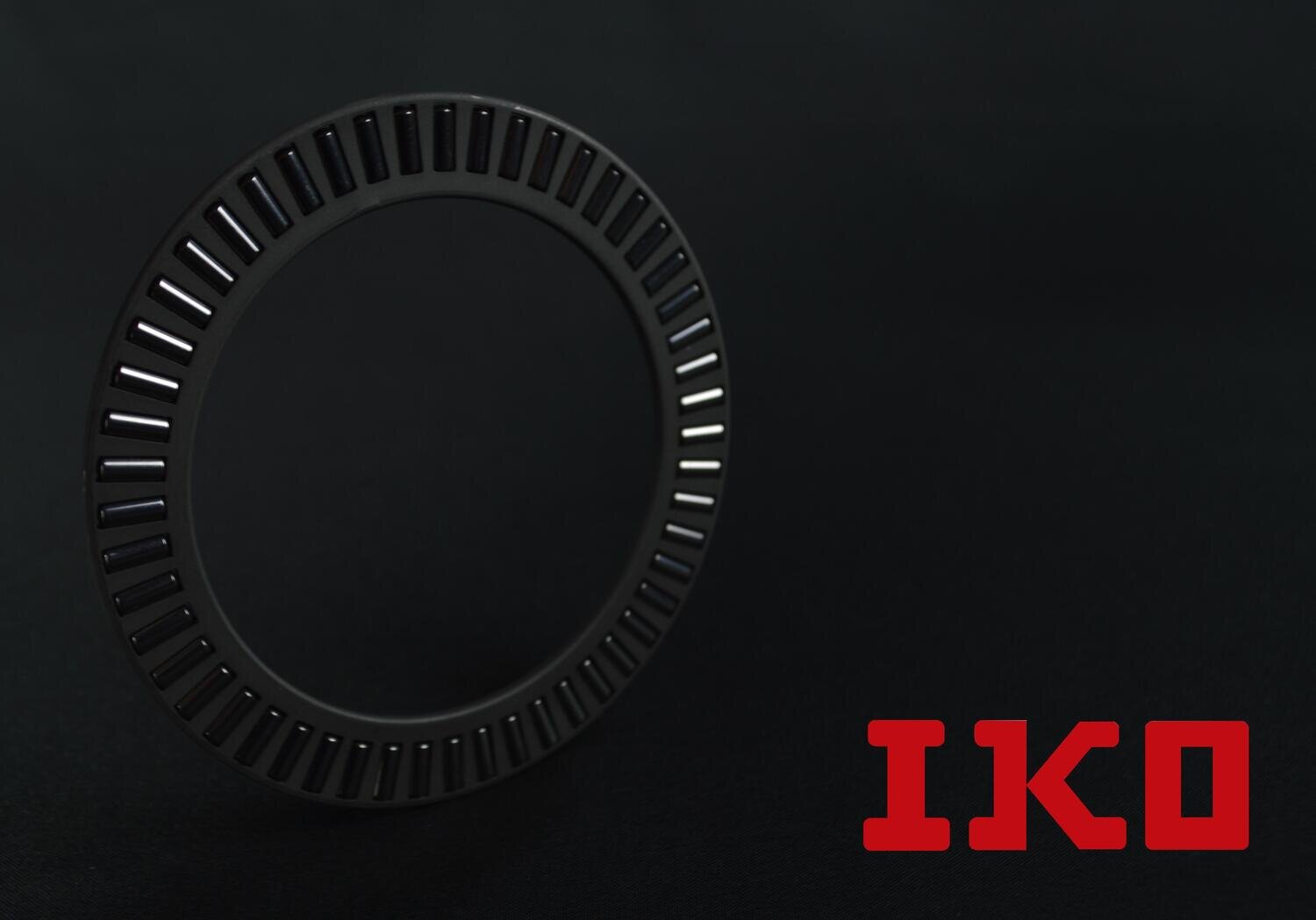

NTB1831 IKO

[tab name='Specification']
Part Number: NTB1831

Brand: IKO

Bearing Type: Needle Roller Thrust Bearing

Dimension(s):
Inside Diameter (d) = 18mm
Outside Diameter (D) = 31mm
Roller Width (Dw) = 2mm

Other Dimension(s):
(Cᵢ) = 21mm
(Cₑ) = 29mm

Load Rating(s):
Basic Dynamic Load Rating (kN) = 9.55
Basic Static Load Rating (kN) = 34.4

Speed Limitation(s):
Allowable Rotational Speed - Oil Lubrication - (r/min) = 10000
Allowable Rotational Speed - Grease Lubrication - (r/min) = 2500

Compatible Thrust Washer = AS1831
Compatible Inner Ring = WS1831
Compatible Outer Ring = GS1831

Alternative Part Number(s):
AXK1831
[tab name='More Information']
Needle roller thrust bearings are specialised bearings designed to handle high axial loads in applications where limited space is available. They belong to the family of thrust bearings and are particularly well-suited for use in compact machinery and equipment.

The unique design of needle roller thrust bearings consists of a series of needle rollers arranged in a cage or retainer. These needle rollers have a cylindrical shape with a significantly smaller diameter compared to their length. This design allows for a high load-carrying capacity while occupying minimal space.

The needle rollers in a thrust bearing are held in place by a cage, which ensures proper spacing and alignment between the rollers. The cage is typically made of steel or plastic and provides guidance for the rollers, preventing them from contacting each other directly.

One notable advantage of needle roller thrust bearings is their ability to handle both axial loads and some radial loads. While primarily designed for axial loads, the needle rollers in these bearings also have some capacity to accommodate limited radial forces.

Needle roller thrust bearings are commonly used in applications such as automotive transmissions, agricultural machinery, construction equipment, and industrial gearboxes. They are particularly useful in applications where space is limited and a high load capacity is required.

Due to the compact design and efficient load-carrying capability of needle roller thrust bearings, they offer excellent performance, reliability, and durability. These bearings are manufactured to tight tolerances and undergo rigorous quality control measures to ensure their precision and functionality.

In summary, needle roller thrust bearings are essential components in machinery and equipment where axial loads need to be efficiently transmitted while minimising space requirements. With their compact design, high load capacity, and versatility in handling both axial and limited radial forces, these bearings provide reliable and effective solutions for various industries and applications.
