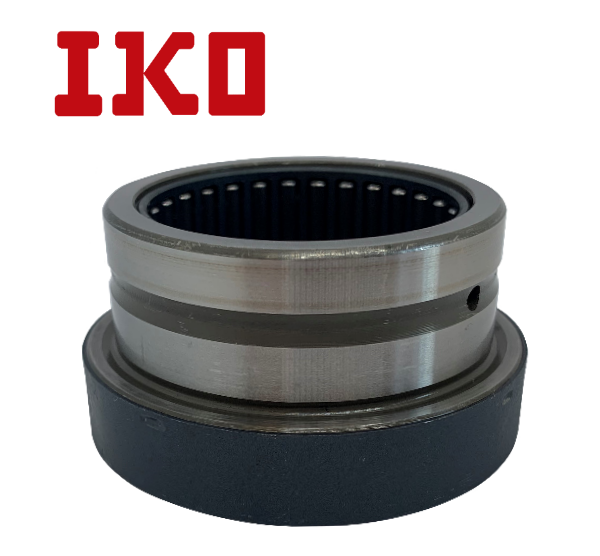

NAX 3530 Z IKO

[tab name='Specification']
Part Number: NAX 3530 Z

Brand: IKO

Bearing Type: Combined Type Needle Roller Bearing with Thrust Ball Bearing - Complete with Dust Cover

Dimension(s):
Inside Diameter (Fw) = 35mm
Outside Diameter of Needle Bearing (D) = 47mm
Outside Diameter of Thurst Ball Bearing (D₁) = 53mm
Overall Length (L) = 30mm
Width of Thrust Ball Bearing (H) = 12mm
Radius (r) = 0.6mm

Load Rating(s):
Basic Dynamic Load Rating - Radial (kN) = 26.9
Basic Dynamic Load Rating - Axial (kN) = 21.2
Basic Static Load Rating - Radial (kN) = 46.2
Basic Static Load Rating - Axial (kN) = 37.6

Allowable Rotational Speed (r/min): 6000

Alternative Part Number(s):
NKX 35 Z, NAXK 35 Z, NKX35Z, NAXK35Z, NAX3530Z
[tab name='More Information']
The NAX Series Combined Needle Bearings are advanced and versatile components that integrate both needle roller bearings and thrust ball bearings into a single unit. These bearings are part of IKO's product lineup and are designed to support complex and dynamic loads in various industrial applications.

Key Features:

Needle Roller and Thrust Ball Bearing Combination: The NAX Series Combined Needle Bearings combine the benefits of needle roller bearings, which provide excellent radial load-carrying capacity, with thrust ball bearings that handle axial loads. This unique combination enables the bearing to support both radial and axial loads simultaneously.

High Load-Carrying Capacity: Due to the combination of needle rollers and thrust ball bearings, NAX Series Bearings offer a high load-carrying capacity, making them suitable for applications with moderate to heavy loads and complex load directions.

Compact Design: Despite their ability to handle significant loads, NAX Series Combined Needle Bearings have a compact and space-saving design. This makes them ideal for applications where mounting space is limited.

Precise Motion Control: The combination of needle rollers and thrust ball bearings ensures smooth and precise motion control, making them suitable for applications that require accurate positioning and motion.

Versatile Configurations: NAX Series Bearings come in various configurations, including different sizes, styles, and cage designs. This flexibility allows engineers to select the most suitable configuration for their specific application requirements.

Corrosion Resistance: Some models of NAX Series Combined Needle Bearings come with corrosion-resistant coatings or seals, ensuring reliable performance in challenging environments or applications exposed to moisture and contaminants.

Wide Range of Applications: These bearings find utility in various industries and applications, including industrial machinery, automotive, aerospace, robotics, and more. They are commonly used in machine tool spindles, gearboxes, robotic arms, and other motion control systems.

In conclusion, NAX Series Combined Needle Bearings offer a sophisticated and adaptable solution for handling both radial and axial loads with precise motion control. With their high load-carrying capacity, compact design, and versatility in configurations, these bearings provide engineers and designers with a dependable component for optimizing the performance of their machinery and equipment. Trust NAX Series Combined Needle Bearings to deliver exceptional results in a diverse range of industrial applications.
