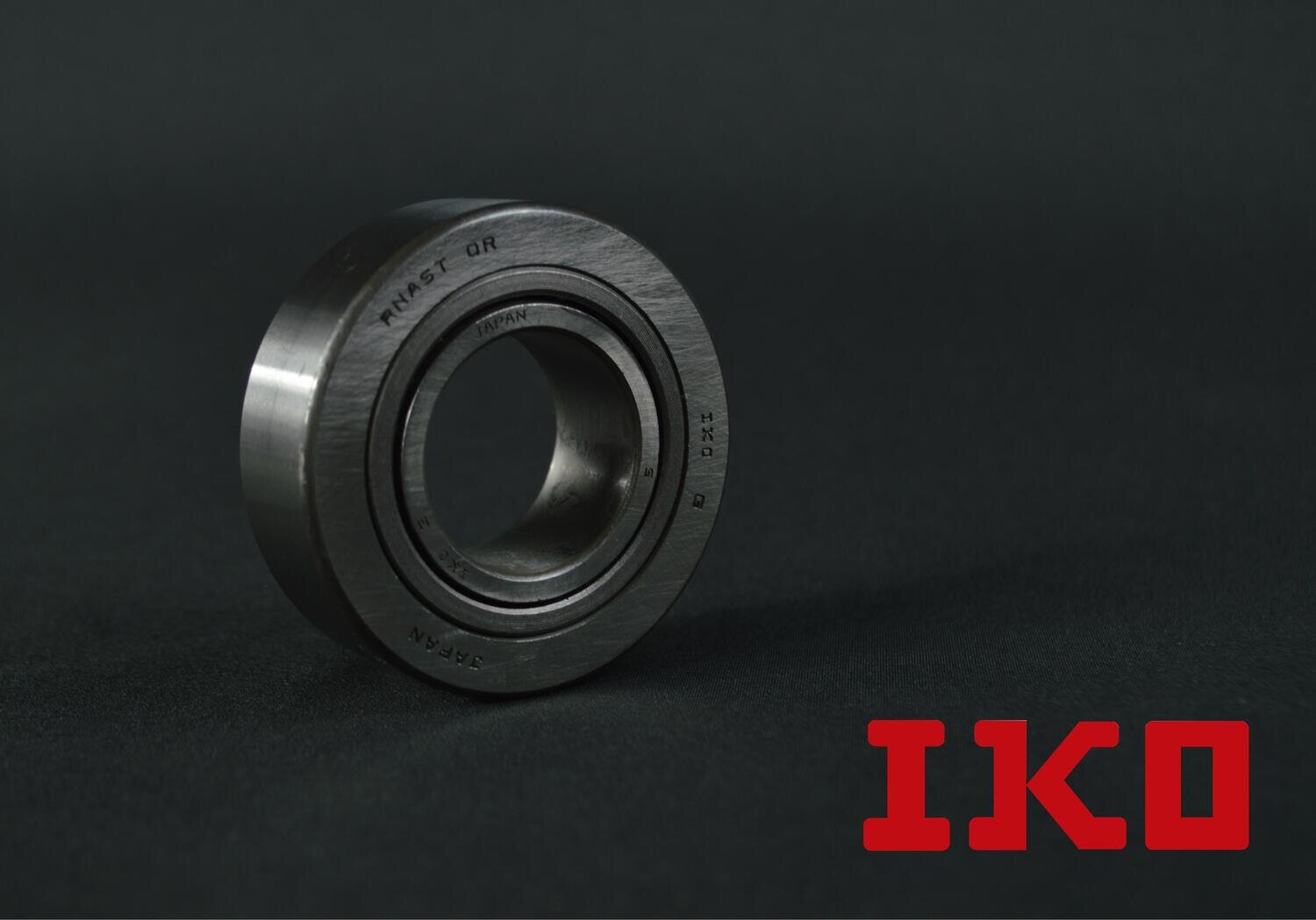

NAST40R IKO
SKU RF-039
£32.87
In stock
1
Product Details
Weight: 0.53 kg
[tab name='Specification']
Part Number: NAST40R
Brand: IKO
Bearing Type: Separable Roller Follower (Complete with Inner Ring)
Dimension(s):
Inside Diameter (d) = 40mm
Outside Diameter (D) = 80mm
Outside Diameter of Inner Ring (Fw) = 50mm
Outer Ring Width (C) = 19.8mm
Width Through Bore (B) = 20mm
Radius (rₛ min) = 1.5mm
Radius (r₁ₛ min) = 1mm
Load Rating(s):
Basic Dynamic Load Rating (N) = 35900
Basic Static Load Rating (N) = 61100
Assembled Inner Ring: LRT405020S
Additional Notes:
This bearing is not provided with pre-packed grease. Please perform proper lubrication before operation.
[tab name='More Information']
IKO Separable Roller Followers with Inner Race are high-quality, precision-engineered components designed to provide smooth and efficient motion in various industrial applications. These followers are part of IKO's comprehensive line of track rollers and are known for their exceptional performance and reliability.
Key Features:
Separable Design: One of the distinguishing features of IKO separable roller followers is their unique design, which allows for easy mounting and dismounting. The separable structure consists of an inner race, roller set, and outer ring, facilitating convenient installation and maintenance processes.
Inner Race: The inclusion of an inner race ensures that the roller set operates with minimum friction and wear. This inner race serves as a guide for the rollers, promoting stable and smooth movement even under heavy loads and challenging operating conditions.
High-Quality Materials: IKO uses premium-grade materials in the manufacturing of their separable roller followers, ensuring durability, high load-carrying capacity, and resistance to wear and corrosion. These components are engineered to withstand the demands of demanding industrial environments.
Precision Engineering: IKO is renowned for its precision engineering, and the separable roller followers are no exception. Each component is manufactured with strict adherence to quality standards, resulting in consistent and reliable performance.
Versatile Applications: IKO separable roller followers find utility in a wide range of applications, including conveyor systems, cam drives, linear motion systems, and various machinery setups. They are particularly well-suited for applications requiring smooth and precise motion, accurate tracking, and minimal noise levels.
Customization: IKO offers a variety of configurations, sizes, and designs to cater to different application requirements. Whether it's the choice of material, seal types, or load capacities, customers can find the right separable roller follower to suit their specific needs.
In conclusion, IKO Separable Roller Followers with Inner Race combine robust construction, precise engineering, and versatility to provide reliable and smooth motion solutions in a wide range of industrial settings. With their separable design and inner race, these roller followers offer convenience during installation and maintenance, making them a popular choice among engineers and designers seeking high-performance motion control components.
