What is a Miniature Cam Follower?
A miniature cam follower is a small mechanical component used in various applications, such as machinery and automation systems. It is designed to track the motion of a cam and transmit it to another mechanism, typically a reciprocating or oscillating part.

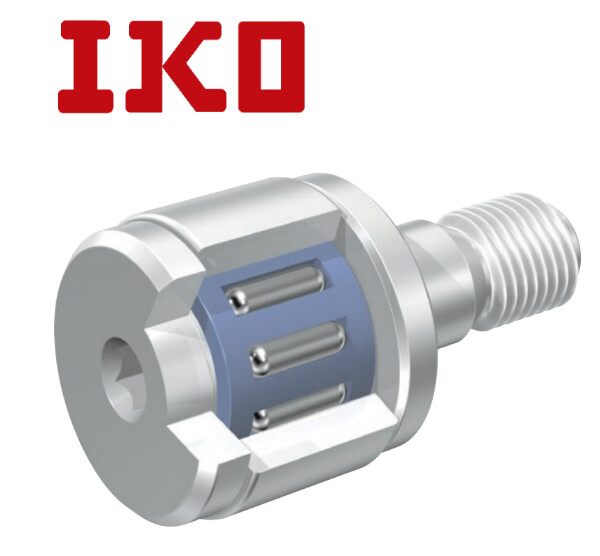

The cam follower consists of a cylindrical body with a roller or needle bearing attached at one end. The roller or needle bearing rolls along the profiled surface of the cam, allowing the follower to move in synchronization with the cam's shape and motion.
Miniature cam followers are specifically designed to be compact in size, making them suitable for applications where space is limited or where precision is required. They are commonly used in industries such as robotics, medical devices, printing machinery, and electronics manufacturing.
What are the benefits to using a Miniature Cam Follower?
Using a miniature cam follower offers several benefits in various applications:
- Compact Size: Miniature cam followers are specifically designed to be small and lightweight, making them ideal for applications where space is limited or weight needs to be minimized.
- High Precision: Miniature cam followers are built with tight tolerances and precise manufacturing, allowing for accurate tracking of cam profiles. This precision is crucial in applications requiring consistent and reliable motion transmission.
- High Load Capacity: Despite their small size, miniature cam followers are capable of handling significant loads. They are engineered with robust materials and bearing designs to withstand the forces exerted during operation.
- Low Friction: The roller or needle bearing attached to the cam follower reduces friction between the follower and the cam surface. This low-friction design improves efficiency, reduces wear and tear, and contributes to smooth and precise motion.
- Versatility: Miniature cam followers can be used in a wide range of applications, including robotics, automation, printing machinery, and medical devices. They are adaptable and can accommodate different cam profiles and motion requirements.
- Long Service Life: With proper lubrication and maintenance, miniature cam followers can have a long service life. They are often designed to withstand demanding operating conditions, including high speeds and frequent cycles.
- Cost-Effective: Despite their precision and performance, miniature cam followers are generally cost-effective. Their small size often translates to lower material and manufacturing costs compared to larger cam followers.
Overall, the use of miniature cam followers provides efficient, reliable, and precise motion transmission in a compact and versatile package, making them a valuable component in various industries and applications.
What are Miniature Cam Followers used for?
Miniature cam followers are used in a variety of applications where precise motion transmission and compact size are essential. Some common uses of miniature cam followers include:
- Robotics: Miniature cam followers are employed in robotic systems to translate the motion of cams into precise movements of robot arms, grippers, or other robotic components.
- Automation Systems: They are used in automation equipment, such as pick-and-place machines, indexing mechanisms, and packaging machinery, to convert the motion of cams into controlled movements.
- Printing Machinery: Miniature cam followers play a crucial role in printing machines, ensuring accurate and synchronized movements of print heads, paper feeders, and other components.
- Medical Devices: They are utilized in medical equipment, such as surgical robots, laboratory automation systems, and diagnostic devices, for precise and controlled motion in small-scale applications.
- Electronics Manufacturing: Miniature cam followers are incorporated into electronics assembly machines to facilitate the precise placement of components during the manufacturing process.
- Precision Instruments: They find application in precision instruments, such as optical devices, measurement tools, and scientific equipment, where accurate and controlled motion is necessary.
- Packaging Machinery: Miniature cam followers are employed in packaging equipment to control the movement of conveyor belts, sorting mechanisms, and filling systems.
- Automotive Industry: They can be used in various automotive applications, including engine components, suspension systems, and seat adjustments, where compact size and precise motion are required.
- Aerospace Industry: Miniature cam followers find their place in aerospace applications, such as actuators, control surfaces, and mechanisms in satellites and unmanned aerial vehicles (UAVs).
- Industrial Machinery: They are used in a wide range of industrial machinery, such as textile machines, woodworking equipment, and metalworking machines, for precise and synchronized motion.
These are just a few examples of the diverse applications where miniature cam followers are employed. Their compact size, precision, and load-bearing capabilities make them a valuable component in numerous industries requiring controlled motion transmission.
Why Buy Easy Miniature Cam Followers from Tapered Roller Bearings?
Tapered Roller Bearings have the largest stock of Miniature Cam Followers in-stock, ready for despatch. All orders are usually despatched same-day for next-day delivery to anywhere in the UK. International delivery is also available to anywhere in the world, offering competitively priced export shipping.
Tapered Roller Bearings also have an unrivalled product knowledge with the ability to offer technical advice and product specifications.
Our relationship with IKO (Nippon Thompson) also enables us to offer the most competitive pricing on all IKO branded products online.
What if I need an Miniature Cam Follower that isn’t in stock?
Tapered Roller Bearings are the UK’s leading IKO distributor. In the unlikely event that we don’t have your IKO product in-stock, we do have access to IKO worldwide inventory, offering short deliveries from their sites in the United Kingdom, Europe, and Japan.
What if I need an Easy Mounting Type Cam Follower that isn’t on your store?
If you’re looking for an item that isn’t currently listed on our store, please email us at sales@taperedrollerbearings.co.uk, or call us on (+44) 0333 321 4908 and we’d be happy to assist you with your enquiry. We have access to a large network of bearing manufacturer’s stock, all available on short deliveries.
Cam Follower FAQ’s
How do I choose the correct cam follower?
To choose the correct cam follower, follow these steps:
- Understand the application: Determine the specific requirements of your application, such as load capacity, operating conditions (speed, temperature), and environmental factors (dust, moisture).
- Identify the cam type: Different cam followers are designed for specific cam types, such as flat, radial, or crowned cams. Determine the type of cam you are using to ensure compatibility.
- Consider load capacity: Calculate the maximum load that the cam follower will experience during operation. Choose a cam follower with a load capacity that exceeds this value to ensure reliability and longevity.
- Select the appropriate size: Consider the cam follower's diameter, length, and stud size to ensure it fits within the available space and aligns correctly with the cam.
- Evaluate lubrication requirements: Determine whether the cam follower requires lubrication or if it operates in a self-lubricating manner. Consider the lubrication method and intervals to ensure proper maintenance.
- Check sealing options: Depending on the application, you might require a cam follower with appropriate sealing mechanisms to protect against contaminants or retain lubrication.
- Consider special features: Some cam followers offer additional features, such as eccentric or adjustable studs, high-temperature resistance, or corrosion resistance. Assess whether any special features are necessary for your application.
- Consult technical resources: Refer to manufacturers' catalogues, datasheets, or technical support to gather detailed information about different cam follower options, including specifications and performance data.
- Compare alternatives: Evaluate multiple cam follower options based on their suitability, quality, availability, and cost. Consider factors such as durability, reputation of the manufacturer, and compatibility with other components.
- Seek expert advice if needed: If you're unsure or have specific requirements, consult with an engineer, supplier, or industry expert who can provide guidance and help you make an informed decision. Email us at sales@taperedrollerbearings.co.uk for any technical questions.
By following these steps, you can choose the correct cam follower that meets your application's needs for performance, reliability, and longevity.
How do you fit a cam follower?
To fit a cam follower, follow these steps:
- Prepare the cam follower: Ensure the cam follower is the correct size and type for your application. Inspect it for any damage or wear.
- Clean the camshaft: Before installation, clean the camshaft surface where the cam follower will be fitted. Remove any debris, oil, or residue that may affect the performance.
- Lubricate the cam follower: Apply a thin layer of lubricant recommended by the manufacturer to the contacting surface of the cam follower. This helps reduce friction and ensures smooth operation.
- Align the cam follower: Position the cam follower over the camshaft, ensuring proper alignment with the cam lobes. Refer to the manufacturer's instructions or diagrams for the correct orientation.
- Press or slide the cam follower into place: Depending on the design, you may need to press or slide the cam follower onto the camshaft. Use appropriate tools or techniques to ensure a secure fit. Be cautious not to damage any delicate components during installation.
- Verify proper installation: After fitting the cam follower, double-check that it is securely seated on the camshaft. Ensure there is no excessive play or misalignment. Rotate the camshaft manually to confirm smooth movement of the cam follower.
- Reassemble and test: Once the cam follower is correctly fitted, reassemble any components that were removed for access. Conduct a thorough test to ensure the cam follower operates as intended and that there are no unusual noises or issues.
Remember to consult the specific instructions provided by the manufacturer for your particular cam follower and engine model, as the installation process may vary slightly.
