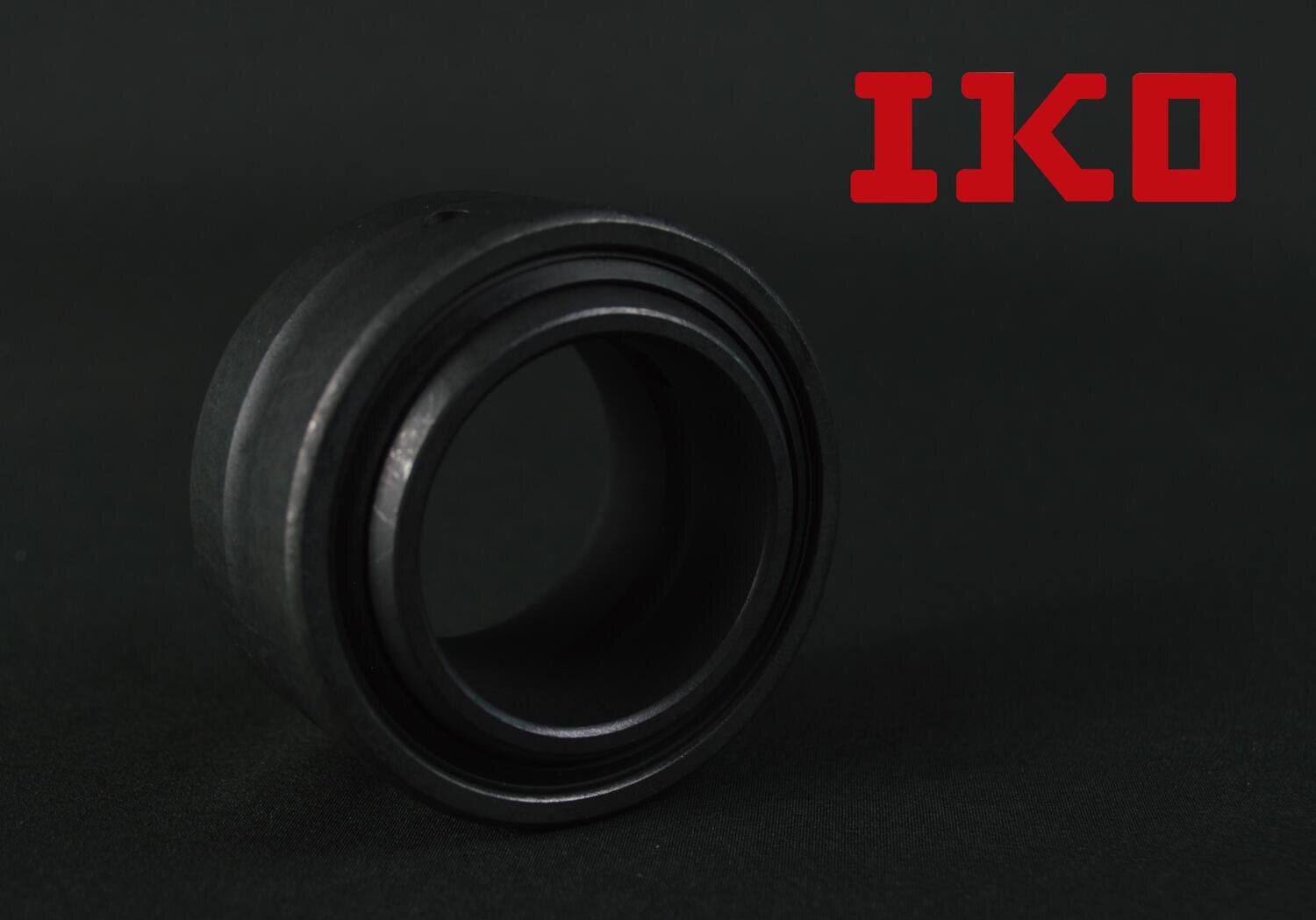

GE180GS2RS IKO

[tab name='Specification']
Part Number: GE180GS2RS

Brand: IKO

Bearing Type: Spherical Bushing

Dimension(s):
Inside Diameter (d) = 180mm
Outside Diameter (D) = 290mm
Outer Width (C) = 100mm
Width Through Bore (B) = 155mm
Radius (r₁) = 1.1mm
Radius (r₂) = 1.1mm

Load Ratings:
Basic Dynamic Load Rating (kN) = 2450
Basic Static Load Rating (kN) = 14700

Permissible Tilting Angle Degree (a₁) = 13°

Operating Temperature Range: -30°C to +80°C


Alternative Part Number(s):
GE 180 FO 2RS, GE 180 GS 2RS
[tab name='More Information']
GE type spherical plain bearings are a specific category of bearings designed to accommodate rotational and oscillating movements between mechanical components. These bearings are commonly used in applications where there is a need for efficient load transmission and reduced friction.

The GE type spherical plain bearings feature a spherical inner ring with a convex outer surface and a matching concave outer ring. This design allows for multidirectional movement, making them suitable for various types of articulating joints and linkages. The spherical shape enables the bearing to accommodate misalignment and compensate for shaft deflection, providing enhanced flexibility and reliability in dynamic applications.

These bearings are typically composed of an inner ring, an outer ring, and a sliding contact surface. The inner ring is usually made of hardened and ground steel, while the outer ring is made of high-quality steel or other suitable materials. The sliding contact surface, located between the inner and outer rings, is often lined with a self-lubricating material or a separate lubrication system to minimize friction and wear.

GE type spherical plain bearings come in a range of sizes and load capacities to meet diverse industrial requirements. They are commonly used in applications such as construction and agricultural machinery, automotive suspensions, material handling equipment, hydraulic cylinders, and many other mechanical systems where articulation and rotational motion are essential.

These bearings are known for their durability, long service life, and ability to operate under heavy loads and harsh operating conditions. They offer low friction and excellent resistance to wear, ensuring smooth and reliable operation even in demanding environments.

Overall, GE type spherical plain bearings provide a reliable solution for applications that require high articulation angles, load-carrying capacity, and resistance to misalignment. Their versatility and performance make them a preferred choice for engineers and manufacturers seeking efficient and dependable bearing solutions.
