FPL204SSN TRB

[tab name='Specification']
Part Number: FPL204SSN

Brand: TRB

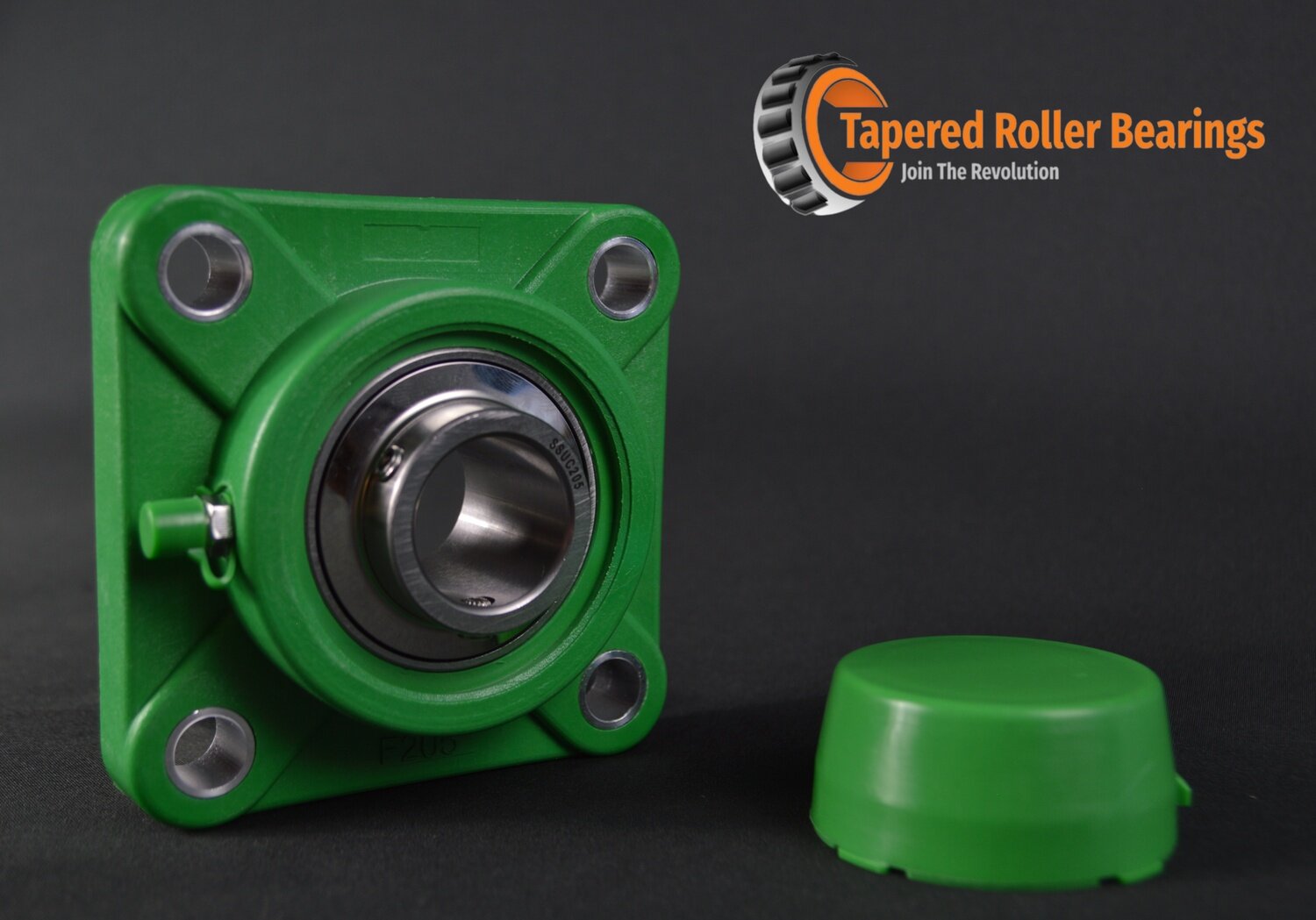

Bearing Type: Green Thermoplastic 4 Bolt Flange Unit

Dimension(s):
Shaft Size (d) = 20mm
Overall Square (a) = 86mm
Bolt Hole Centre Dimension (e) = 64mm
Depth of Housing Base (g) = 13mm
Overall Housing Width (p) = 28mm
Bolt Hole Diameter (S) = 11mm
Overall Unit Width (Z) = 36mm
Width Through Bore (Bᵢ) = 31mm

Load Rating(s):
Basic Dynamic Load Rating (kN) = 10
Basic Static Load Rating (kN) = 6.3

Tightening Torque (N-m): 18

Alternative Part Number(s):
TP-FPL204, SUCFPL204, SUCF204, TP-SUCF204
[tab name='More Information']
Thermoplastic 4-bolt flange bearings are innovative and versatile components designed to provide reliable support and motion control in various industrial applications. These bearings are engineered using advanced thermoplastic materials, which offer exceptional durability, corrosion resistance, and overall performance characteristics.

The 4-bolt flange design of these bearings ensures secure and stable mounting, enabling them to effectively handle radial and thrust loads. This configuration also simplifies installation and maintenance, making them a preferred choice for a wide range of machinery and equipment setups.

Thermoplastic 4-bolt flange bearings are well-suited for environments where traditional metal bearings may be susceptible to corrosion or chemical exposure. The thermoplastic construction not only enhances their resistance to corrosive substances, but also reduces their weight compared to metal alternatives, contributing to more efficient and agile machinery operation.

These bearings are known for their smooth and quiet operation, reducing noise levels and promoting a comfortable working environment. They are also designed to operate with minimal friction, leading to energy savings and prolonged equipment lifespan.

One of the key advantages of thermoplastic 4-bolt flange bearings is their adaptability to a wide range of temperatures, making them suitable for both high- and low-temperature applications. This versatility extends their usability across industries such as food processing, pharmaceuticals, automotive manufacturing, and many others.

In summary, thermoplastic 4-bolt flange bearings combine robust construction, corrosion resistance, ease of installation, and efficient operation to provide a reliable and durable solution for motion control and support needs across various industrial settings.
