Crossed Roller Ways

What is a crossed roller way?

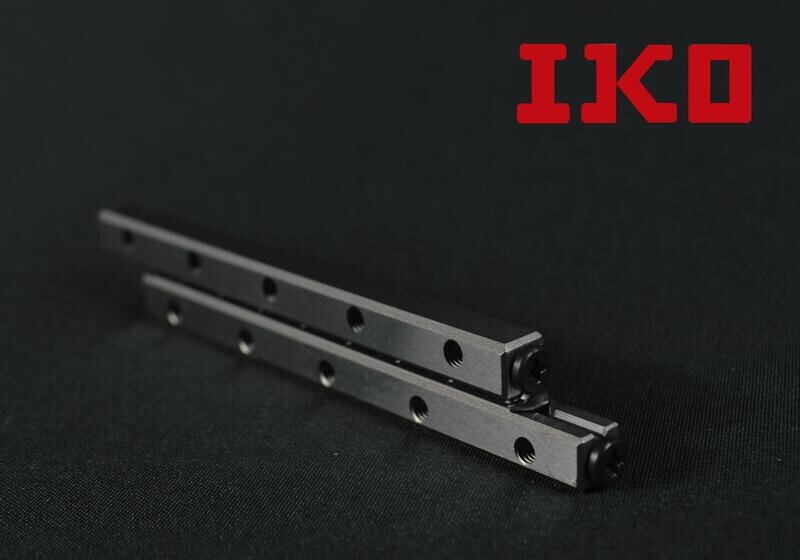

Crossed roller ways, also known as crossed roller bearings or crossed roller slides, are a type of linear motion bearing system that provide high-precision, smooth and stable linear motion.

These ways consist of two sets of crossed cylindrical rollers that are preloaded in a 90-degree V-shaped raceway. This design allows for the rollers to alternately cross each other, which provides a large contact area and distributes the load evenly over the entire contact surface. This results in a very high load capacity and high rigidity, which is ideal for applications that require precise positioning and stability under heavy loads.

Crossed roller ways are commonly used in industrial machinery, automation equipment, and semiconductor manufacturing applications. They offer many advantages, such as high accuracy, low friction, low noise, and long service life. Additionally, they are able to withstand high speeds and accelerations without compromising performance.

Overall, crossed roller ways are an excellent choice for applications that require precise linear motion and high load capacity.

What are the benefits to using a crossed roller way?

Crossed roller ways offer several benefits over other types of linear motion bearings. Some of these benefits include:

1). High precision: Crossed roller ways have a very high level of accuracy and repeatability, which makes them ideal for applications that require precise positioning and motion control.

2). High load capacity: The crossed roller design distributes the load over a larger contact surface, allowing for a higher load capacity than other types of linear motion bearings.

3). High rigidity: The preloaded rollers in a crossed roller way provide a high level of rigidity, which is important for maintaining positional accuracy and preventing unwanted motion.

4). Low friction: The rollers in a crossed roller way have a rolling contact with the raceway, which results in low friction and smooth motion.

5). Low noise: Because of the rolling contact between the rollers and raceway, crossed roller ways produce less noise than other types of linear motion bearings.

6). Long service life: Crossed roller ways are designed to withstand high loads and high speeds, which results in a long service life.

7). Compact design: Crossed roller ways have a compact design, which makes them ideal for applications with limited space.

Overall, the benefits of using crossed roller ways include high precision, high load capacity, high rigidity, low friction, low noise, long service life, and a compact design, which make them ideal for a wide range of industrial and automation applications.
