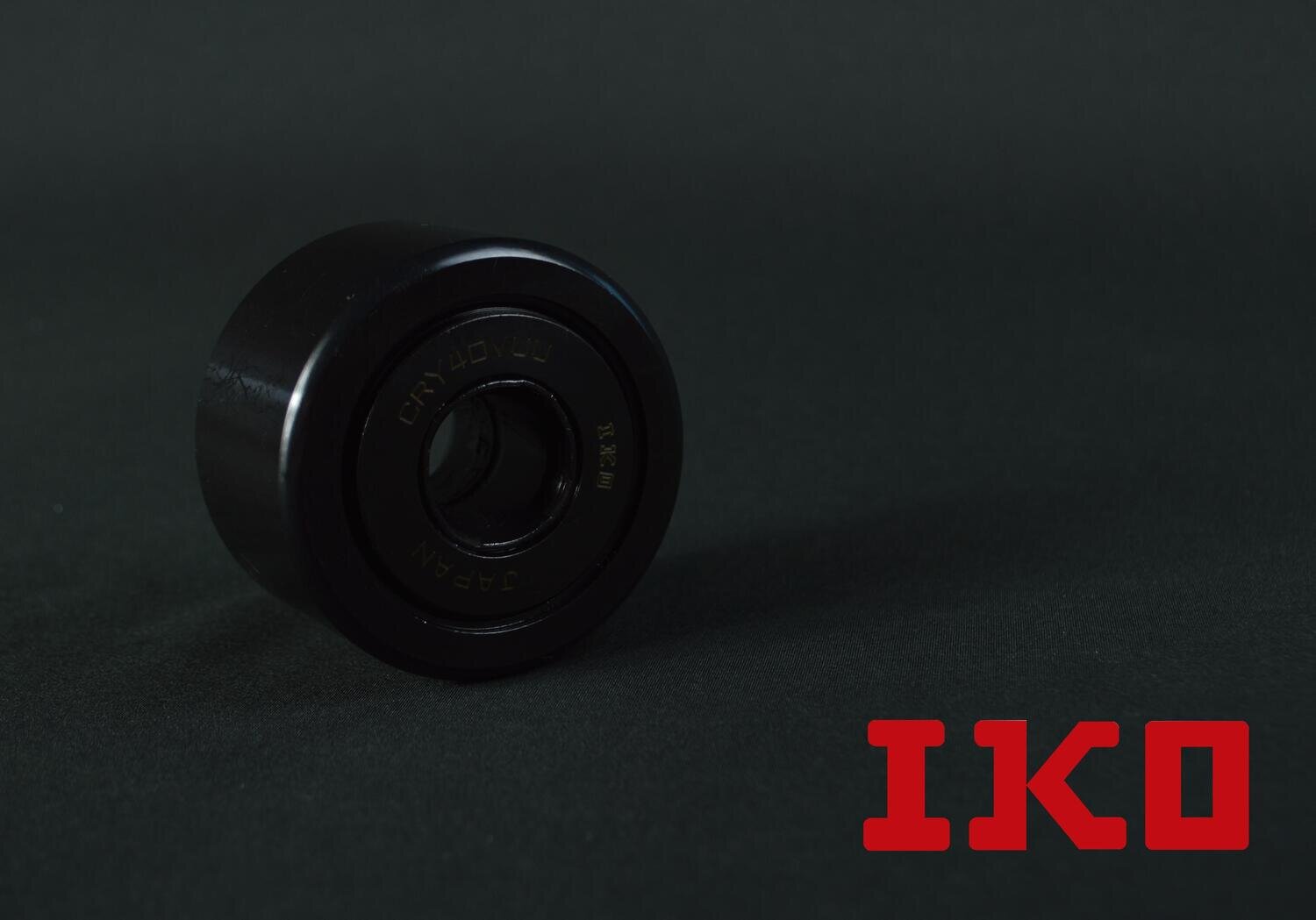

CRY26VUUR IKO

[tab name='Specification']
Part Number: CRY26VUUR

Brand: IKO

Bearing Type: Non-Separable, Full Complement Roller Follower

Dimension(s):
Inside Diameter (d) = 0.4375"
Outside Diameter (D) = 1.625"
Outer Ring Width (C) = 0.875"
Width Through Bore (B) = 0.9375"

Shaft Diameter Limitation(s):
Push Fit (min) = 11.095mm
Push Fit (max) = 11.105mm
Drive Fit (min) = 11.11mm
Drive Fit (max) = 11.12mm
Press Fit (min) = 11.115mm
Press Fit (max) = 11.125mm

Other Dimension(s):
(a) = 28.8mm
(R) = 500 (20)

Load Rating(s):
Basic Dynamic Load Rating (N) = 28200
Basic Static Load Rating (N) = 40100
[tab name='More Information']
IKO non-separable, full complement, imperial roller followers are precision-engineered mechanical components designed to provide smooth and precise motion control in various industrial applications. These roller followers are part of IKO's comprehensive line of motion control products, known for their high quality and reliable performance.

The non-separable design of these roller followers means that the inner and outer rings are solidly connected, creating a compact and sturdy unit. The full complement feature refers to the roller followers having a maximum number of cylindrical rollers without a cage to separate them. This design maximises the load-carrying capacity of the roller followers, allowing them to handle high radial loads while maintaining a relatively small profile.

IKO imperial roller followers are designed to adhere to the imperial measurement system, primarily using inches rather than metric units like millimeters. This makes them suitable for applications in regions or industries that primarily utilise the imperial measurement system.

The combination of non-separable and full complement features results in roller followers that excel at handling heavy loads, making them well-suited for applications where high load-carrying capacity is essential.

These roller followers find use in various industrial applications, including material handling equipment, cam mechanisms, conveyor systems, and other motion control systems where precise and reliable motion is critical.

To ensure consistent quality and performance, IKO employs advanced manufacturing techniques and rigorous quality control measures during the production of their non-separable, full complement, imperial roller followers. Each roller follower undergoes thorough testing to meet stringent performance standards, providing customers with reliable and durable motion control solutions.

In summary, IKO non-separable, full complement, imperial roller followers are precision-engineered motion control components known for their robustness and high load-carrying capacity. With their compact design and adherence to the imperial measurement system, these roller followers serve as reliable and efficient solutions for various industrial applications requiring dependable and smooth motion control.
