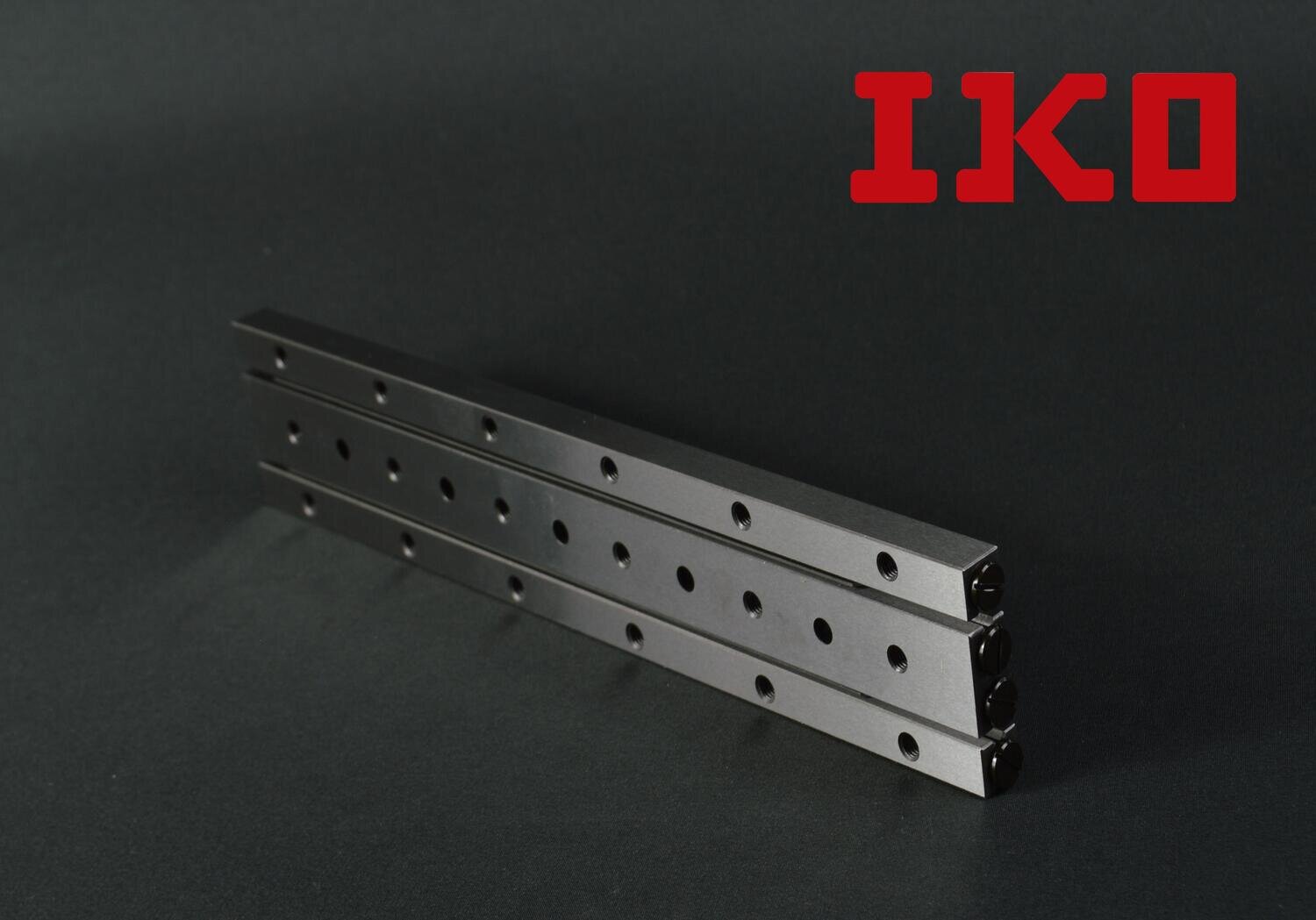

CRWM2-180 IKO
CRW-227
£557.68
In stock
1
Product Details
Brand:
IKO
Overall Length (mm):
180
Overall Height (mm):
24
Width (mm):
6.5
[tab name='Specification']
Part Number: CRWM2-180
Brand: IKO
Bearing Type: Module Type Crossed Roller Way
Boundary Dimension(s):
(A) = 24mm
(H) = 6.5mm
L (n x F) = 180mm (11x15mm)
(i) = 0.5mm
Roller Cage Dimension(s):
(Dw) = 2mm
(R) = 149.6mm
Number of Rollers (Z) = 37
(p) = 4mm
(e) = 2.8mm
Mounting Dimension(s):
(W₁) = 19mm
(W₂) = 11mm
(E₁) = 7.5mm
(M) = M3
(d₁) = 2.55mm
(d₂) = 3mm
(h) = 2mm
(D) = 3mm
Dimension "D" Tolerance = +0.010 - 0 mm
(t) = 1.5mm
Load Rating(s):
Basic Dynamic Load Rating (N) = 293
Basic Static Load Rating (N) = 294
Allowable Load (N) = 97.9
Additional Notes:
The load rating values are based on a single cylindrical roller.
[tab name='More Information']
Module type crossed roller ways are precision linear motion guides that consist of modular components designed for flexibility and ease of integration. These guides are commonly used in various industrial applications that require precise linear motion control, such as machine tools, automation systems, robotics, and semiconductor manufacturing.
The module type crossed roller ways are composed of two main components: the rail module and the carriage module. The rail module consists of the guide rails, which have a V-shaped groove, and the roller bearings. The carriage module includes the carriage block that houses the rollers and is designed to glide smoothly along the guide rails.
These crossed roller ways offer excellent rigidity and accuracy due to the precise manufacturing of the modular components. The rollers are arranged in a cross pattern, providing increased contact points and larger contact areas, resulting in improved load distribution and enhanced rigidity. The modular design allows for easy assembly and disassembly, making maintenance and replacement of components straightforward.
Module type crossed roller ways are available in different sizes and configurations to accommodate varying load capacities and mounting requirements. They can be customized with additional features such as seals, lubrication options, and integrated linear encoders for enhanced performance and protection against contamination.
Overall, module type crossed roller ways provide a versatile and reliable solution for precise linear motion control. Their modular design allows for easy integration into existing systems and offers flexibility in design and application. With their high rigidity, accuracy, and smooth movement, module type crossed roller ways are suitable for demanding industrial applications that require precise positioning and smooth motion.
[tab name='Shipping']
United Kingdom
Providing your required item is in-stock at one of our UK branches, your goods will be shipped on the same day if ordered before 16:00 (BST).
Most of our items are held in-stock at one of our UK based branches, however some items or larger quantities may be subject to a longer preparation or delivery time. If this extended delivery time applies to your product, we will notify you as soon as possible. You will then have the opportunity to request a full refund if your order is no longer required.
Orders exceeding £100 value will qualify for free shipping (UK Mainland Only).
International
Providing your required item is in-stock at one of our UK branches, your goods will be shipped on the same day if ordered before 13:00 (BST).
Most of our items are held in-stock at one of our UK based branches, however some items or larger quantities may be subject to a longer preparation or delivery time. If this extended delivery time applies to your product, we will notify you as soon as possible. You will then have the opportunity to request a full refund if your order is no longer required.
Shipping costs are calculated at checkout - just add your required items to the basket and fill in your delivery details to view the price for your shipment.
We currently export bearings, power transmission and linear motion products to over 100 countries worldwide, offering express shipments for deliveries in as little as 3 days.
[tab name='Returns']
Returns are accepted within a 14-day period, and goods will only be accepted if the following criteria is met:
• Goods are still in the original, undamaged packaging
• The item has not been used, fitted or modified
• You have notified us no later than 14 days since receipt of goods
Any products or quantities that have been sourced specifically to complete your order will be exempt from our standard returns policy, and will be subject to handling charges. The rate of the handling charge is dependent on our suppliers’ current rates.
Products that are ordered in error can also be returned, however the incurred costs for shipping will not be refunded.
Once inspection of goods has been carried out, refunds will be made to the credit / debit card or PayPal account that was used to make the initial purchase.
If any more information is required, please feel free to call or email our customer support team, and we’d be happy to assist.
