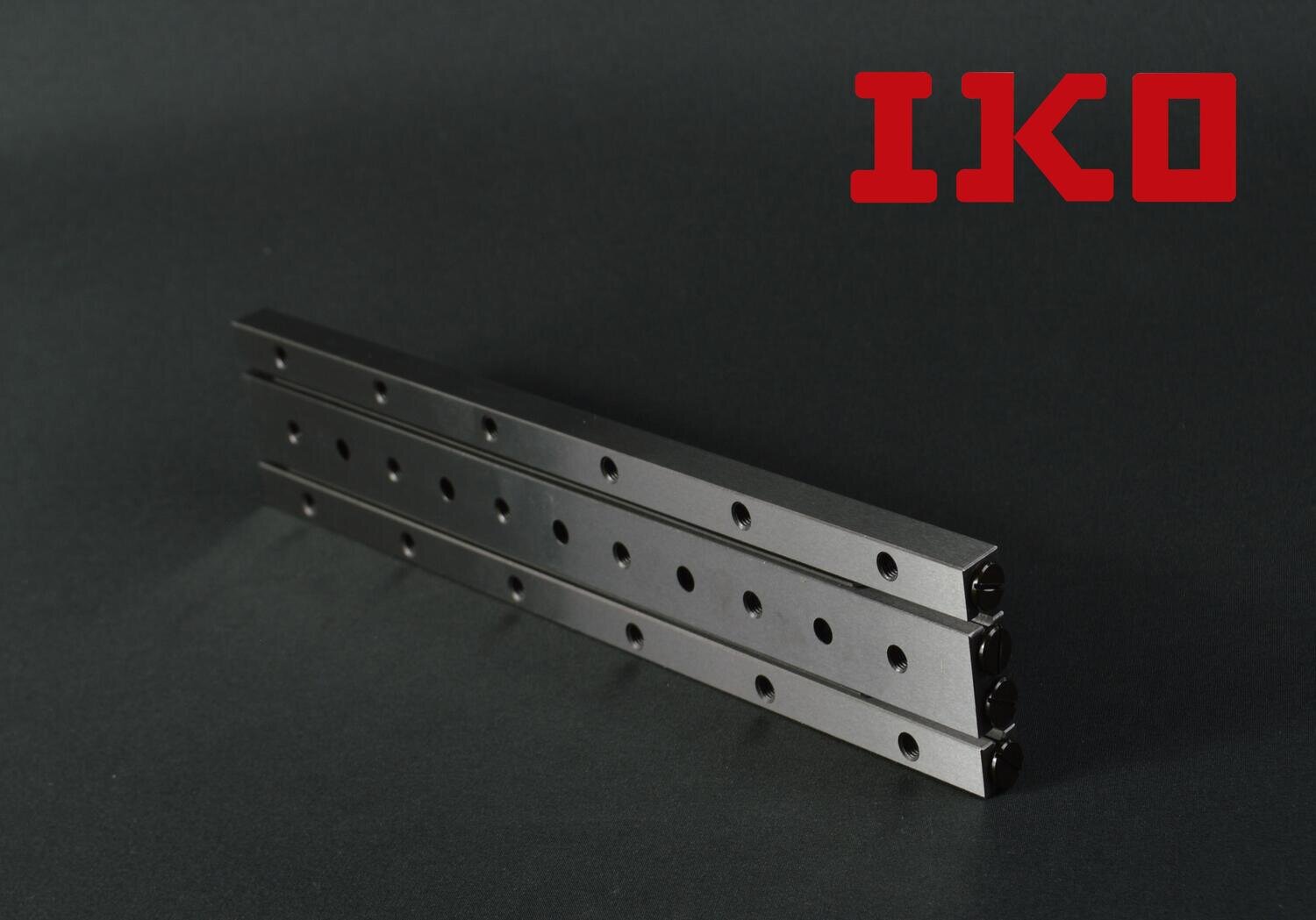

CRWM1-30 IKO
SKU CRW-211
£150.74
In stock
1
Product Details
Weight: 0.02 kg
[tab name='Specification']
Part Number: CRWM1-30
Brand: IKO
Bearing Type: Module Type Crossed Roller Way
Boundary Dimension(s):
(A) = 17mm
(H) = 4.5mm
L (n x F) = 30mm (2x10mm)
(i) = 0.5mm
Roller Cage Dimension(s):
(Dw) = 1.5mm
(R) = 25.5mm
Number of Rollers (Z) = 8
(p) = 3mm
(e) = 2.25mm
Mounting Dimension(s):
(W₁) = 13.4mm
(W₂) = 7.8mm
(E₁) = 5mm
(M) = M2
(d₁) = 1.65mm
(d₂) = 2mm
(h) = 1.4mm
(D) = 2mm
Dimension "D" Tolerance = +0.010 - 0 mm
(t) = 1.7mm
Load Rating(s):
Basic Dynamic Load Rating (N) = 125
Basic Static Load Rating (N) = 120
Allowable Load (N) = 39.8
Additional Notes:
The load rating values are based on a single cylindrical roller.
[tab name='More Information']
Module type crossed roller ways are precision linear motion guides that consist of modular components designed for flexibility and ease of integration. These guides are commonly used in various industrial applications that require precise linear motion control, such as machine tools, automation systems, robotics, and semiconductor manufacturing.
The module type crossed roller ways are composed of two main components: the rail module and the carriage module. The rail module consists of the guide rails, which have a V-shaped groove, and the roller bearings. The carriage module includes the carriage block that houses the rollers and is designed to glide smoothly along the guide rails.
These crossed roller ways offer excellent rigidity and accuracy due to the precise manufacturing of the modular components. The rollers are arranged in a cross pattern, providing increased contact points and larger contact areas, resulting in improved load distribution and enhanced rigidity. The modular design allows for easy assembly and disassembly, making maintenance and replacement of components straightforward.
Module type crossed roller ways are available in different sizes and configurations to accommodate varying load capacities and mounting requirements. They can be customized with additional features such as seals, lubrication options, and integrated linear encoders for enhanced performance and protection against contamination.
Overall, module type crossed roller ways provide a versatile and reliable solution for precise linear motion control. Their modular design allows for easy integration into existing systems and offers flexibility in design and application. With their high rigidity, accuracy, and smooth movement, module type crossed roller ways are suitable for demanding industrial applications that require precise positioning and smooth motion.
