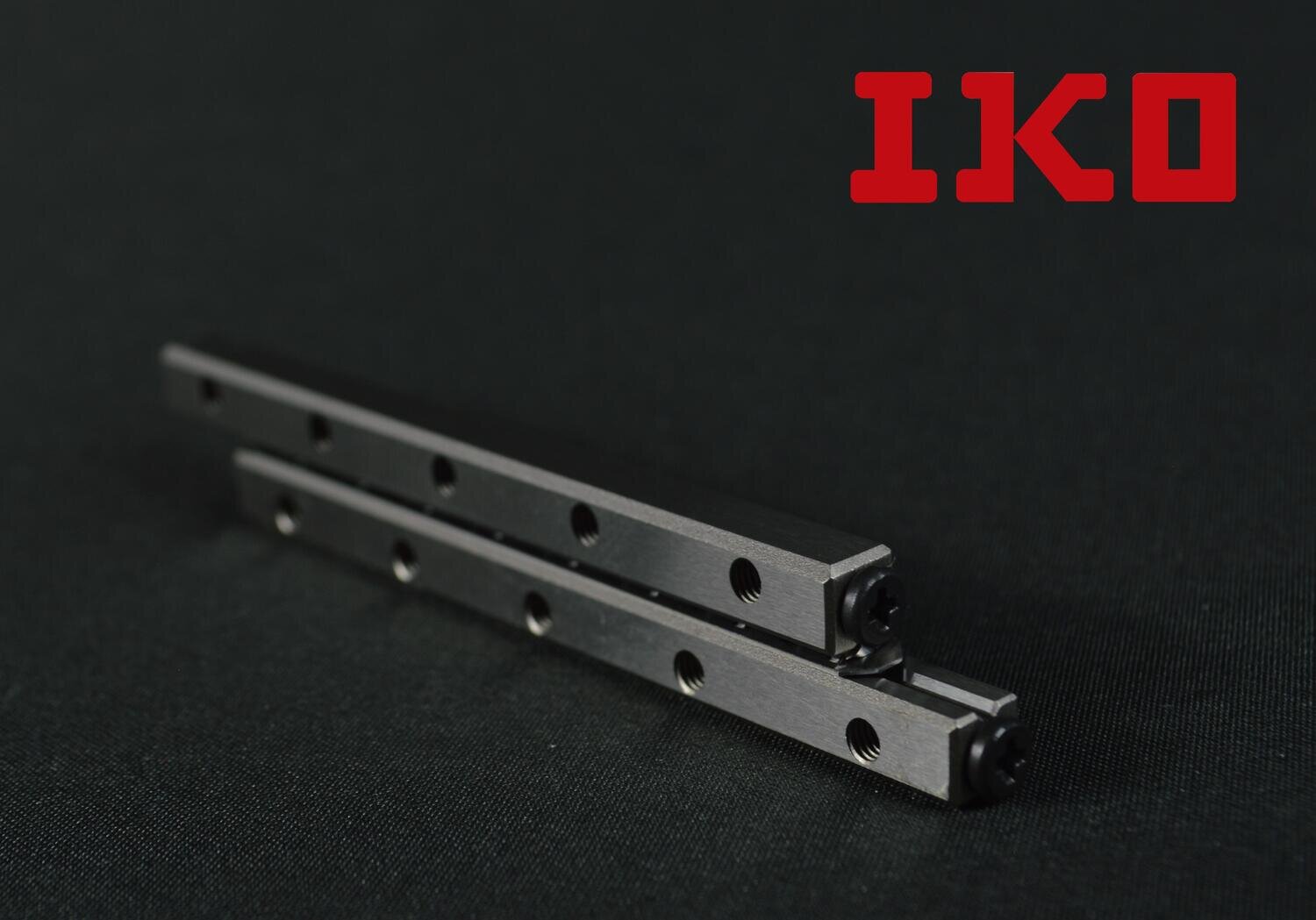

CRWG4-80 IKO
SKU CRW-019
£271.71
In stock
1
Product Details
Weight: 0.26 kg
[tab name='Specification']
Part Number: CRWG4-80
Brand: IKO
Bearing Type: Anti-Creep Cage Crossed Roller Way
Boundary Dimension(s):
(A) = 22mm
(H) = 11mm
L (n x F) = 80 mm (1x40mm)
(E) = 20mm
Roller Cage Dimension(s):
(Dw) = 4mm
(R) = 73mm
Number of Rollers (Z) = 8
(p) = 7mm
(e) = 5mm
Mounting Dimension(s):
(W) = 10mm
(g) = 4.5mm
(M) = M5
(d₁) = 4.3mm
(d₂) = 7.5mm
(h) = 4.1mm
(t) = 2mm
Maximum Stroke Length: 14 mm
Load Rating(s):
Basic Dynamic Load Rating (N) = 6690
Basic Static Load Rating (N) = 9400
Allowable Load (N) = 3130
Additional Notes:
This is the value when a combination of four ways and two roller cages are used in parallel arrangement.
[tab name='More Information']
CRWG Series Crossed Roller Ways are precision linear motion guides designed to provide high rigidity, accuracy, and smooth movement in various industrial applications. They are commonly used in machinery and equipment that require precise linear motion control, such as machine tools, robotics, semiconductor manufacturing, and medical devices.
The CRWG Series features a unique design that utilizes crossed rollers arranged in a V-shaped configuration. This arrangement allows for a larger contact area between the rollers and the guide rail, resulting in improved load distribution and increased rigidity. The crossed roller structure also provides excellent moment and torsional rigidity, making the CRWG Series suitable for applications with high moments and moments of inertia.
These crossed roller ways offer high accuracy and repeatability, thanks to their meticulous manufacturing process and precision-ground surfaces. The rollers are preloaded to minimize clearance and ensure smooth motion with minimal friction. The use of high-quality materials and advanced manufacturing techniques results in low friction, low noise, and excellent wear resistance.
The CRWG Series is available in various sizes and configurations to accommodate different load capacities and mounting requirements. They can be used in both horizontal and vertical orientations, making them versatile for a wide range of applications. Additionally, the series can be customized with additional features such as seals, lubrication options, and integrated linear encoders for enhanced performance and protection against contamination.
Overall, CRWG Series Crossed Roller Ways offer a reliable and efficient solution for precise linear motion control, making them an ideal choice for demanding industrial applications where accuracy, rigidity, and smooth motion are essential.
