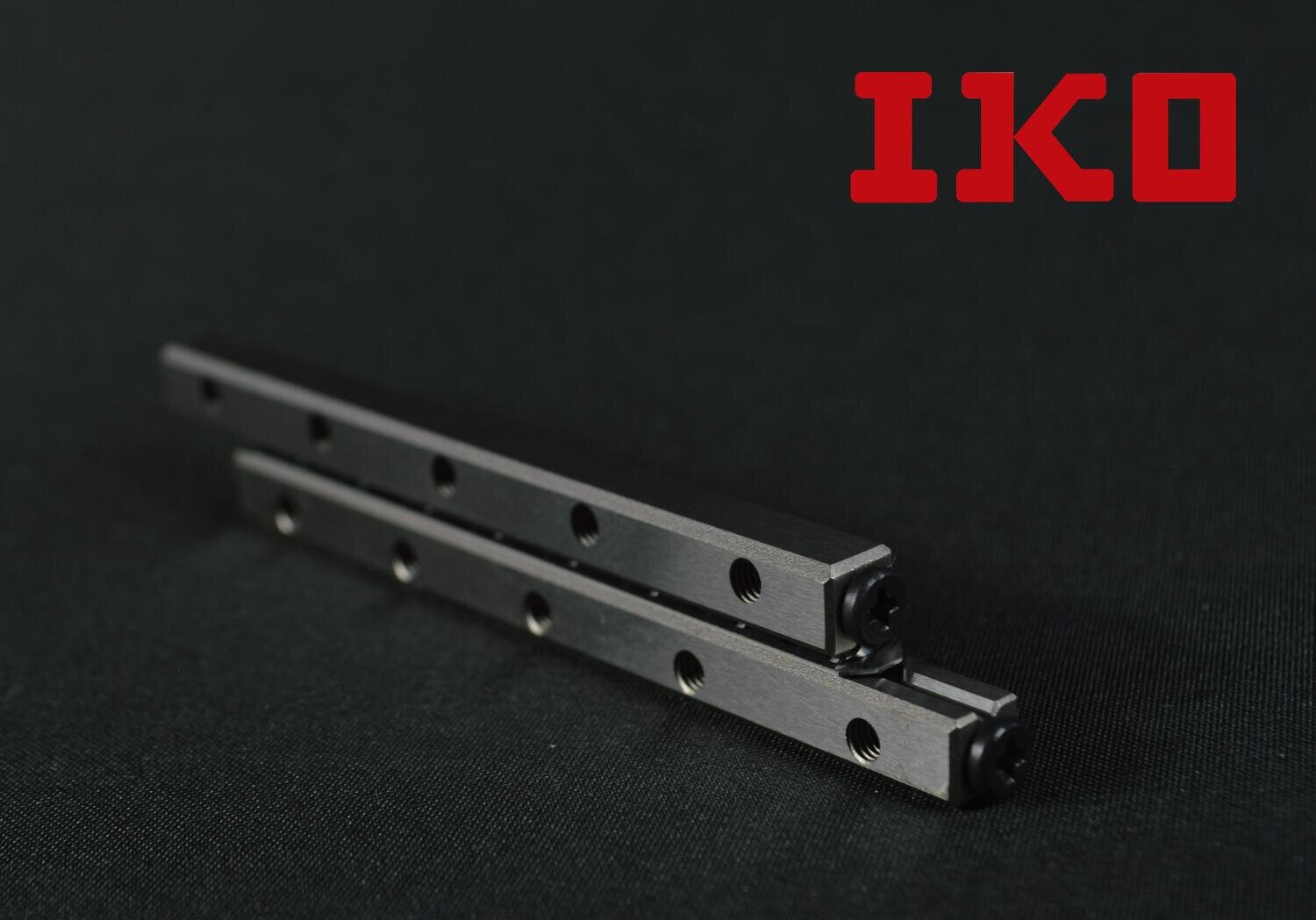

CRW4-280SL IKO
SKU CRW-126
£590.53
In stock
1
Product Details
Weight: 0.96 kg
[tab name='Specification']
Part Number: CRW4-280SL
Brand: IKO
Bearing Type: Crossed Roller Way
Boundary Dimension(s):
(A) = 22mm
(H) = 11mm
L (n x F) = 280mm (6x40mm)
(E) = 20mm
Roller Cage Dimension(s):
(Dw) = 4mm
(R) = 227mm
Number of Rollers (Z) = 32
(p) = 7mm
(e) = 5mm
Mounting Dimension(s):
(W) = 10mm
(g) = 4.5mm
(M) = M5
(d₁) = 4.3 mm
(d₂) = 7.5mm
(h) = 4.1mm
(t) = 2mm
Load Rating(s):
Basic Dynamic Load Rating (N) = 1230
Basic Static Load Rating (N) = 1180
Allowable Load (N) = 392
Additional Notes:
The load rating values are based on a single cylindrical roller.
[tab name='More Information']
The CRW Series Crossed Roller Ways are high-precision linear motion guides designed to deliver exceptional rigidity, accuracy, and smooth movement in a wide range of industrial applications. These guides are widely used in machinery and equipment that require precise linear motion control, including machine tools, automation systems, robotics, and semiconductor manufacturing.
The CRW Series utilises a unique crossed roller design that features cylindrical rollers arranged in a cross pattern between the guide rails. This configuration allows for increased contact points and larger contact areas, resulting in superior load distribution and enhanced rigidity. The crossed roller structure also provides excellent moment and torsional stiffness, making the CRW Series suitable for applications with high moments and moments of inertia.
These crossed roller ways offer outstanding accuracy and repeatability due to their meticulous manufacturing process and precision-ground surfaces. The rollers are preloaded to minimize clearance, ensuring smooth motion with minimal friction. The combination of high-quality materials and advanced manufacturing techniques results in low friction, low noise operation, and exceptional wear resistance.
The CRW Series is available in various sizes and configurations to accommodate different load capacities and mounting requirements. They can be used in both horizontal and vertical orientations, offering versatility for a wide range of applications. Additionally, the series can be customized with optional features such as seals, lubrication options, and integrated linear encoders for enhanced performance and protection against contamination.
In summary, the CRW Series Crossed Roller Ways provide a reliable and efficient solution for precise linear motion control. With their high rigidity, accuracy, and smooth movement, they are an excellent choice for demanding industrial applications where precise positioning and smooth motion are critical.
