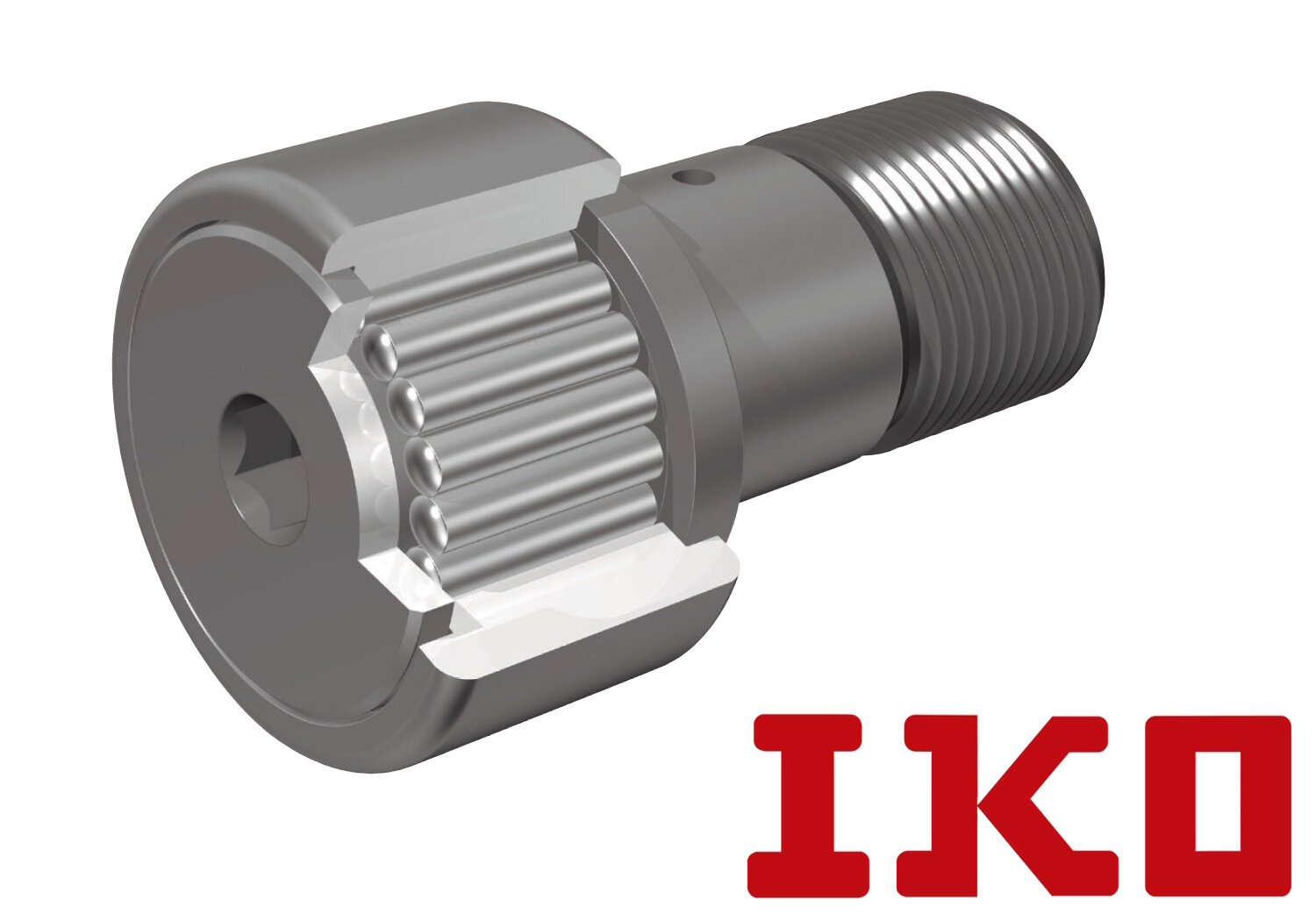

CRH18VR IKO
Home/Store/Bearings: Efficiency & Performance/Cam Followers (Roller Followers)/Heavy Duty Type Imperial Cam Followers (CRH)
SKU CAM-00812
£0.00
In stock
1
Product Details
Weight: 0.11 kg
[tab name='Specification']
Part Number: CRH18VR
Brand: IKO
Bearing Type: Heavy Duty Type Imperial Cam Follower
Dimension(s):
Stud Diameter (d₁) = 0.625"
Head Diameter (D) = 1.125"
Head Length (B) = 0.7"
Stud Length (B₂) = 1"
Overall Length (B₁) = 1.7"
Thread Depth (G₁) = 0.5"
Thread Size (G) = 5/8-18 UNF
Allen Key Size (H) = Not Applicable
Radius (r) = Not Applicable
Mounting Dimension (f) = 18.256mm
Other Dimension(s):
(C) = 0.625"
(C₁) = 1.588mm
(B₃) = 0.25"
(g₁) = 0.1875"
(g₂) = 0.09375"
(R) = 300
Load Rating(s):
Basic Dynamic Load Rating (N) = 13100
Basic Static Load Rating (N) = 22700
Maximum Tightening Torque (N-m) = 57.8
Alternative Part Number(s): CCFH 1.1/8, CCFH1.1/8, CCFH1 1/8
[tab name='More Information']
The CRH series of IKO heavy-duty cam followers represents a specialized line of robust and reliable bearing components designed to excel in demanding industrial applications. These cam followers are engineered to handle high radial and axial loads while providing smooth and precise motion in challenging environments.
Built with precision and using top-quality materials, the CRH series of IKO heavy-duty cam followers feature a stud-type design with a thick-walled outer ring, ensuring exceptional strength and durability. The stud is equipped with a threaded shaft or a hexagonal socket, facilitating easy installation and adjustment for optimal positioning within the application.
The outer ring of CRH cam followers is designed with a hardened and ground raceway, offering a smooth and wear-resistant track for the roller elements. The roller elements, usually needle-shaped or cylindrical, are arranged in a unique formation around the stud, maintaining contact with the outer ring's raceway. This design minimises friction and maximises rolling efficiency, resulting in reduced energy losses and enhanced overall performance.
To ensure prolonged service life and reliability, the CRH series cam followers are often equipped with specialised seals or shields. These protective features safeguard the internal components from contamination, debris, and moisture, making the cam followers highly suitable for use in harsh and dirty operating conditions.
The CRH series of IKO heavy-duty cam followers finds wide application in various industries, including industrial machinery, material handling equipment, automation systems, and more. They are commonly used in conveyor systems, cam mechanisms, and other applications that require precise and dependable motion control.
Moreover, the CRH series cam followers offer a diverse range of sizes, configurations, and designs, providing users with the flexibility to select the ideal cam follower to meet specific load and environmental requirements. They can also be further customised with different seal types, stud options, and roller materials to optimise performance in various operating conditions.
In summary, the CRH series of IKO heavy-duty cam followers stands out as durable and high-performance bearing components designed for challenging industrial environments. With their robust construction, precision engineering, and customisation options, they are a preferred choice for applications that demand reliable and efficient motion control solutions.
[tab name='Shipping']
United Kingdom
Providing your required item is in-stock at one of our UK branches, your goods will be shipped on the same day if ordered before 16:00 (BST).
Most of our items are held in-stock at one of our UK based branches, however some items or larger quantities may be subject to a longer preparation or delivery time. If this extended delivery time applies to your product, we will notify you as soon as possible. You will then have the opportunity to request a full refund if your order is no longer required.
Orders exceeding £100 value will qualify for free shipping (UK Mainland Only).
International
Providing your required item is in-stock at one of our UK branches, your goods will be shipped on the same day if ordered before 13:00 (BST).
Most of our items are held in-stock at one of our UK based branches, however some items or larger quantities may be subject to a longer preparation or delivery time. If this extended delivery time applies to your product, we will notify you as soon as possible. You will then have the opportunity to request a full refund if your order is no longer required.
Shipping costs are calculated at checkout - just add your required items to the basket and fill in your delivery details to view the price for your shipment.
We currently export bearings, power transmission and linear motion products to over 100 countries worldwide, offering express shipments for deliveries in as little as 3 days.
[tab name='Returns']
Returns are accepted within a 14-day period, and goods will only be accepted if the following criteria is met:
• Goods are still in the original, undamaged packaging
• The item has not been used, fitted or modified
• You have notified us no later than 14 days since receipt of goods
Any products or quantities that have been sourced specifically to complete your order will be exempt from our standard returns policy, and will be subject to handling charges. The rate of the handling charge is dependent on our suppliers’ current rates.
Products that are ordered in error can also be returned, however the incurred costs for shipping will not be refunded.
Once inspection of goods has been carried out, refunds will be made to the credit / debit card or PayPal account that was used to make the initial purchase.
If any more information is required, please feel free to call or email our customer support team, and we’d be happy to assist.
