CRBT205AC1 IKO

[tab name='Specification']
Part Number: CRBT205 AC1

Brand: IKO

Bearing Type: Super Slim Type Crossed Roller Bearing

Dimension(s):
Inside Diameter (d) = 20mm
Outside Diameter (D) = 31mm
Width (B) = 5mm
Radius (r) = 0.15mm
Mounting Dimension (dₐ) = 22.5mm
Mounting Dimension (Dₐ) = 27mm

Load Rating(s):
Basic Dynamic Load Rating (N) = 1400
Basic Static Load Rating (N) = 1290

Clearance:
Clearance Type = C1
Clearance value min (µ m) = 0
Clearance Value max (µ m) = 20

Operating Temperature: -20°c to +100°c
[tab name='More Information']

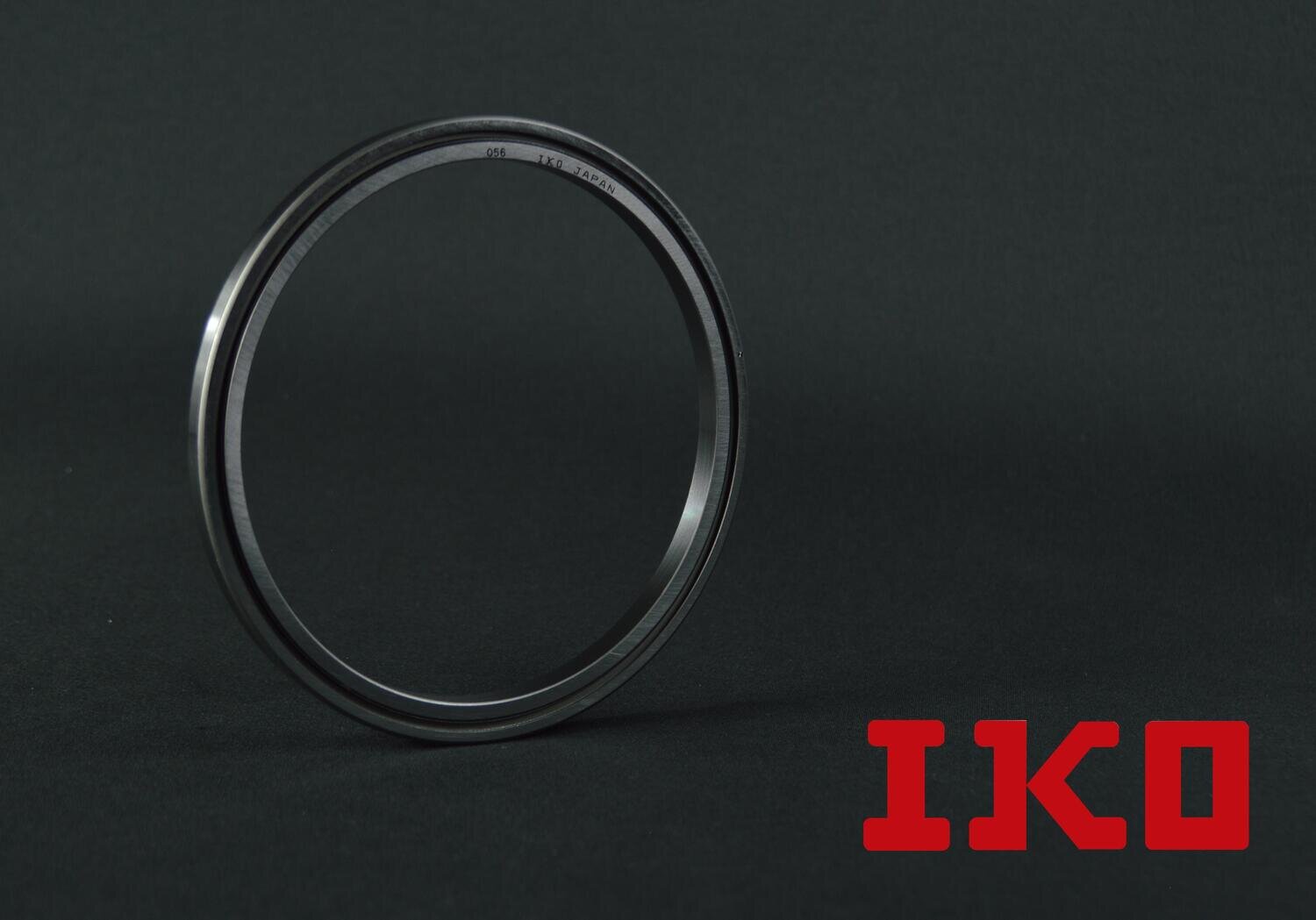

CRBT Super Slim Type Crossed Roller Bearings are precision-engineered mechanical components designed to provide high rotational accuracy and load-bearing capabilities in an ultra-thin and lightweight design. These bearings belong to the Crossed Roller Bearings family and are specifically optimised for applications where space optimisation is critical.

The CRBT Super Slim Type Crossed Roller Bearings feature an exceptionally slim profile, making them ideal for applications with extremely limited installation space or weight restrictions. They consist of an inner and outer ring with a cage holding a precise arrangement of cylindrical rollers that are crossed at a 90-degree angle. This unique structure allows for efficient load distribution, resulting in enhanced load-carrying capacity and reduced frictional losses.

The ultra-thin design of CRBT Super Slim Type Crossed Roller Bearings not only saves valuable space but also reduces the overall weight of the system. This is particularly advantageous in applications where low inertia and high precision are essential, such as robotic arms, compact rotary stages, and optical devices.

Despite their slim profile, these bearings offer exceptional rotational accuracy and rigidity. They are manufactured to stringent quality standards using high-quality materials, such as case-hardened chrome steel or stainless steel, ensuring long-term durability and corrosion resistance. The precise machining and assembly processes involved in their production contribute to their reliable performance and smooth operation.

CRBT Super Slim Type Crossed Roller Bearings find applications in various industries, including robotics, automation, semiconductor manufacturing, medical devices, and precision instruments. They are commonly used in applications such as pick-and-place robots, wafer handling systems, optical scanners, and measuring devices, where space optimization and high precision are critical.

In summary, CRBT Super Slim Type Crossed Roller Bearings offer exceptional rotational accuracy and load-bearing capabilities in an ultra-thin and lightweight form factor. Their compact and lightweight design, combined with high rigidity and durability, make them an excellent choice for applications with strict space constraints. These bearings provide reliable and precise motion control, contributing to the overall performance and efficiency of compact mechanical systems.
