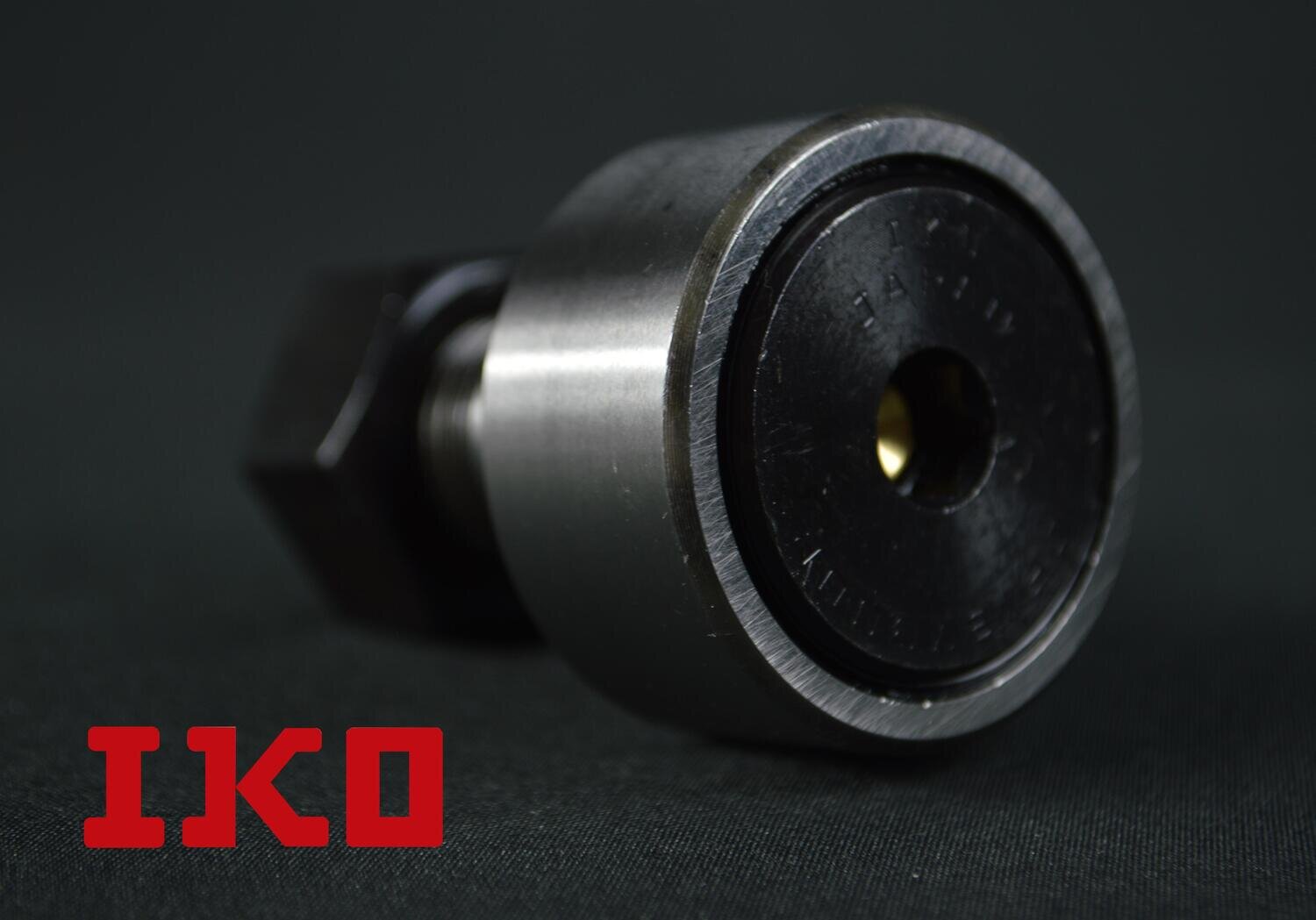

CFE10BR IKO

[tab name='Specification']
Part Number: CFE10BR

Brand: IKO

Bearing Type: Eccentric Type Cam Follower

Dimension(s):
Outside Diameter of Eccentric Collar (dₑ) = 13mm
Length of Eccentric Collar (B₃) = 10.5mm
Head Diameter (D) = 22mm
Head Length (B) = 13.2mm
Overall Length (B₁) = 36.2mm
Stud Length (B₂) = 23mm
Thread Size (G) = M10x1.25
Allen Key Size (H) = 4mm
Radius (rₛ min) = 0.3mm
Mounting Dimension (F) = 16mm

Other Dimension(s):
(C) = 12mm
(C₁) = 0.6mm
(G₁) = 12.5mm
(g₁) = Not Applicable
Eccentricity (ε) = 0.4mm

Load Rating(s):
Basic Dynamic Load Rating (N) = 5430
Basic Static Load Rating (N) = 6890
Maximum Allowable Static Load (N) = 6890

Maximum Tightening Torque (N-m): 13.8
[tab name='More Information']
Eccentric type cam followers are mechanical devices used to convert rotary motion into linear motion or vice versa in a wide range of industrial applications. They are designed with a unique eccentric shape, allowing for precise and controlled adjustments of the follower's position relative to the cam profile.

The construction of an eccentric cam follower typically consists of a cylindrical outer shell that houses a set of rollers or needle bearings. The eccentric feature of the cam follower is a non-concentric bore, which means that the center of the follower does not align with the center of the outer shell. Instead, the centerline is offset from the geometric center, creating an eccentricity.

This eccentricity enables the user to adjust the radial position of the cam follower concerning the cam profile. By rotating the outer shell, the follower's position can be fine-tuned, allowing for precise control over linear displacement or angular movement. This adjustability makes eccentric cam followers particularly useful in applications where accurate positioning, alignment, or preload adjustments are critical.

One common use of eccentric type cam followers is in machinery and equipment that requires precise alignment, such as in conveyor systems, printing presses, and packaging machines. They are also utilised in applications where tensioning, guidance, or positioning of moving parts is necessary.

Eccentric cam followers are known for their ease of installation and maintenance. With the ability to make on-the-fly adjustments without disassembling the system, operators can quickly optimise performance and compensate for wear and tear over time. This feature significantly reduces downtime and ensures the system operates at its best efficiency.

Manufacturers produce eccentric type cam followers in various sizes and load-carrying capacities to accommodate different application requirements. They are available in both stud and yoke styles to suit various mounting configurations and industry-specific needs.

Overall, eccentric type cam followers offer precise motion control and adjustability, making them valuable components in industrial systems that demand accurate positioning, alignment, and control. Their unique design simplifies installation and maintenance while ensuring optimal performance and reliability in a wide range of mechanical applications.
