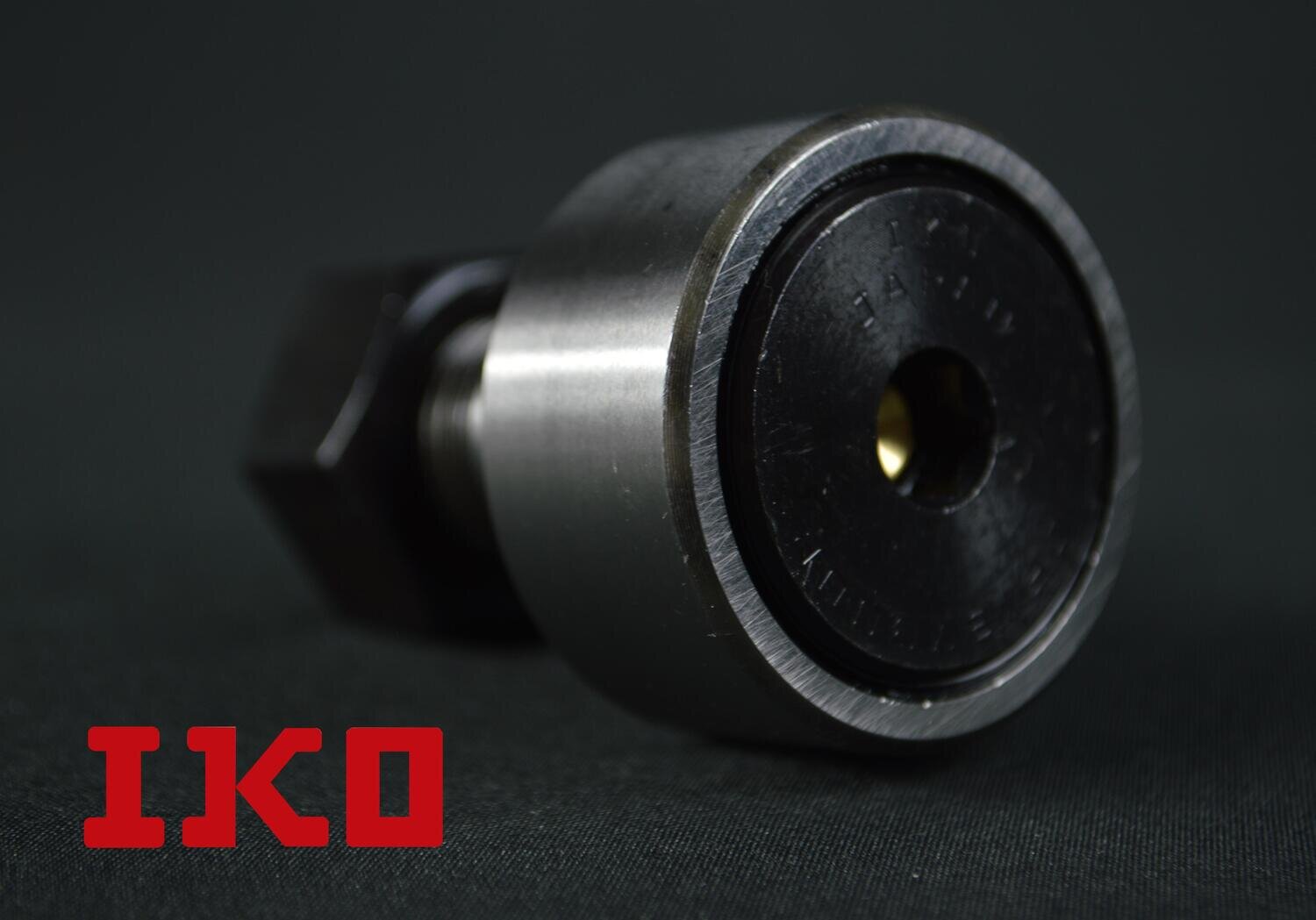

CF12 WBUUR IKO

[tab name='Specification']
Part Number: CF12 WBUUR

Brand: IKO

Bearing Type: Thrust Disk Type Cam Follower

Dimension(s):
Stud Diameter (d₁) = 12mm
Head Diameter (D) = 30mm
Thread Size (G) = M12X1.5
Thread Length (G₁) = 13mm
Head Length (B) = 15.2mm
Overall Length (B₁) = 40.2mm
Allen Key Size (H) = 6mm
Mounting Dimension (F) = 21mm

Other Dimension(s):
(C) = 14mm
(C₁) = 0.6mm
(B₂) = 25mm
(B₃) = 6mm
(g₁) = 4mm
(g₂) = 3mm

Load Rating(s):
Basic Dynamic Load Rating (N) = 7910
Basic Static Load Rating (N) = 9790
Maximum Allowable Static Load (N) = 9790
[tab name='More Information']
Thrust disk type cam followers, also known as thrust plate cam followers or disk cam followers, are a specialised type of mechanical component designed to transmit axial thrust loads while providing smooth and precise motion within a wide range of applications. These cam followers play a crucial role in various industries, including manufacturing, automotive, aerospace, and machinery.

Key characteristics and features of thrust disk type cam followers include:

Design: Thrust disk type cam followers consist of a disk-shaped rolling element or follower that moves along a predetermined cam profile or track. The cam profile typically has a specially designed contour that imparts linear motion or axial thrust to the follower as it rotates.

Axial Thrust Transmission: Their primary function is to transmit axial thrust loads generated by external forces, allowing for the controlled movement of a mechanism in response to these forces.

Minimal Friction: Thrust disk cam followers are engineered to minimize friction, ensuring smooth and efficient motion. This makes them suitable for applications where precise and low-friction operation is essential.

High Load Capacity: These cam followers are capable of handling high axial thrust loads, making them ideal for applications where heavy loads need to be supported and controlled.

Lubrication: Many thrust disk type cam followers are designed with built-in lubrication mechanisms or grease fittings to reduce wear and extend the operational life of the component.

Variability: There are various design options available to suit specific application requirements. These include different materials, sizes, and configurations, allowing for customisation to fit a wide range of mechanical systems.

Durability: Thrust disk cam followers are typically constructed from high-strength materials, such as hardened steel or stainless steel, to ensure durability and resistance to wear and corrosion.

Easy Installation: These cam followers are designed for straightforward installation, often with the use of standard mounting hardware, which facilitates their integration into various machinery and systems.

Applications for thrust disk type cam followers are diverse and can be found in situations where precise axial motion control and high thrust load-carrying capacity are essential. Examples include conveyor systems, industrial robots, packaging machinery, and automotive applications like clutches and gearboxes.

In summary, thrust disk type cam followers are critical components that provide controlled axial motion and support heavy thrust loads with minimal friction. Their versatility and durability make them integral in many industrial and mechanical systems, contributing to smooth and efficient operation in various applications.
