CF-RU1-6 IKO
Home/Store/Bearings: Efficiency & Performance/Cam Followers (Roller Followers)/Centralised Lubrication Type Cam Followers (CF-RU1 / CF-FU1)
SKU CAM-00244
£25.34
In stock
1
Product Details
Weight: 0.02 kg
[tab name='Specification']
Part Number: CF-RU1-6
Brand: IKO
Bearing Type: Centralised Lubrication Type Cam Follower
Dimension(s):
Stud Diameter (d) = 6mm
Head Diameter (D) = 16mm
Head Length (B) = 12.2mm
Overall Length (B₁) = 28.2mm
Stud Length (B₂) = 16mm
Thread Size (G) = M6 x 1
Greasing Point Thread Size (M₁) = M6 x 0.75
Mounting Dimensions (F) = 11mm
Load Rating(s):
Basic Dynamic Load Rating (N) = 3660
Basic Static Load Rating (N) = 3650
Maximum Allowable Static Load (N) = 1950
Track Capacity (N) = 1040
Alternate Part Number(s):
CFRU1-6
CF RU1-6
[tab name='More Information']

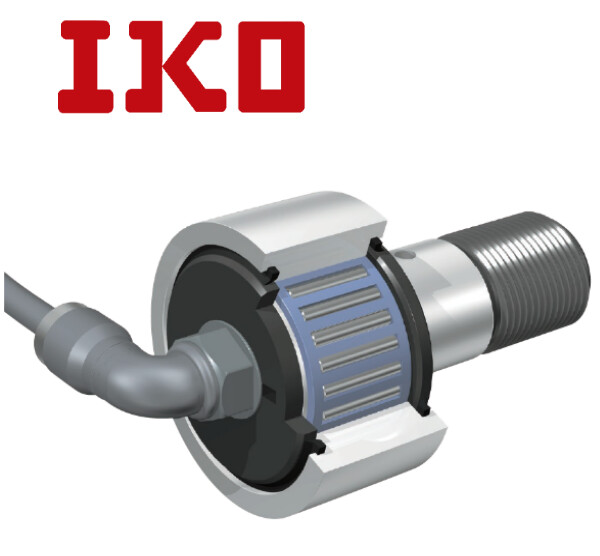

Centralised lubrication type cam followers are specialized mechanical components designed to reduce friction and wear in machinery and equipment that incorporate cam and follower mechanisms. These cam followers are engineered to operate efficiently and reliably in various industrial applications where frequent lubrication is required.
The centralised lubrication system is a key feature of these cam followers. It consists of a central lubrication reservoir or pump that supplies lubricant to multiple cam followers simultaneously, ensuring consistent and precise lubrication to all the critical points of the cam and follower assembly. This system eliminates the need for manual lubrication of individual cam followers, saving time and effort while maintaining optimal lubrication levels.
centralised lubrication type cam followers are typically constructed with a stud or shaft that extends from the follower body. The follower body houses a rolling element, such as a needle roller or ball bearing, which provides smooth and low-friction movement along the cam profile. The central lubrication system delivers lubricant directly to the rolling element or bearing, ensuring a continuous film of lubrication between the cam and follower.
These cam followers are commonly used in various applications, including industrial machinery, automotive engines, printing presses, packaging equipment, and material handling systems. They are particularly advantageous in high-speed and high-load applications, as the centralised lubrication system ensures consistent lubrication even under demanding operating conditions.
The benefits of centralised lubrication type cam followers are numerous. They enhance equipment reliability by reducing friction and wear, extending the service life of the cam and follower components. They also minimise maintenance requirements, as the centralised lubrication system simplifies the lubrication process and eliminates the need for frequent manual interventions. Furthermore, these cam followers contribute to increased operational efficiency and reduced downtime, resulting in enhanced productivity and cost savings for businesses.
Overall, centralised lubrication type cam followers offer a reliable and efficient solution for maintaining proper lubrication in cam and follower systems. By incorporating this design feature, they provide optimal performance, longevity, and ease of maintenance in various industrial applications.
