Dimension(s):
Top Width (D) = 13 mm
Depth (d) = 8 mm
Inside Length (Inches) = 85"
Inside Length (mm) = 2159 mm
Pitch Length (mm) = 2191 mm
Angle = 36°
Operating Temperature: -18°C to +80°C
Alternative Part Number(s):
AX085
AX2191
AX2191 Lp
More Information:

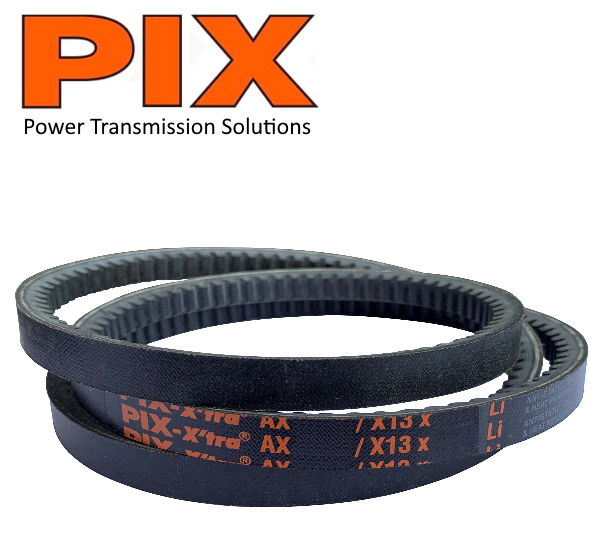

PIX Raw Edge Cogged belts are generally used where high power transmission is required. The teeth on these belts run perpendicular to the length of the belt which reduces bending stress, allows the belt to run cooler, last longer and offers higher range of flexibility.
