Dimension(s):
Top Width (D) = 13 mm
Depth (d) = 8 mm
Inside Length (Inches) = 51.5"
Inside Length (mm) = 1308 mm
Pitch Length (mm) = 1340 mm
Angle = 36°
Operating Temperature: -18°C to +80°C
Alternative Part Number(s):
AX051.5
AX1340
AX1340 Lp
More Information:

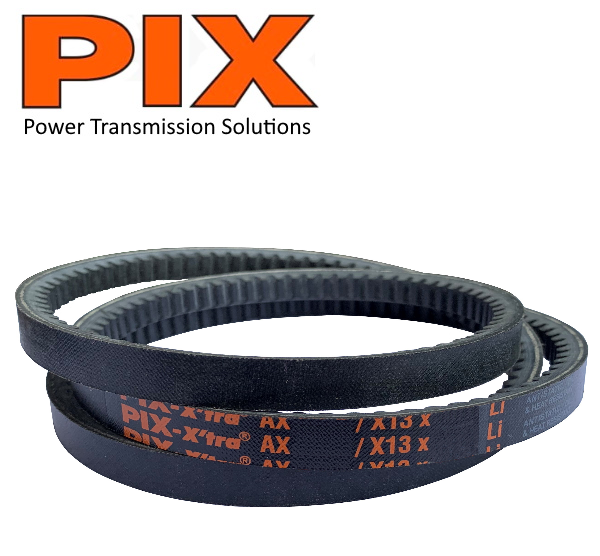

PIX Raw Edge Cogged belts are generally used where high power transmission is required. The teeth on these belts run perpendicular to the length of the belt which reduces bending stress, allows the belt to run cooler, last longer and offers higher range of flexibility.
