Dimension(s):
Top Width (D) = 13 mm
Depth (d) = 8 mm
Inside Length (Inches) = 42"
Inside Length (mm) = 1067 mm
Pitch Length (mm) = 1099 mm
Angle = 36°
Operating Temperature: -18°C to +80°C
Alternative Part Number(s):
AX042
AX1099
AX1099 Lp
More Information:

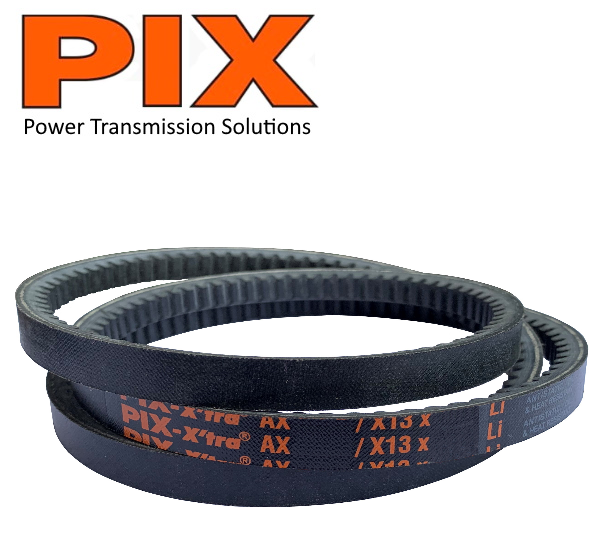

PIX Raw Edge Cogged belts are generally used where high power transmission is required. The teeth on these belts run perpendicular to the length of the belt which reduces bending stress, allows the belt to run cooler, last longer and offers higher range of flexibility.
