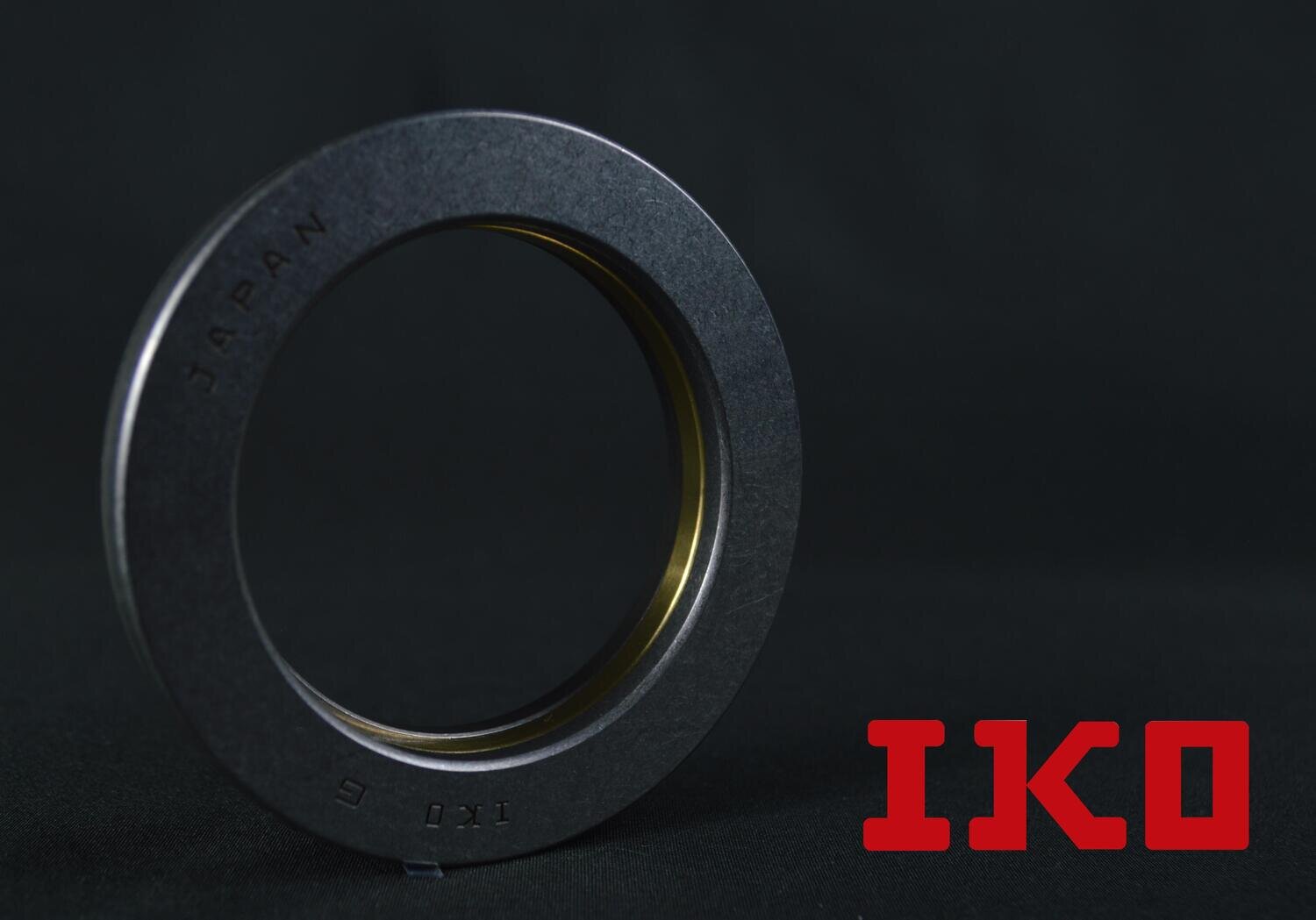

81210 IKO

Part Number: 81210

Brand: IKO

Bearing Type: Thrust Type Roller Bearing

Dimension(s):
Inside Diameter (d) = 50mm
Outside Diameter (D) = 78mm
Combined Height (T) = 22mm
Inside Diameter of Thrust bearing (dc) = 50.05mm
Outside Diameter of Thrust Bearing (Dc) = 77.5mm
Roller Width (Dw) = 11mm
Inner Ring / Outer Ring Width (B) = 5.5mm
Radius (rₛ min) = 1mm

Other Dimension(s):
(Cᵢ) = 55mm
(Cₑ) = 74mm
(dₐ min) = 73mm
(Dₐ max) = 56mm

Load Rating(s):
Basic Dynamic Load Rating (kN) = 84.3
Basic Static Load Rating (kN) = 232

Speed Limitation(s):
Allowable Rotational Speed - Oil Lubrication (r/min) = 4500
Allowable Rotational Speed - Grease Lubrication (r/min) = 1125

Thrust Bearing Reference = K81210
Inner Ring Reference = WS81210
Outer Ring Reference = GS81210

More Information:
In this series, the caged cylindrical rollers AZK and the complete bearings AZ in which AZK are combined with an inner ring (WS) and an outer ring (GS) are available. The cage has a special precise structure which is highly rigid, and cylindrical rollers are outwardly arranged and guided by the cage with exact precision to enable them to withstand heavy loads even at high rotational speeds. Owing to the high accuracy of the bearing height (T Dimension), they are suitable for use in machine tools and ultra-high-pressure pumps. These bearings are generally used by utilizing their inner surface as the guide surface.
